| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | PD-24 |
| Minimum Order Quantity: | 50 Piece/Pieces |
| Price: | Negotiation |
| Packaging Details: | EXPORTING PACKAGE |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Name: | 100a Cut Out Fuse | Usage: | High Voltage |
|---|---|---|---|
| Breaking Capacity: | High | Safety Standards: | IEC |
| Standard: | GB1208-2006 | Rated Voltage: | 24 |
| Mechanical Life: | 10000 | Product Name: | 24KV High Voltage Cutout Fuse Switch |
| High Light: | 300 amp cut out,cut out fuse holder |
||

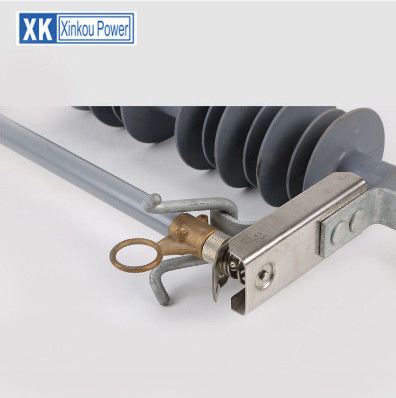

XK hot selling 24KV high voltage porcelain dropout fuse cutout power cutout
Drop Out Fuses are protection devices that protect networks and equipment from current surges and overloads. An overcurrent will melt the fuse element in the carrier disconnecting the line or equipment. They also provide network isolation points when manually operated with a hot stick.
A wide range of drop out fuse units and elements for 11kV, 22kV and 33kV applications including those approved for utility networks in Australia.
| Type | PD-24 | PD-24 |
| Rated Voltage(kV) | 24 | 24 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12,000 |
| Impulse voltage(kV) | 150 | 150 |
| Power frequency wihstand voltage(kV) | 65 | 65 |
| Creepage distance(mm) | 540 | 540 |
| Weight(kg) | 4.5 | 4.5 |
| Dimensions(CM) | 51X34X11.5 | 51X34X11.5 |
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
