| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | ZN63-12KV/630A |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiation |
| Packaging Details: | EXPORTING PACKING |
| Supply Ability: | 100 Piece/Pieces per Month |
| Standard: | GBJ, JB,IEC | Rated Current: | 630A,1250A, 1600A |
|---|---|---|---|
| Rated Voltage: | 12KV | Mechanical Life: | 10000 |
| Port: | NINGBO | ||
| High Light: | vcb circuit breaker,outdoor vcb breaker |
||
A circuit breaker is a device that, interrupts an electric circuit to prevent unwarranted current, caused by a short circuit, typically resulting from an overload. Its basic functionality is to interrupt current flow after a fault is detected. To know more about Circuit breakers read this article Types of Circuit Breaker and Its Importance. A vacuum circuit breaker is a kind of circuit breaker where the arc quenching takes place in vacuum medium. The operation of switching on and closing of current carrying contacts and interrelated arc interruption takes place in a vacuum chamber in the breaker which is called vacuum interrupter.

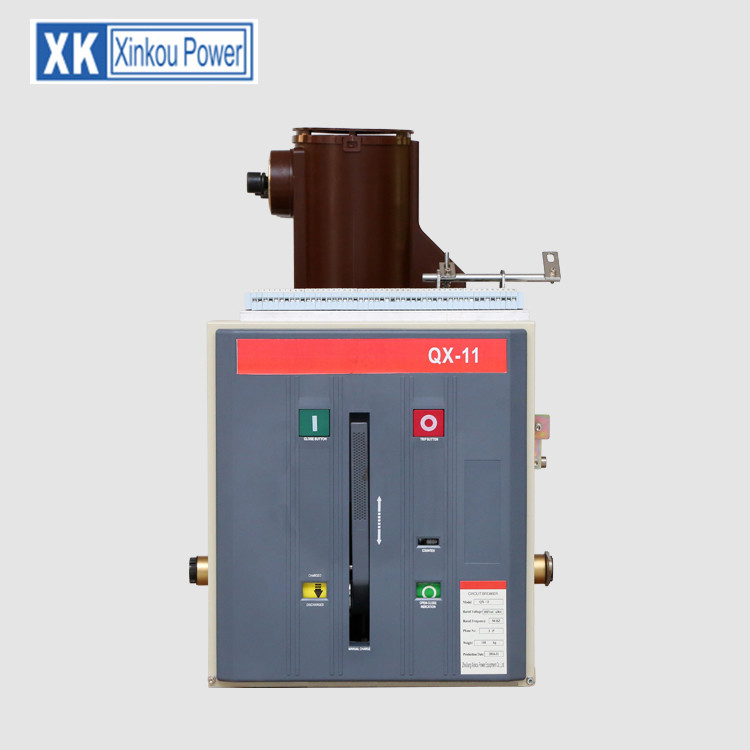

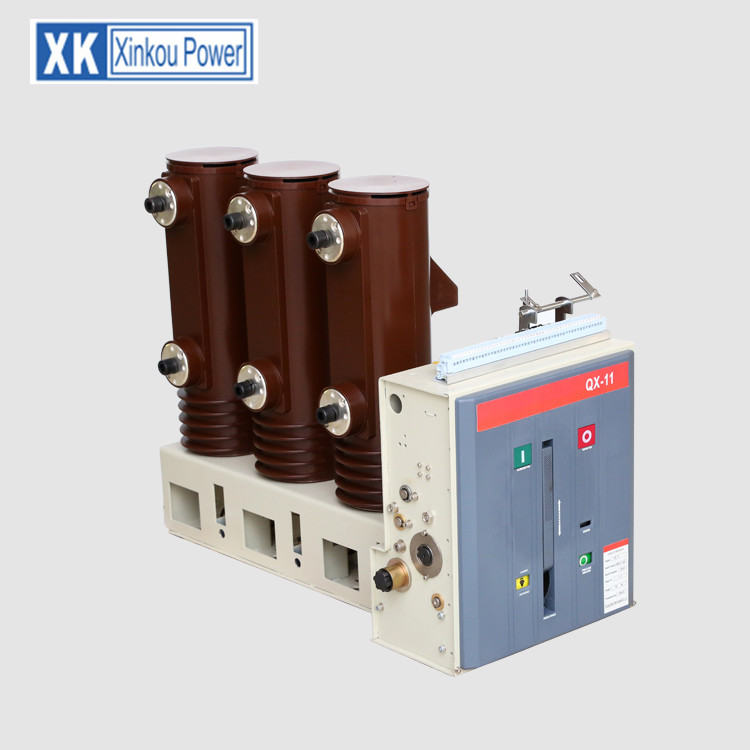

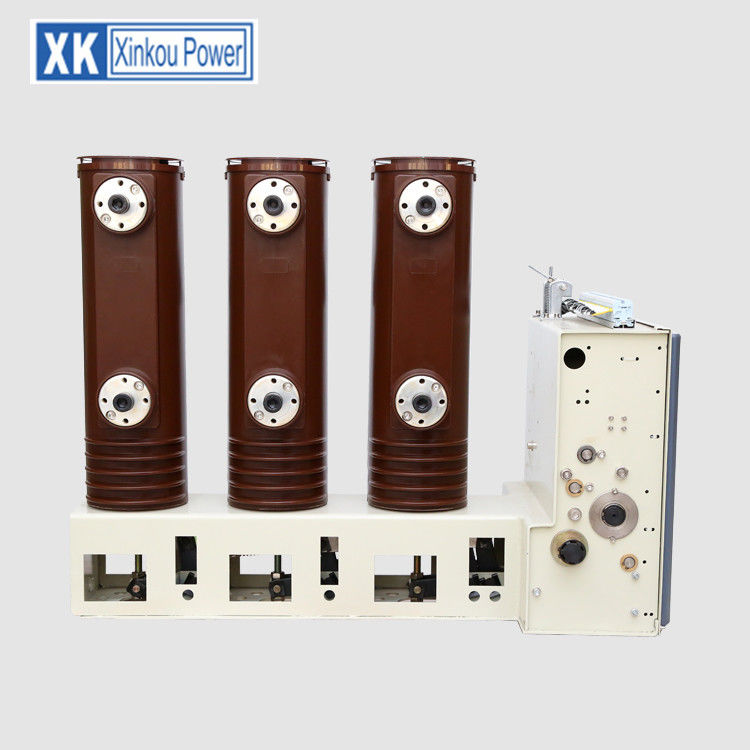

Vacuum Circuit Breaker
The Vacuum interrupter technology was first introduced in the year of 1960. But still, it is a developing technology. As time goes on, the size of the vacuum interrupter has reduced from its early 1960’s size due to different technical developments in this field of engineering.
| Item | Unit | Data | |||
| Rated voltage | KV | 12 | |||
| Maximum working voltage | KV | 12 | |||
| Rated Current | A | 630-1250 | 630-1600 | 630-1600 | |
| Rated short circuit breaking current | KA | 20 | 25 | 31.5 | |
| Rated short-circuit switching current | KA | 50 | 63 | 80 | |
| Rated peak withstand current | KA | 50 | 63 | 80 | |
| 4S rated short-circuit withstand current | KA | 20 | 25 | 31.5 | |
| Rated insulation level | 1min Power frequency withstand voltage | KV | 42(fracture 48) | ||
| lmpulse withstand voltage | KV | 75(fracture 84) | |||
| Rated short-circuit current breaking times | Times | 50 | |||
| Rated Operating Mechanism Closing Voltage(DC) | V | AC,DC 110,220 | |||
| Rated Operating Mechanism Opening Voltage(DC) | V | AC,DC 110,220 | |||
| Contact opening distance | mm | 11±1 | |||
| Overtravel(the length of contact spring compression) | mm | 3.5±0.5 | |||
| Closing/Opening Time Difference Among Three Phase | ms | ≤2 | |||
| Contact closing bounce time | ms | ≤2 | |||
| Average opening speed | m/s | 0.9-1.2 | |||
| Average closing speed | m/s | 0.5-0.8 | |||
| Tripping Time | Maximum operating voltage | S | ≤0.05 | ||
| Minimum operating voltage | S | ≤0.08 | |||
| Closing time | S | 0.1 | |||
| The main circuit resistance of each phase | 630≤50 | 1250≤45 | 1600≤40 | ||
| Allowed Consumpted thickness of Contacts | mm | 3 | |||
