| Place of Origin: | china |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | 11KV DOFC -7225 |
| Minimum Order Quantity: | 300 - 999 Pieces |
| Price: | Negotiation |
| Packaging Details: | EXPORTING PACKAGE |
| Supply Ability: | 100 Piece/Pieces per Month |
| Keywords: | 11kv Fuse/cut Out Fuse | Port: | NINGBO |
|---|---|---|---|
| Standard: | GB1208-2006 | Rated Voltage: | 11kv |
| Mechanical Life: | 10000 | Rated Current: | 100A/200A |
| High Light: | drop out fuse link,100a cut out fuse |
||

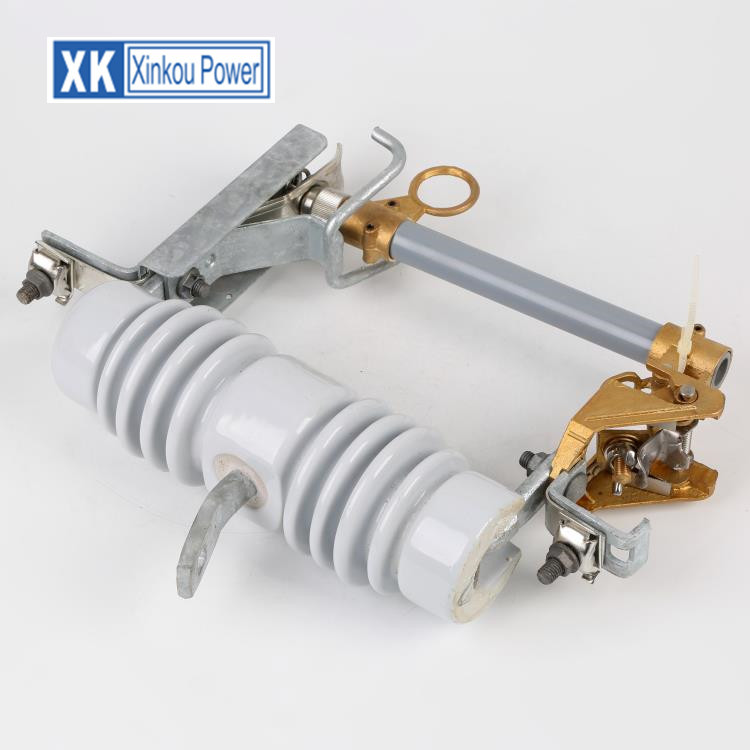

11kv fuse/cut out high voltage fuse 11kv hrc fuse high voltage
dropout fuse is an exclusion type and its main function is to protect Transformers on rural distribution network. It is also particularly useful for untouchable Sub-stations where indication of fusing is of advantage offering a comprehensive range of Drop Out Fuses to our customers, our range Is 11kv drop out fuse,22kv Drop out Fuse 33kv drop out fuse Drop-out Fuse of outdoor used high voltage protective device. To be connected with incoming feeder of distribution transformer of distribution lines it mainly protect transformer or lines from short circuit and overload, and on/off loading current.
| Type | 11KV DOFC/100 | 11KV DOFC/200 |
| Rated Voltage(kV) | 10-15 | 10-15 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12000 |
| Impulse voltage(kV) | 110 | 110 |
| Power frequency wihstand voltage(kV) | 42 | 42 |
| Creepage distance(mm) | 250 | 250 |
| Weight(kg) | 7 | 7 |
| Dimensions(CM) | 38.5*34.5*10.5 | 38.5*34.5*10.5 |
INTRODUCTION
Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.
Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.
SERVICE
We have a very professional sales team which can offer you the best service and answer you very professional questions, so you can feel very comfortable before you buy machine from us. As is known to all of us, after-sale service is the most important to all industries. Our company has been trying our best to build a very professional and high-caliber after-sale service team which can solve all problems efficiently in the future.
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
