| Max. Voltage: | 12KV | Standard: | IEC |
|---|---|---|---|
| Rated Current: | 630A,1250A | Rated Voltage: | 11kv |
| Mechanical Life: | 10000 | Keywords: | 3 Phase Break Switch |
| Port: | NINGBO | ||
| High Light: | load break isolator,load disconnect switch |
||

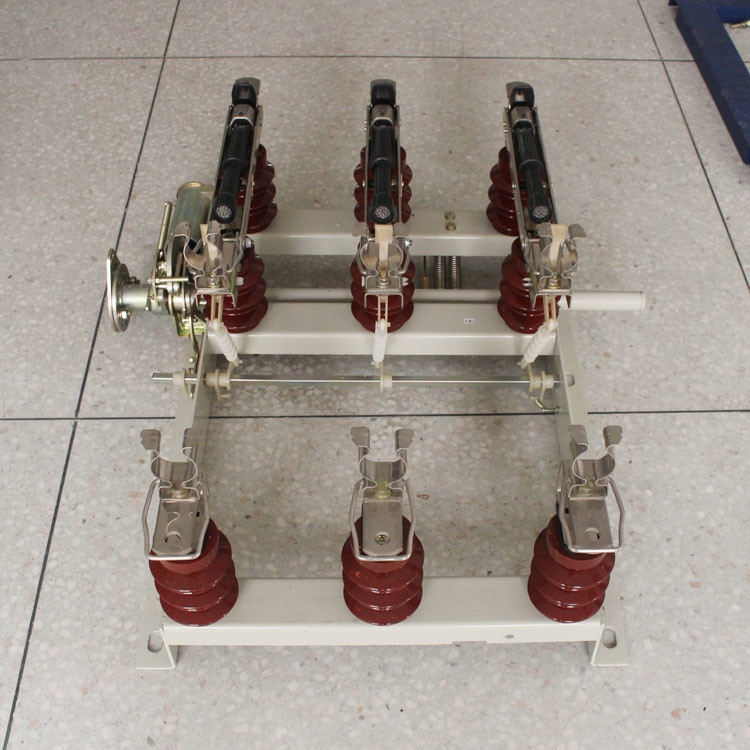

The AC high voltage load break switch is used in indoor or outdoor medium voltage systems at rated frequency 50/60 Hz. The load break switch is generally composed of disconnect blade, arc extinguishing chamber and operating mechanism. The arc extinguishing chamber will be made of insulating material with merits of high dielectric performance, and arc-endurances.
Generally, two types of load break switches (LBS) have been developed namely air-blast and SF6.In air-blast type, the interrupter heads same as those of used for isolation purpose in air-blast circuit breakers are employed for making and breaking currents. In SF6 type LBS, the gas serves as insulating and arc quenching medium.
| ltem | Unit | Data | |
| Rated voltage | KV | FN12-12D/630 | FN12-12(R)D/125 |
| Rated frequency | HZ | 12 | |
| Rated current | A | 50 | |
| 1min power frequency withstand voltage | KV | 42 to ground and phases fracture 48 | |
| Lightning impulse withstand voltage | KV | 75 to ground and phases fracture 85 | |
| Rated thermal stable current | KA |
630
|
100
|
| Rated dynamic stable current | KA |
50
|
|
| Rated switching current(peak) | KA |
50
|
50
|
| Rated short-circuit current(expected) | KV |
31.5
|
|
| Maximum breaking current threshold | HZ | Fuse characteratic curve accorting | |
| Minimum breaking current | A | Fuse characteratic curve accorting | |
| Rated transfer current | KV |
50
|
1.5
|
| Maximum breaking current | KV | 1.8 | |
| Breaking OFF-load transformer capacity | KV/A | 1250 | |
| Rated cable charging current | A | 10 | |
| Rated active load current breaking times | Times | 10000 | |
| Opening time when striker strikes | S | <0.06 | |
| Earth switch thermal current switch | KA | 20(2S) | |
| Thermal stable current of earth switch | KA | 50 | 50 |
| Motor operating power supply voltage | V | AC/DC 110/220 | |
| ltem | Unit | Data | |
| FN12-10D/630 | FN12-10(R)D/125 | ||
| The total traveling distance of moving contact | mm | 200+8-2 | |
| Phase center distance (Before energy storage) | mm | 210±15 | |
| Moving contact overtravel distance | mm | 40±2 | |
| Auxiliary contact opening distance | mm | >150 | |
| Opening/Closing time difference among three phase | ms | <3 | |
| Opening speed | m/s | >2.8 | >2.8 |
| Closing speed | m/s | >3.8 | |
| Distance between metal flexible door and torch | mm | >125 | |
| Fracture distance of earth switch | mm | >150 | |
| Main circuit resistance | Ω | <120 | <300 |
| Maximum operating torque | NM | >160 | |
