12 KV Gapless Lightning Arrester System Support 10ka Polymer Metal Oxide

Basic Information
Place of Origin: CHINA
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: HY10W, HY5W
Minimum Order Quantity: 12 Pieces
Price: Negotiation
Standard: GB11032-2000 Application: Electric Power System
Product Name: Surge Lightning Arrester Product Keywords: Lightning Arrester
Selling Units: Single Item Single Package Size : 43X30X35 Cm
Single Gross Weight: 12.0 Kg Package Type: EXPORTING PACKAGE
High Light:

line surge arrester

,

mov surge arrester

12 KV XK polymer metal oxide gapless surge lightning arrester 10ka lightning arrester

Best selling hot chinese products retractable lifelines


Product Description

Polymer surge arrester is a device to protect electrical equipment from over-voltage transients caused by external (lightning) or internal (switching) events. Also called a surge protection device (SPD) or transient voltage surge suppressor (TVSS), thisclass of device is used to protect equipment in power transmission and distribution systems. (For consumer equipment protection, different products called surge protectors are used.) The energy criterion for various insulation material can be compared by impulse ratio, the surge arrester should have a low impulse ratio, so that a surge incident on the surge arrester may be bypassed, to the ground instead of passing through the apparatus.



 Type

 Rated

 voltage

 (kV)

 MCOV

 (kV)

 Residual voltage (KV)

2000ms square

wave impulse

 current withstand

 4/1OMS high

current impulse

 (kV)



 Steep

 current

 impulse

 switching

 current

 impulse

8/20 ms

 Lightning

 current

 impulse

HY10W-3 3 2.55 9.5 7.7 9 100 100
HY10W-6 6 5.1 19.5 15.4 18 100 100
HY10W-9 9 7.65 28.5 23. 1 27 100 100
HY10W-10 10 8.4 36 30 23 250 150
HY10W-11 11 9.4 40 33 30 250 150
HY10W-12 12 10.2 38.0 30.8 36 200 100
HY10W-15 15 12.7 47.5 38.5 45 200 100
HY10W-18 18 15.3 57.0 46.2 54 200 100
HY10W-21 21 17.0 66.5 53.9 63 200 100
HY10W-24 24 19.2 76.0 61.6 72 200 100
HY10W-27 27 21.9 85.5 69.3 81 200 100
HY10W-30 30 24.2 95.0 76.5 90 200 100
HY10W-33 33 26.8 104.5 84.7 99 400 100
HY10W - 36 36 29 114.0 92.4 108 400 100
HY10W-42 42 34.1 132.3 100. 1 126 400 100
HY10W-48 48 39 152.0 126.0 150 400 100
HY10W-54 54 43 171.0 139.0 162 600 100
HY10W-60 60 48 208.0 160.0 180 600 100
HY10W-66 66 52.8 230.0 172.0 198 600 100

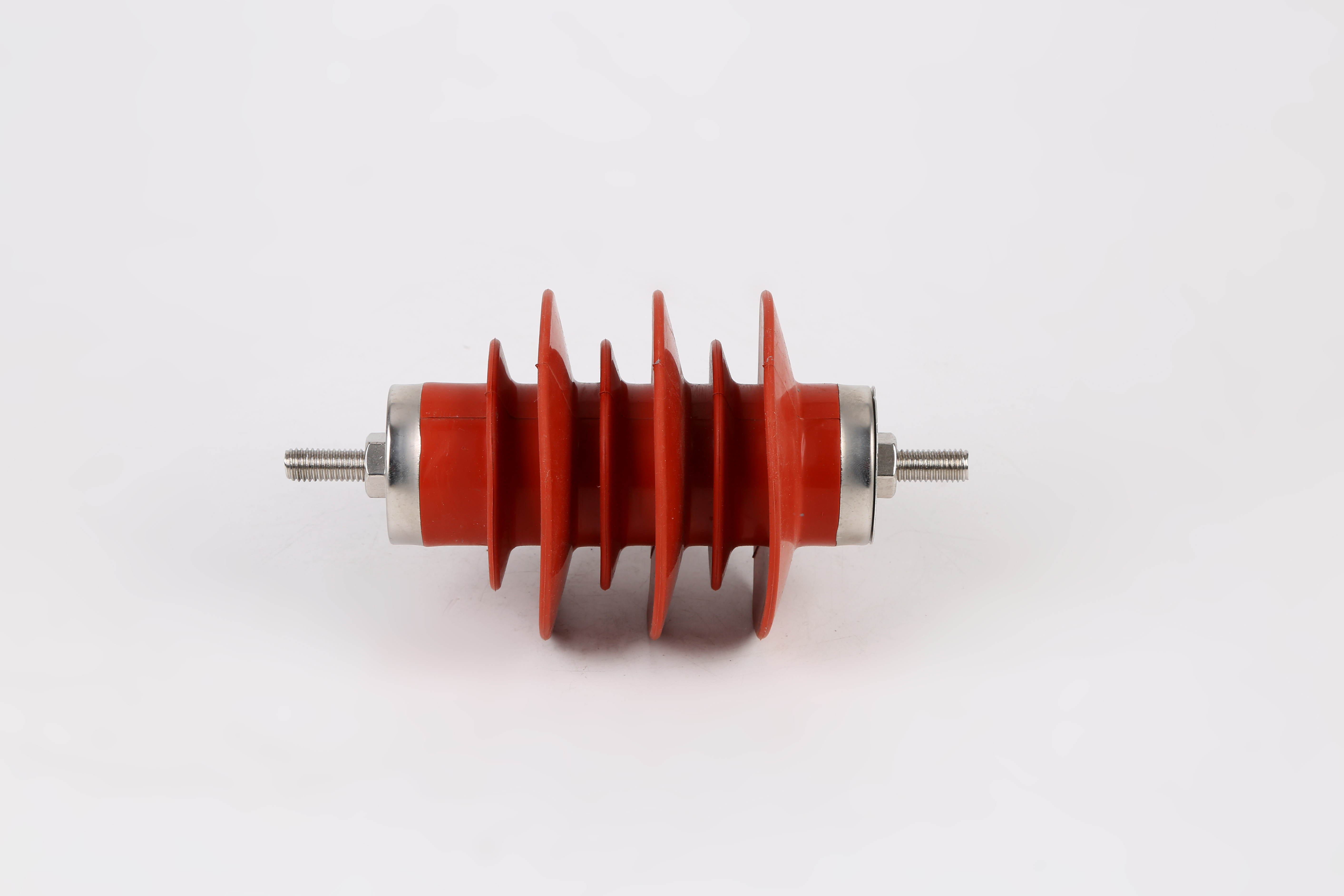

12 KV Gapless Lightning Arrester System Support 10ka Polymer Metal Oxide 0



FAQ


12 KV Gapless Lightning Arrester System Support 10ka Polymer Metal Oxide 1

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
