27kV Lightning Metal Oxide Surge Arrester Polymeric Housing

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO TYPE TEST REPORT
Model Number: 27KV LA
Minimum Order Quantity: 500 - 1499 Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKAGE
Supply Ability: 15000 Piece/Pieces per Month
Standard: IEC60099-4 Application: Power Distribution
Product Name: Lightning Arrester Product Keywords: Zinc Oxide Surge Lightning Arrester
Port: NINGBO
High Light:

Lightning Metal Oxide Surge Arrester

,

27kV Metal Oxide Surge Arrester

,

Polymeric Metal Oxide Surge Arrester

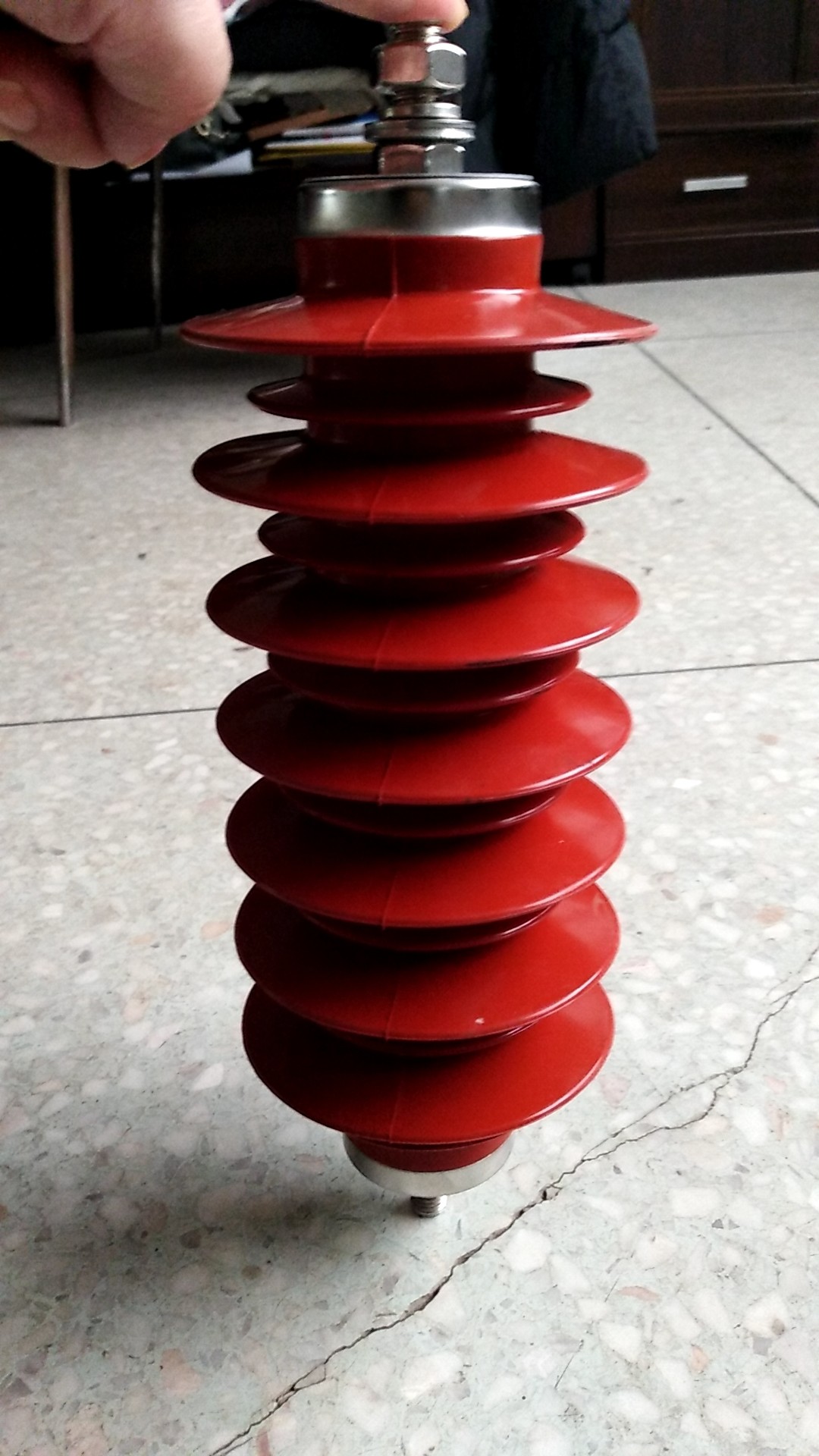

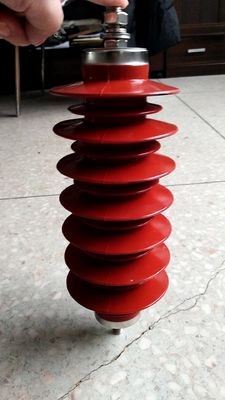

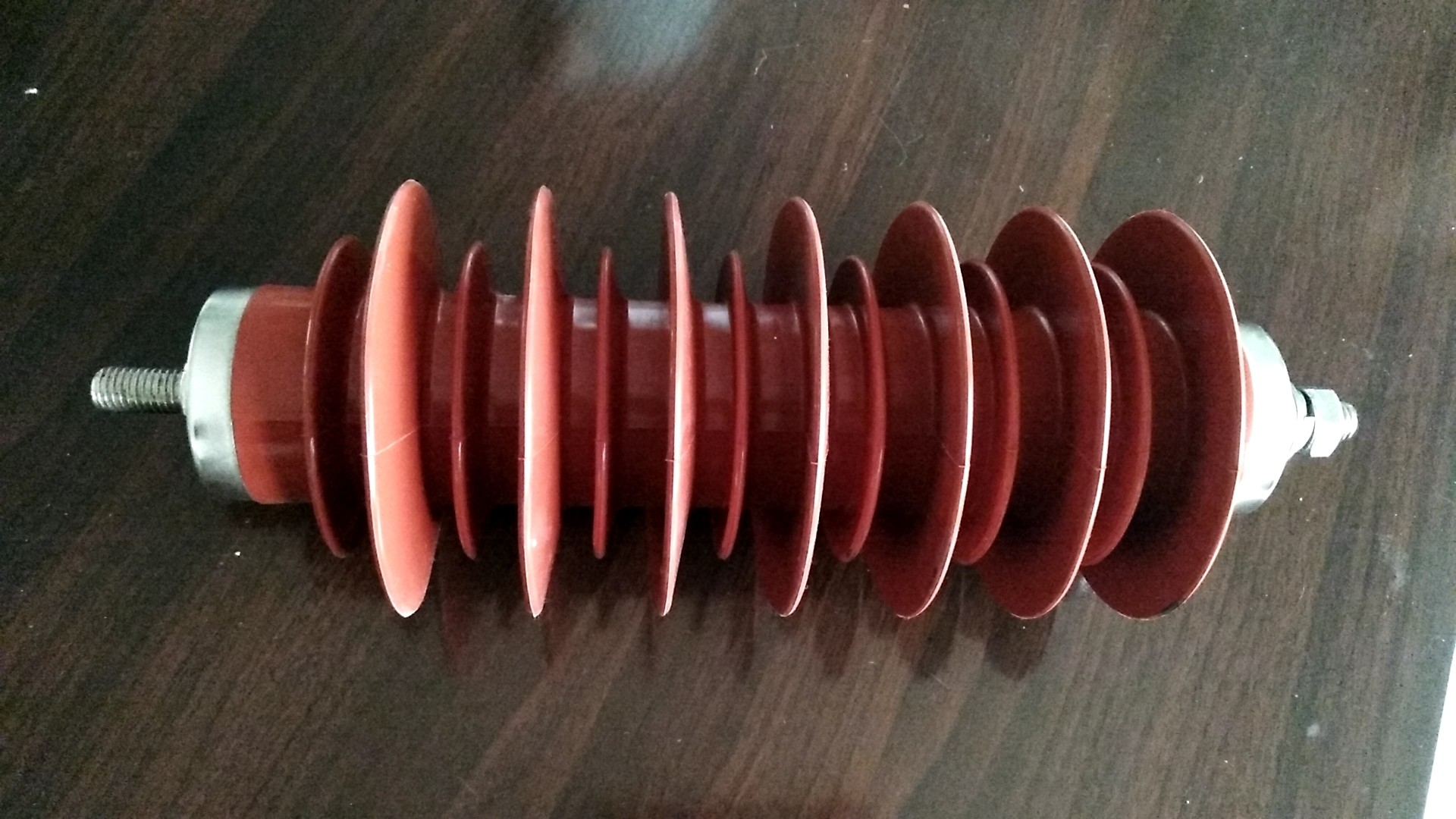

27KV polymer Metal Oxide Lightning Arrester / Distribution Surge Arrester

Standards:IEC 60099-4
ambient condition:
1) The ambient air themperatures is no higher than +40° C, no lower than-40° C.
2) The altitude above sea level dose not exceed 2000m.
3) AC system frequency is 50Hz or 60Hz.
AC voltage brought to bear on arrester for a long time dose not exceed arrester's continuous operating voltage.
4) Maximum wind speed dose not exceed 35m/s.
5) The earthquake intensity dose not exceed 7 degrees.
Technical specification:



Type
Rated
Voltage
Maximun
Continuous
Operating
Voltage
Current impulse residual voltage
2ms Rectangular
current impulse
withstand

4/10µ s High
current impulse
withstand
1/4µ s
Lightning
Current
impulse
8/20µ s
Lightning
current
impulse
30/60µ s
Switching
current
impulse
kV(rms) kV(rms) kV(crest) kV(crest) K kV(crest) A kA(crest)
YH10W-27 27 20 82 72 62 250 100


Company Information


INTRODUCTION



Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.



Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.



SERVICE



We have a very professional sales team which can offer you the best service and answer you very professional questions, so you can feel very comfortable before you buy machine from us. As is known to all of us, after-sale service is the most important to all industries. Our company has been trying our best to build a very professional and high-caliber after-sale service team which can solve all problems efficiently in the future.



FAQ

27kV Lightning Metal Oxide Surge Arrester Polymeric Housing 0

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
