Standard: | GB11032-2000 | Application: | Power Distribution |
---|---|---|---|
Product Name: | Lightning Arrester | Product Keywords: | Zinc Oxide Surge Lightning Arrester |
Keywords: | 27kv Lightning Arrester | Selling Units: | Single Item |
Single Package Size : | 43X30X35 Cm | Single Gross Weight: | 12.000 Kg |
Package Type: | EXPORTING PACKAGE | ||
High Light: | distribution surge arrester,electrical surge arrester |
Type |
Rated voltage (kV) |
MCOV (kV) |
Residual voltage (KV) |
2000ms square wave impulse current withstand |
4/1OMS high current impulse (kV) |
||
Steep current impulse |
switching current impulse |
8/20 ms Lightning current impulse |
|||||
HY10W-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 100 | 100 |
HY10W-6 | 6 | 5.1 | 19.5 | 15.4 | 18 | 100 | 100 |
HY10W-9 | 9 | 7.65 | 28.5 | 23. 1 | 27 | 100 | 100 |
HY10W-10 | 10 | 8.4 | 36 | 30 | 23 | 250 | 150 |
HY10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 150 |
HY10W-12 | 12 | 10.2 | 38.0 | 30.8 | 36 | 200 | 100 |
HY10W-15 | 15 | 12.7 | 47.5 | 38.5 | 45 | 200 | 100 |
HY10W-18 | 18 | 15.3 | 57.0 | 46.2 | 54 | 200 | 100 |
HY10W-21 | 21 | 17.0 | 66.5 | 53.9 | 63 | 200 | 100 |
HY10W-24 | 24 | 19.2 | 76.0 | 61.6 | 72 | 200 | 100 |
HY10W-27 | 27 | 21.9 | 85.5 | 69.3 | 81 | 200 | 100 |
HY10W-30 | 30 | 24.2 | 95.0 | 76.5 | 90 | 200 | 100 |
HY10W-33 | 33 | 26.8 | 104.5 | 84.7 | 99 | 400 | 100 |
HY10W - 36 | 36 | 29 | 114.0 | 92.4 | 108 | 400 | 100 |
HY10W-42 | 42 | 34.1 | 132.3 | 100. 1 | 126 | 400 | 100 |
HY10W-48 | 48 | 39 | 152.0 | 126.0 | 150 | 400 | 100 |
HY10W-54 | 54 | 43 | 171.0 | 139.0 | 162 | 600 | 100 |
HY10W-60 | 60 | 48 | 208.0 | 160.0 | 180 | 600 | 100 |
HY10W-66 | 66 | 52.8 | 230.0 | 172.0 | 198 | 600 | 100 |

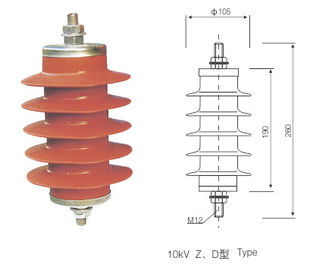

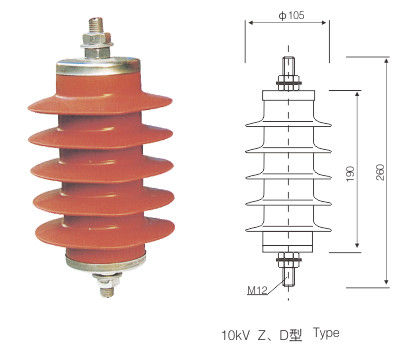

27kv lightning arrester high capacity lightning arrester porcelain zinc oxide surge arrester
INTRODUCTION
Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.
Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.
SERVICE
We have a very professional sales team which can offer you the best service and answer you very professional questions, so you can feel very comfortable before you buy machine from us. As is known to all of us, after-sale service is the most important to all industries. Our company has been trying our best to build a very professional and high-caliber after-sale service team which can solve all problems efficiently in the future.
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory
