| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | 33KV LA |
| Minimum Order Quantity: | 500 - 1499 Pieces |
| Price: | Negotiation |
| Packaging Details: | EXPORTING PACKAGE |
| Supply Ability: | 15000 Piece/Pieces per Month |
| Name: | High Voltage Surge Arrester | Standard: | GB11032-2000, IEC60099 |
|---|---|---|---|
| Application: | Power Distribution | Product Name: | Lightning Arrester |
| Product Keywords: | Zinc Oxide Surge Lightning Arrester | Port: | NINGBO |
| High Light: | gapless type lightning arrester,line type lightning arrester |
||

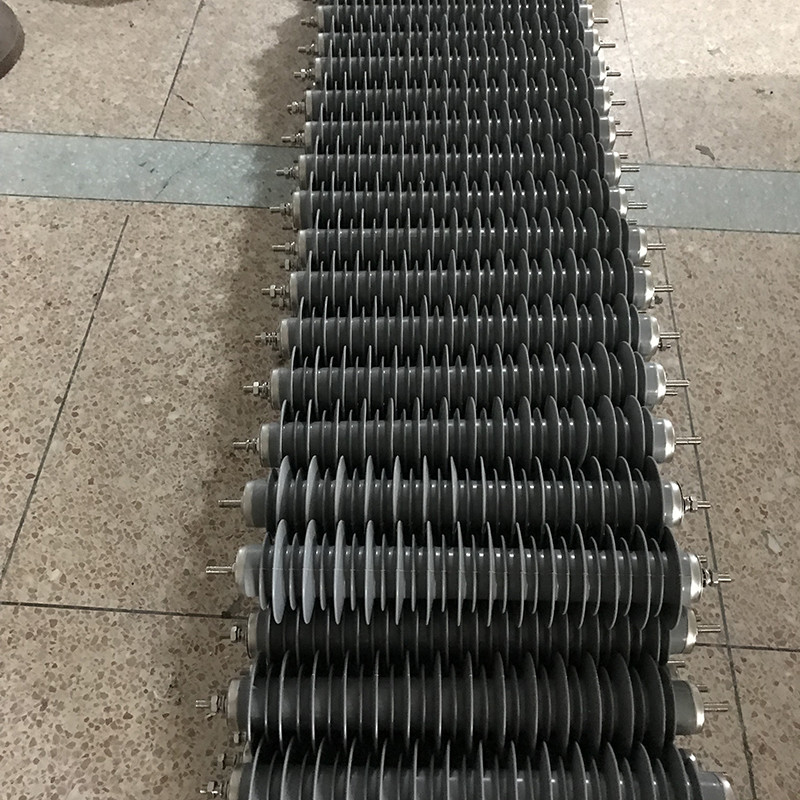

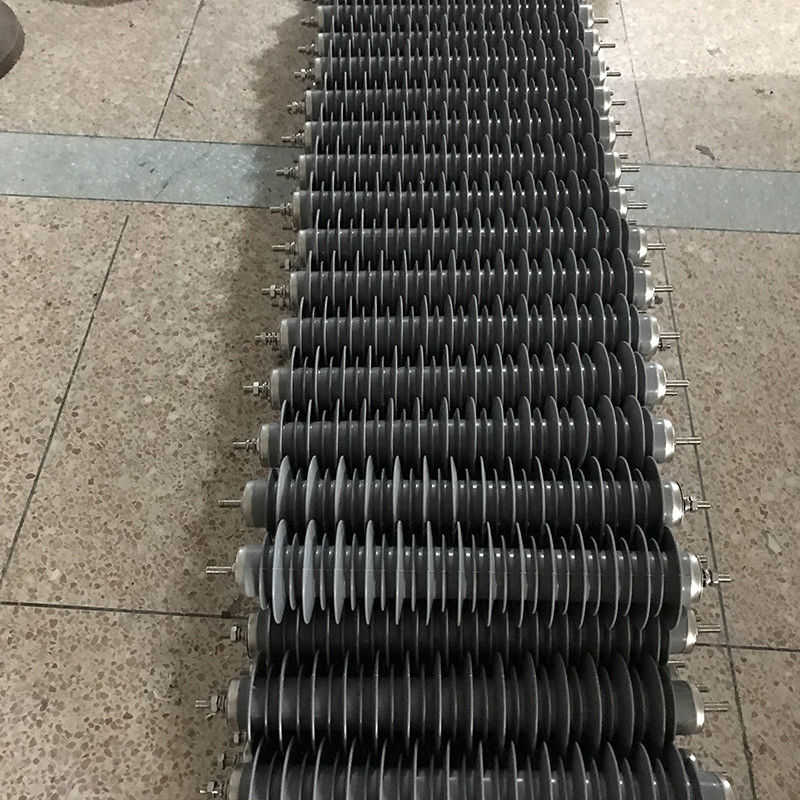

XK 33 kv polymer housed lighting surge arrester
arrestors. It is supplied with a special current clip-on transformer designed for the measurement of current leakage.
On-line diagnostic of metal oxide surge arresters
According to IEC “Diagnostic indicators of metal-oxide surge arresters in service”
Third harmonic analysis of leakage current with compensation
Extensive field experience
Easy, fast and reliable diagnostic method
Safe lightweight equipment
| Type |
Rated voltage (kV) |
MCOV (kV) |
Residual voltage (KV) |
2000ms square wave impulse current withstand |
4/1OMS high current impulse (kV) |
||
|
Steep current impulse |
switching current impulse |
8/20 ms Lightning current impulse |
|||||
| HY10W-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 100 | 100 |
| HY10W-6 | 6 | 5.1 | 19.5 | 15.4 | 18 | 100 | 100 |
| HY10W-9 | 9 | 7.65 | 28.5 | 23. 1 | 27 | 100 | 100 |
| HY10W-10 | 10 | 8.4 | 36 | 30 | 23 | 250 | 150 |
| HY10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 150 |
| HY10W-12 | 12 | 10.2 | 38.0 | 30.8 | 36 | 200 | 100 |
| HY10W-15 | 15 | 12.7 | 47.5 | 38.5 | 45 | 200 | 100 |
| HY10W-18 | 18 | 15.3 | 57.0 | 46.2 | 54 | 200 | 100 |
| HY10W-21 | 21 | 17.0 | 66.5 | 53.9 | 63 | 200 | 100 |
| HY10W-24 | 24 | 19.2 | 76.0 | 61.6 | 72 | 200 | 100 |
| HY10W-27 | 27 | 21.9 | 85.5 | 69.3 | 81 | 200 | 100 |
| HY10W-30 | 30 | 24.2 | 95.0 | 76.5 | 90 | 200 | 100 |
| HY10W-33 | 33 | 26.8 | 104.5 | 84.7 | 99 | 400 | 100 |
| HY10W - 36 | 36 | 29 | 114.0 | 92.4 | 108 | 400 | 100 |
| HY10W-42 | 42 | 34.1 | 132.3 | 100. 1 | 126 | 400 | 100 |
| HY10W-48 | 48 | 39 | 152.0 | 126.0 | 150 | 400 | 100 |
| HY10W-54 | 54 | 43 | 171.0 | 139.0 | 162 | 600 | 100 |
| HY10W-60 | 60 | 48 | 208.0 | 160.0 | 180 | 600 | 100 |
| HY10W-66 | 66 | 52.8 | 230.0 | 172.0 | 198 | 600 | 100 |
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
