| Place of Origin: | CHINA |
|---|---|
| Brand Name: | xk |
| Certification: | TYPE TEST REPORT |
| Model Number: | HGW9-33KV/630A |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | polywood packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, LC |
| Supply Ability: | 1000 set/month |
| Max. Voltage: | 36kv | Max. Current: | 630A |
|---|---|---|---|
| Rated Voltage: | 33KV | Product Name: | Disconnecting Switch, Isolator Switch |
| High Light: | 33KV high voltage load switch,630A hv disconnect switch |
||

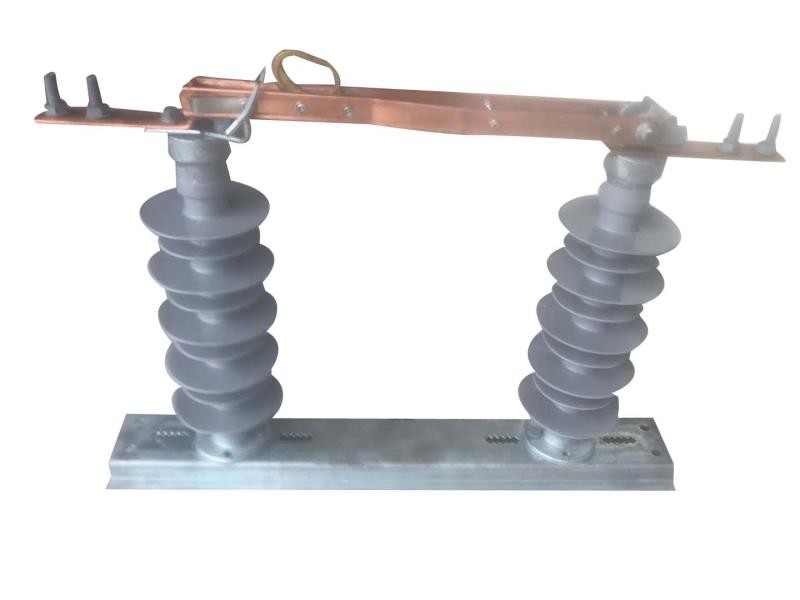

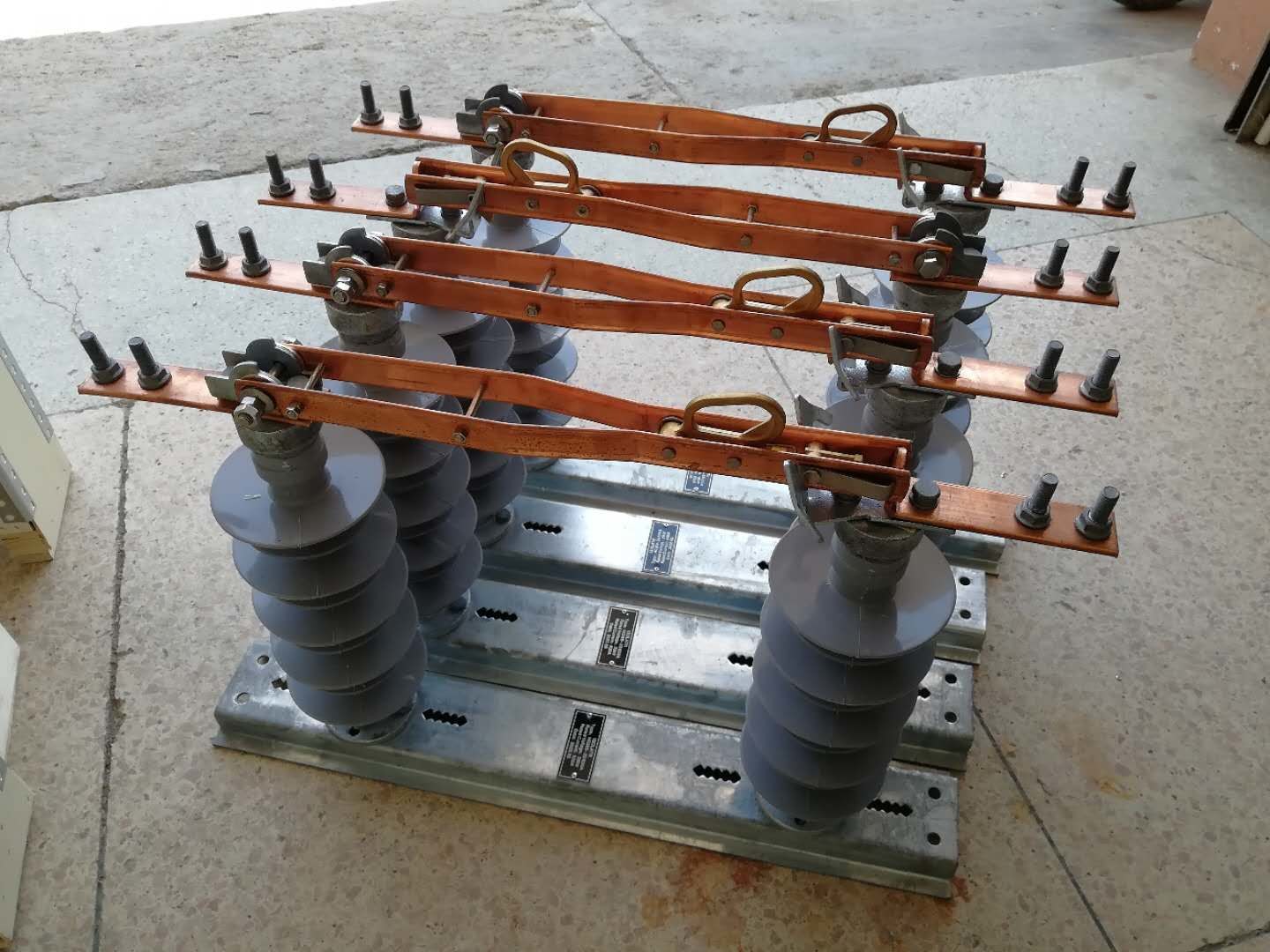

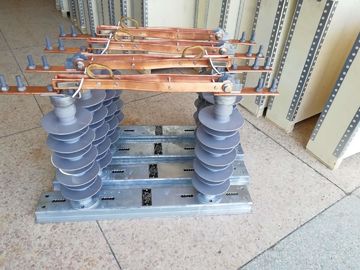

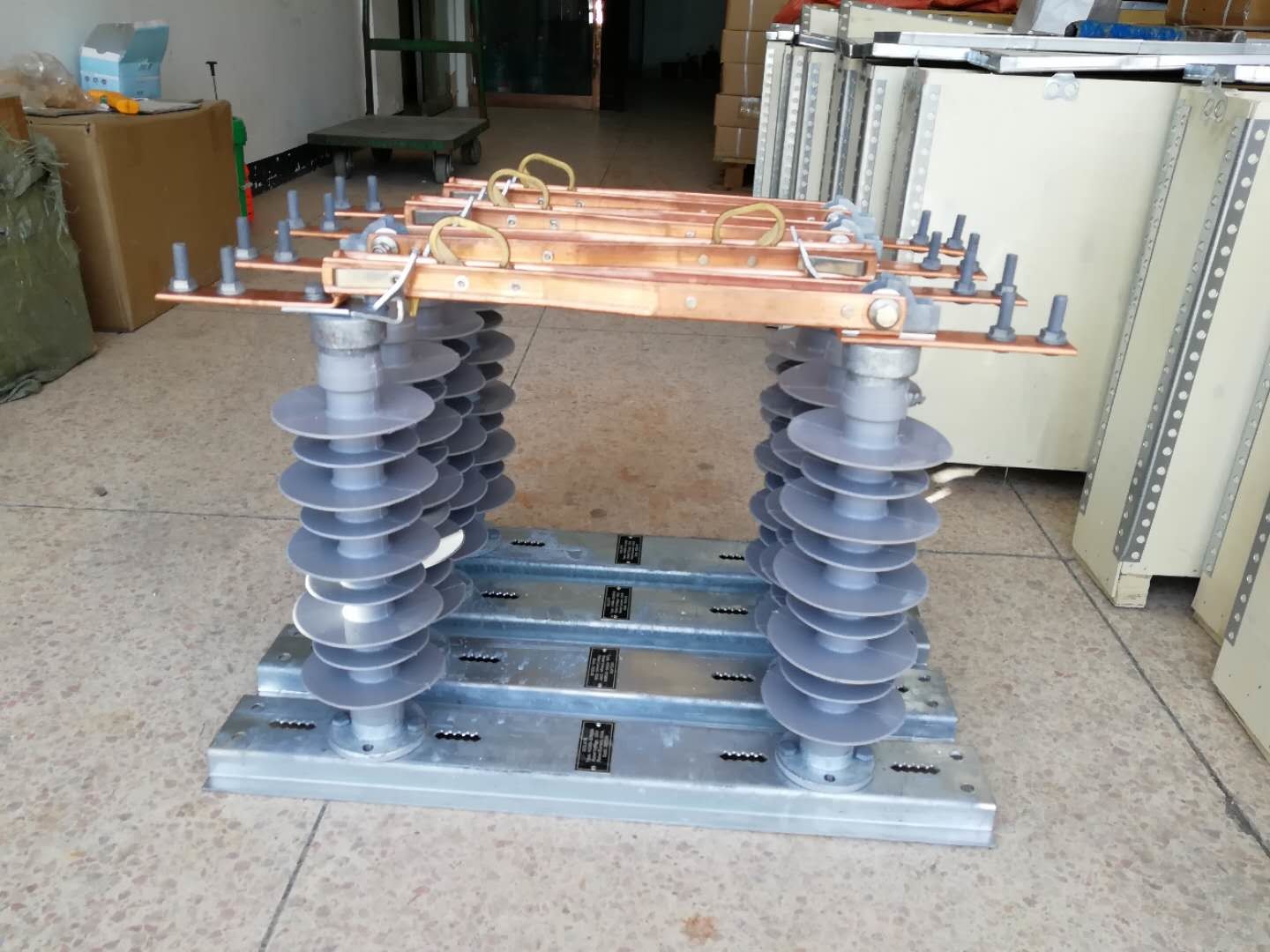

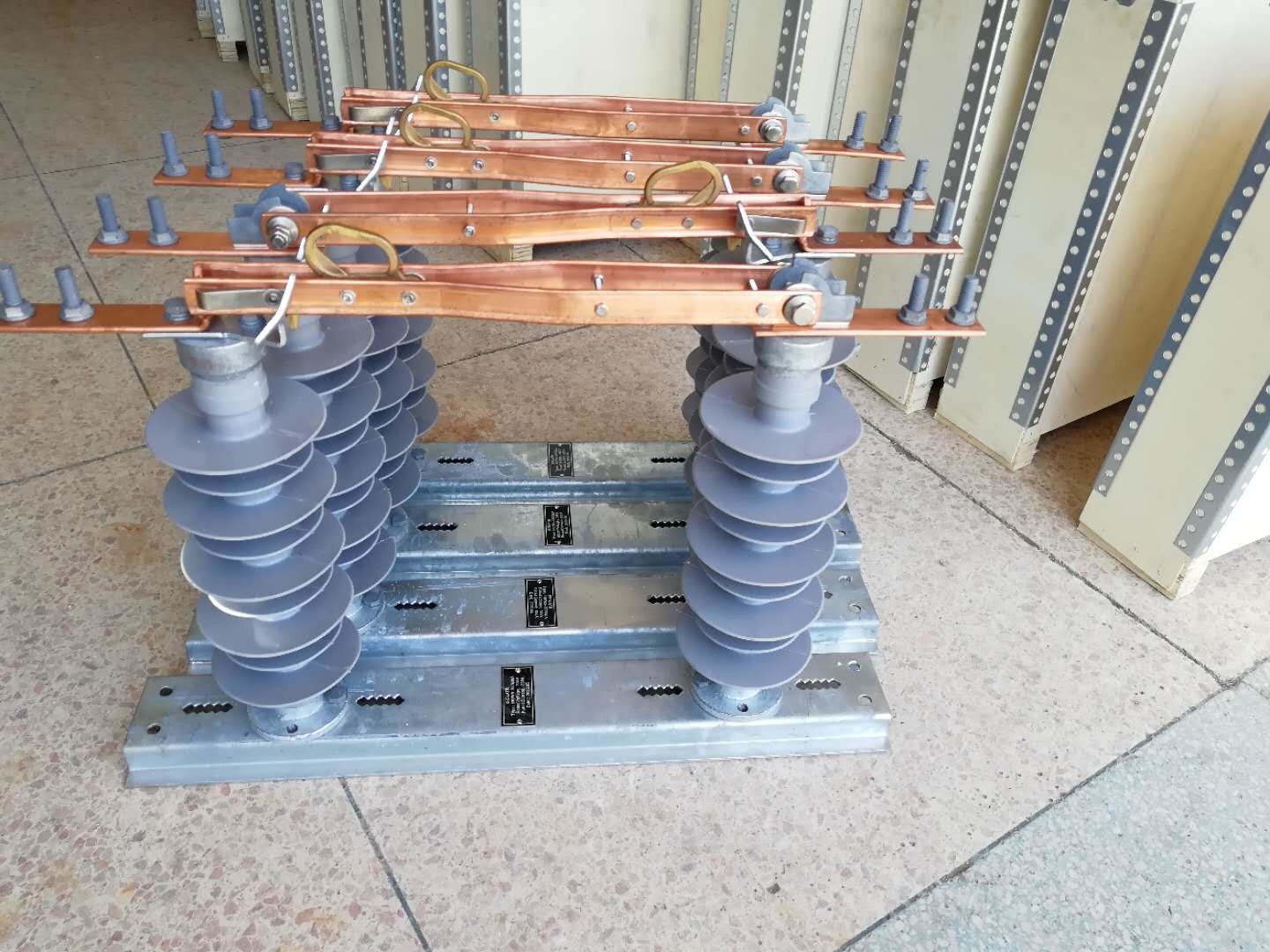

33KV polymer disconnecting switch HGW9-33KV/630A
Advantages:
Maintenance-free contact system without spring elements
Outstanding price-performance ratio
Operational under all severe climatic conditions, including in coastal regions and areas with dramatic temperature differences, high risk of ice formation or strong seismic activity
Type-tested according to IEC
Quality control system certified according to ISO 9001
Delivery of completely routine-tested and pre-adjusted assemblies simplifies setup and commissioning
Life-time technical support and service on short notice
| Item | Unit | Data | ||
| Rated voltage | KV | 40.5/72.5/126 | ||
| Rated lnsulating level |
1min power fequncy voltage withstand |
To earth | KV | 95/140/230 |
| Fracture | KV | 115/160/245 | ||
| lmpulse voltage withstand | To earth | KV | 185/325/550 | |
| Fracture | KV | 215/375/630 | ||
| Rated frequency | HZ | 50 | ||
| Rated current | A | 630/1250/1600/2000 | ||
| Rated short time current withstand | KA | 20/31.5/40/40 | ||
| Rated peak current withstand | KA | 50/80/100/100 | ||
| Rated short circuit cont.current:Mian/earth blade | S | 4/2 | ||
| Rated teminal mechanical load | Vertical | N | 750/1000 | |
| Horizontal | N | 500/750 | ||
| Vertical Force | N | 750/1000 | ||
| Creepage distance | MM | 1013/1256,1813/2248,3150/3906 | ||
| Mechanical life | Times | 2000 | ||
| Manual operating mechanism | Model | CS17,CS17G | ||
| Voltage of control circuit | V | AC220 DC110 DC220 | ||
| Electic operating mechanism | Voltage of motor | V | AC380 DC220 DC220 | |
| Voltage of control circuit | V | AC220 DC110 DC220 | ||
| Rated volt | A | A1 | H | E | C | D |
| 40.5 | 1200 | 1075 | 1070 | 1400 | 240 | 300 |
| 72.5 | 1600 | 1285 | 1295 | 2200 | 240 | 300 |
| 126 | 2000 | 1660 | 1695 | 3000 | 240 | 300 |
