36kv Polymeric Surge Arrester For Power Distribution Line

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: HY10W
Minimum Order Quantity: 3 Pieces
Price: Negotiation
Packaging Details: exporting packing
Standard: IEC 60099 Application: Power Distribution
Product Name: Lightning Arrester Product Keywords: Zinc Oxide Surge Lightning Arrester
Keywords: Power Distribution Line Lightning Arrester Package Type: EXPORTING PACKAGE
High Light:

36kv polymer surge arrester

,

Distribution metal oxide surge arrester

36kv polymeric Surge Arrester lightning arrester for power distribution line

XK 36kv Polymer surge arrester




Product Description

Metal oxide surge arrester models that are currently on rounds suffer from certain deficiencies and as a consequence, they are not in position to portray accurately the arrester residual voltages. This drawback is mainly attributed to their inherent features. The prevailing pressing need demands accurate performance assessment of zinc oxide arrester under all types of overvoltages including very fast transient overvoltages (VFTOs). So immediate corrective measures like the formation of a new arrester model or rejig of the existing one are urgently warranted. This issue constitutes the centre piece/core of this study. In consideration of its various merits, which includes its capacity to bring out the virtual representation of arrester activities, electromagnetic transient programme software has been chosen for this study. With its aid, the arrester model recommended by IEEE Working Group has been aptly reshaped to suit the needs of VFTOs studies. The end results of the simulations thus carried out have clearly established its suitability for the studies involving nanosecond waves; additionally, it got its validation and endorsement from the test data obtained from different arrester manufacturers. The commendable endorsements got from these studies shed clear light on it. All these aspects are dealt with this work.
Company Information


INTRODUCTION



Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.



Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.



SERVICE



We have a very professional sales team which can offer you the best service and answer you very professional questions, so you can feel very comfortable before you buy machine from us. As is known to all of us, after-sale service is the most important to all industries. Our company has been trying our best to build a very professional and high-caliber after-sale service team which can solve all problems efficiently in the future.



 Type

 Rated

 voltage

 (kV)

 MCOV

 (kV)

 Residual voltage (KV)

2000ms square

wave impulse

 current withstand

 4/1OMS high

current impulse

 (kV)



 Steep

 current

 impulse

 switching

 current

 impulse

8/20 ms

 Lightning

 current

 impulse

HY10W-3 3 2.55 9.5 7.7 9 100 100
HY10W-6 6 5.1 19.5 15.4 18 100 100
HY10W-9 9 7.65 28.5 23. 1 27 100 100
HY10W-10 10 8.4 36 30 23 250 150
HY10W-11 11 9.4 40 33 30 250 150
HY10W-12 12 10.2 38.0 30.8 36 200 100
HY10W-15 15 12.7 47.5 38.5 45 200 100
HY10W-18 18 15.3 57.0 46.2 54 200 100
HY10W-21 21 17.0 66.5 53.9 63 200 100
HY10W-24 24 19.2 76.0 61.6 72 200 100
HY10W-27 27 21.9 85.5 69.3 81 200 100
HY10W-30 30 24.2 95.0 76.5 90 200 100
HY10W-33 33 26.8 104.5 84.7 99 400 100
HY10W - 36 36 29 114.0 92.4 108 400 100
HY10W-42 42 34.1 132.3 100. 1 126 400 100
HY10W-48 48 39 152.0 126.0 150 400 100
HY10W-54 54 43 171.0 139.0 162 600 100
HY10W-60 60 48 208.0 160.0 180 600 100
HY10W-66 66 52.8 230.0 172.0 198 600 100

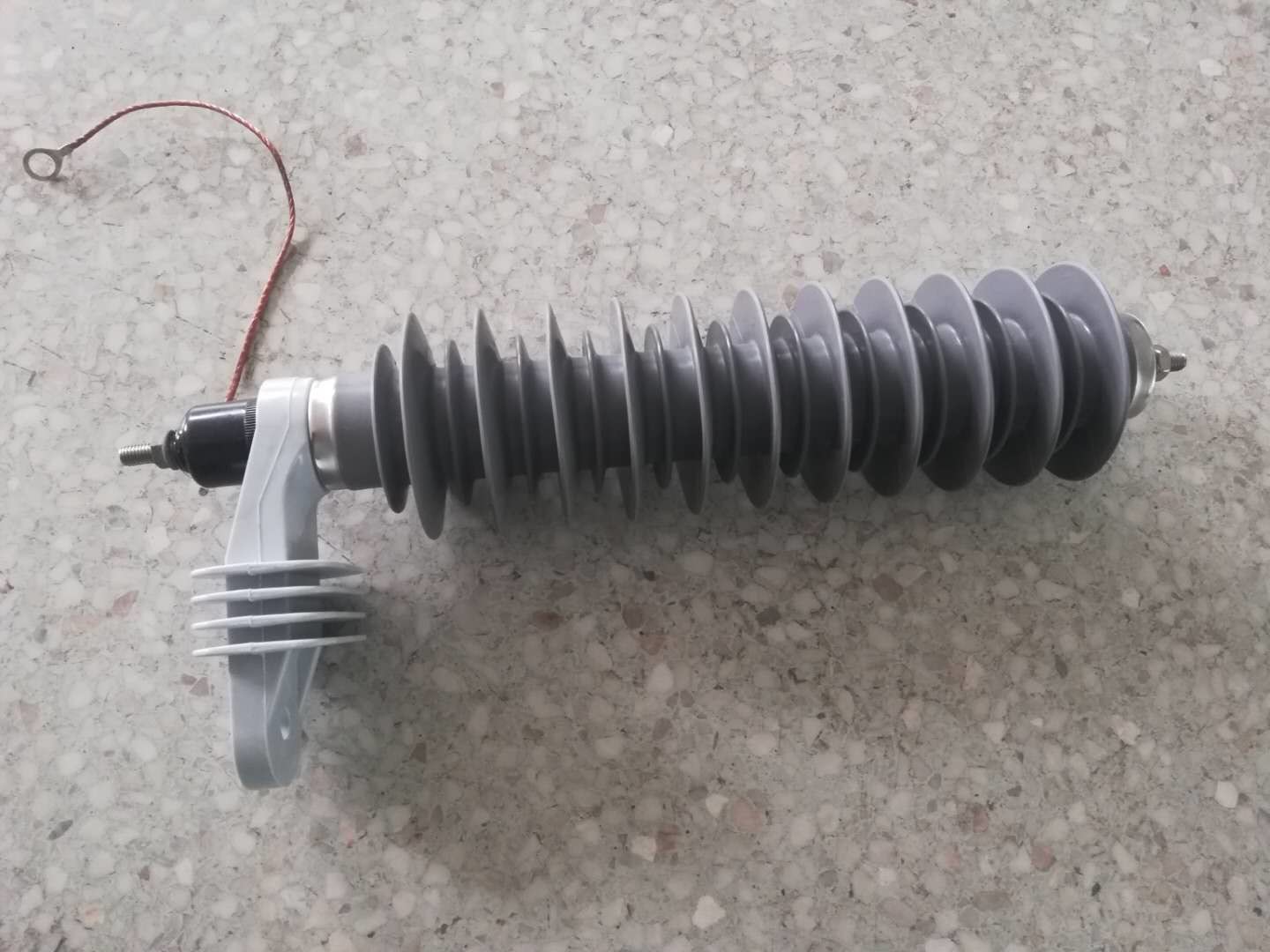

36kv Polymeric Surge Arrester For Power Distribution Line 0

XK 36kv Polymeric surge arrester









FAQ

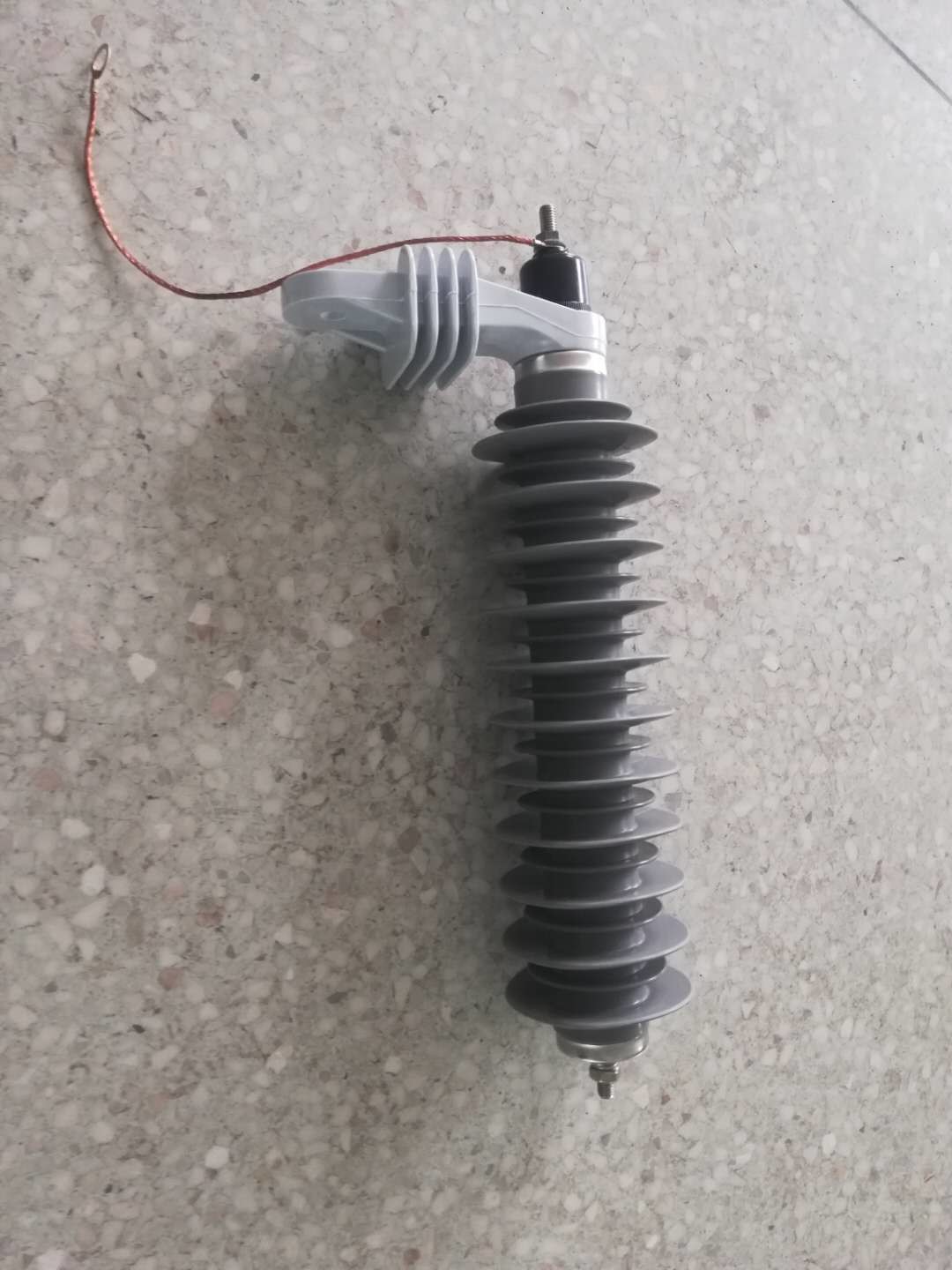

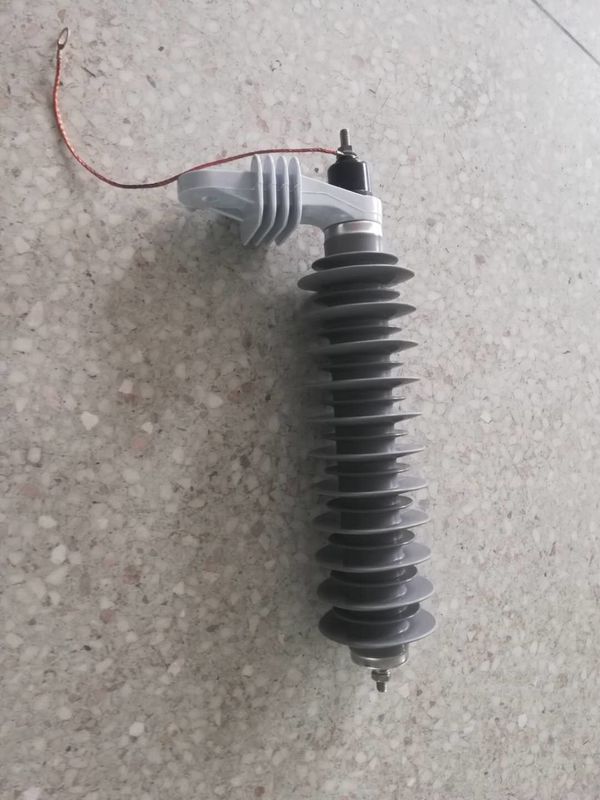

36kv Polymeric Surge Arrester For Power Distribution Line 1

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
