| Place of Origin: | CHINA |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | Y5WS |
| Minimum Order Quantity: | 1 PC |
| Price: | Negotiation |
| Packaging Details: | carton |
| Supply Ability: | 10000 PCS/Month |
| Usage: | High Voltage | Breaking Capacity: | High |
|---|---|---|---|
| Application: | Outdoor Distribution Line | Rated Current: | 5KA |
| Rated Voltage: | 10-15KV | Material: | Porcelain |
| Color: | White | Standard: | IEC60099-4 |
| Creepage Distance: | 31mm/KV | Oem: | Available |
| High Light: | 5KA Gapless Lightning Arrester,11KV Porcelain Surge Arrester,AC Porcelain Surge Arrester |
||

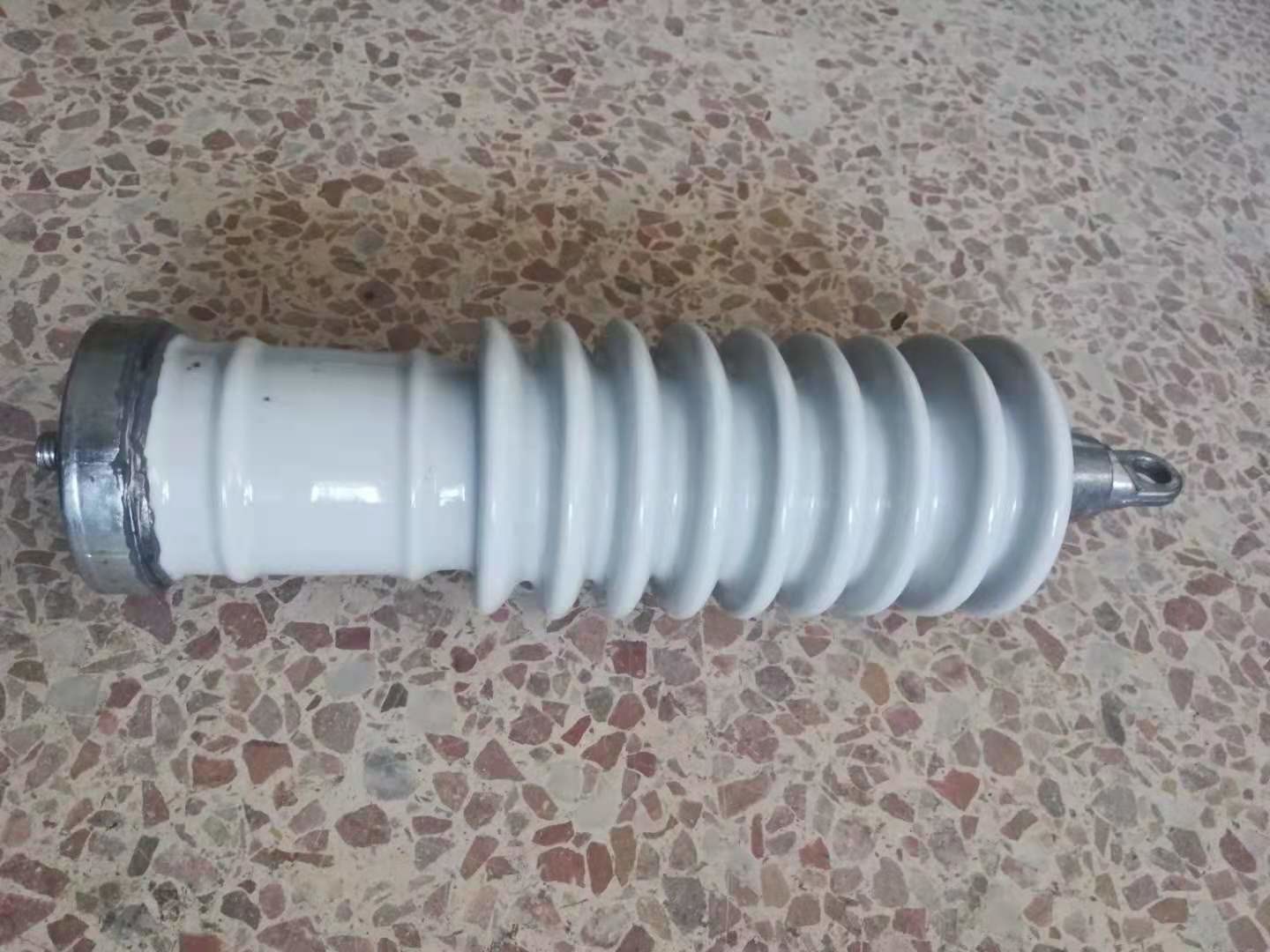

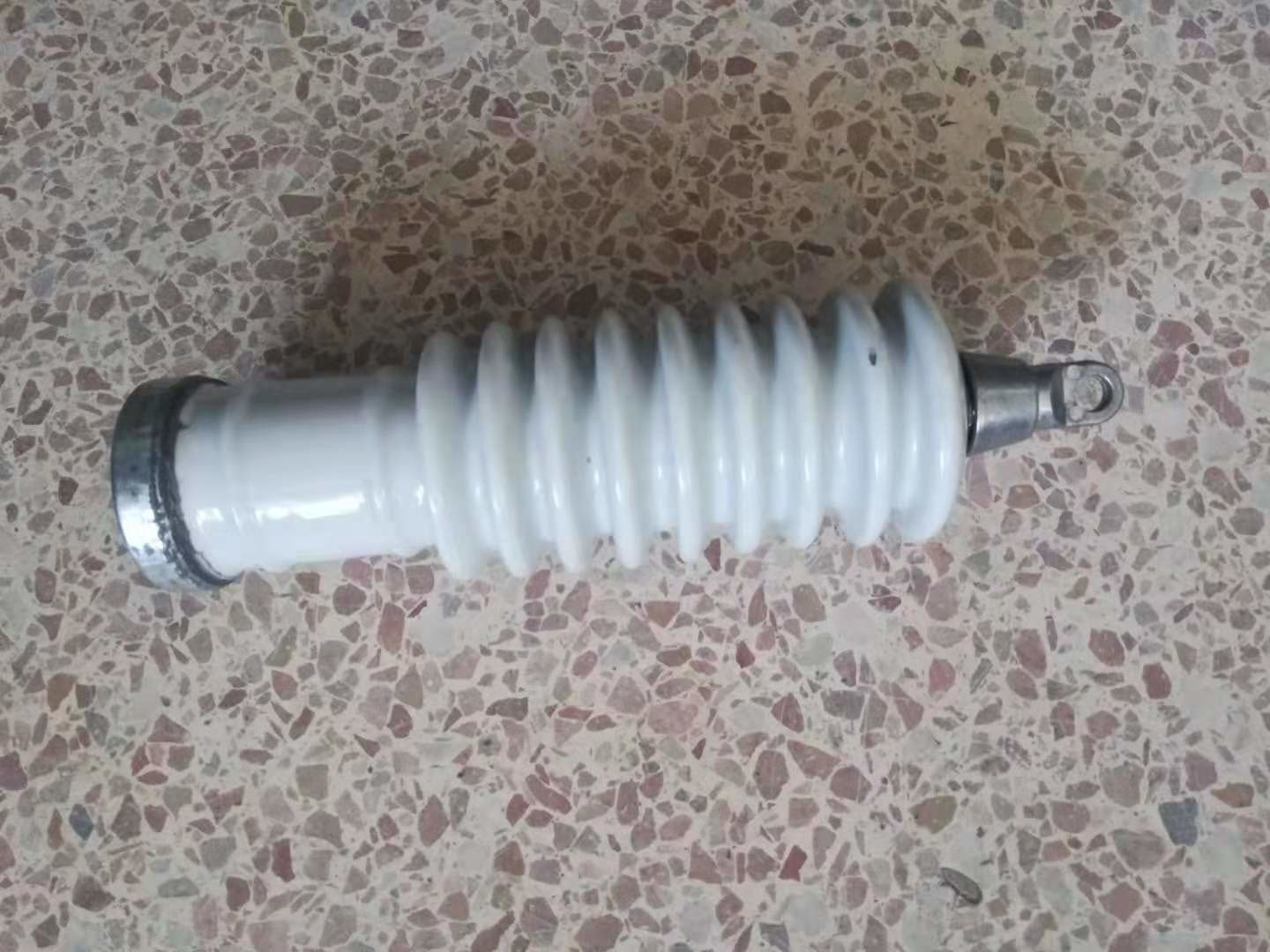

Porcelain material Surge Arrester IEC 60099 standard lightning arrester 11KV Y5WS type For Outdoor Distribution Line
15KV porcelain type surge arrester Y5WS
Standards:IEC 60099-4
ambient condition:
1) The ambient air themperatures is no higher than +40° C, no lower than-40° C.
2) The altitude above sea level dose not exceed 2000m.
3) AC system frequency is 50Hz or 60Hz.
AC voltage brought to bear on arrester for a long time dose not exceed arrester's continuous operating voltage.
4) Maximum wind speed dose not exceed 35m/s.
5)The earthquake intensity dose not exceed 7 degrees.
Technical specification:
| lightning arrester product parameters | |||||||
| Type | Rated voltage | Continuous | 1/4Steep | 8/20ms | 30/60Switching | 2000μs Rectangular | 4/10Current |
| (kV) | operating | current | Lightning | current | wave | withstand | |
| voltage | residual | current | residual | current | discharge | ||
| (kV≥) | voltage | residual | voltage | impulse(A) | capacity | ||
| (kV≤) | voltage | (kV≤) | (kA) | ||||
| (kV≤) | |||||||
| HY5W-3 | 3 | 2.55 | 9.5 | 9 | 7.7 | 100 | 65 |
| HY5W-6 | 6 | 5.1 | 19 | 18 | 15.4 | ||
| HY5W-9 | 9 | 7.65 | 28.5 | 27 | 23.1 | ||
| HY5W-10 | 10 | 8.4 | 36 | 23 | 30 | ||
| HY5W-11 | 11 | 9.4 | 40 | 30 | 33 | ||
| HY5W-12 | 12 | 10.2 | 38 | 36 | 30.8 | ||
| HY5W-15 | 15 | 12.7 | 47.5 | 45 | 38.5 | ||
| HY5W-18 | 18 | 15.3 | 57 | 54 | 46.2 | ||
| HY5W-21 | 21 | 17 | 66.5 | 63 | 53.9 | ||
| HY5W-24 | 24 | 19.2 | 76 | 72 | 61.6 | ||
| HY5W-27 | 27 | 21.9 | 85.5 | 81 | 69.3 | ||
| HY5W-30 | 30 | 24.4 | 95 | 90 | 76.5 | ||
| HY5W-33 | 33 | 26.8 | 104.5 | 99 | 84.7 | ||
| HY5W-36 | 36 | 29 | 114 | 108 | 92.4 | ||
| HY5W-42 | 42 | 34.1 | 132.3 | 126 | 100.1 | ||
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
