Max. Current: | 1250A | Max. Voltage: | 12KV |
---|---|---|---|
Standard: | IEC | Rated Current: | 630A,1250A |
Rated Voltage: | 12KV | Mechanical Life: | 10000 |
Port: | NINGBO | ||
High Light: | load break isolator,load disconnect switch |

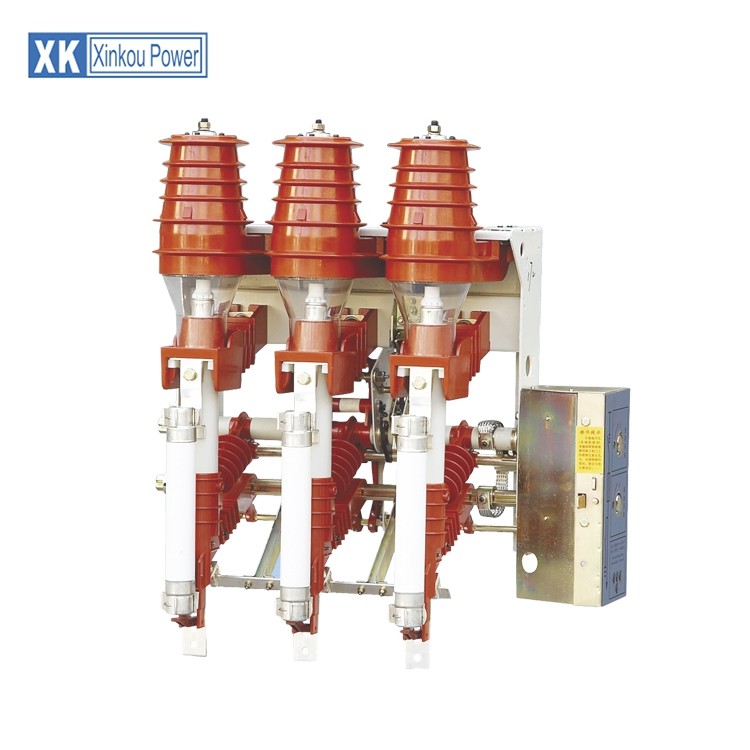

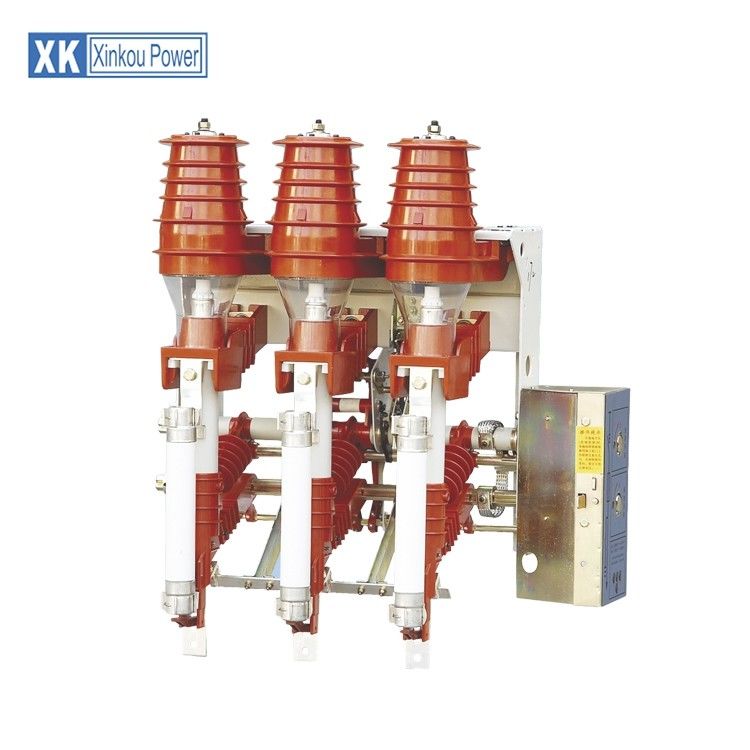

load break switches: what are they for?
Load break switches are devices used to open an electrical circuit by isolating the source from the consumer. Whether they are manual, motorised or with a trip function, these devices ensure the on-load making, breaking and safety disconnection of low-voltage electrical circuits. Easy to assemble and easy to use, they are suitable for structures evolving in the industrial sector, public distribution, as well as emergency switching, distribution panels and motor feeders.
ltem | Unit | Data | |
Rated voltage | KV | FN12-12D/630 | FN12-12(R)D/125 |
Rated frequency | HZ | 12 | |
Rated current | A | 50 | |
1min power frequency withstand voltage | KV | 42 to ground and phases fracture 48 | |
Lightning impulse withstand voltage | KV | 75 to ground and phases fracture 85 | |
Rated thermal stable current | KA |
630
|
100
|
Rated dynamic stable current | KA |
50
|
|
Rated switching current(peak) | KA |
50
|
50
|
Rated short-circuit current(expected) | KV |
31.5
|
|
Maximum breaking current threshold | HZ | Fuse characteratic curve accorting | |
Minimum breaking current | A | Fuse characteratic curve accorting | |
Rated transfer current | KV |
50
|
1.5
|
Maximum breaking current | KV | 1.8 | |
Breaking OFF-load transformer capacity | KV/A | 1250 | |
Rated cable charging current | A | 10 | |
Rated active load current breaking times | Times | 10000 | |
Opening time when striker strikes | S | <0.06 | |
Earth switch thermal current switch | KA | 20(2S) | |
Thermal stable current of earth switch | KA | 50 | 50 |
Motor operating power supply voltage | V | AC/DC 110/220 |
ltem | Unit | Data | |
FN12-10D/630 | FN12-10(R)D/125 | ||
The total traveling distance of moving contact | mm | 200+8-2 | |
Phase center distance (Before energy storage) | mm | 210±15 | |
Moving contact overtravel distance | mm | 40±2 | |
Auxiliary contact opening distance | mm | >150 | |
Opening/Closing time difference among three phase | ms | <3 | |
Opening speed | m/s | >2.8 | >2.8 |
Closing speed | m/s | >3.8 | |
Distance between metal flexible door and torch | mm | >125 | |
Fracture distance of earth switch | mm | >150 | |
Main circuit resistance | Ω | <120 | <300 |
Maximum operating torque | NM | >160 |
