| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | HY5W-2813 |
| Minimum Order Quantity: | 12 Pieces |
| Price: | Negotiation |
| Product Keywords: | Zinc Oxide Surge Lightning Arrester | Keywords: | 15kv Lightning Arrester |
|---|---|---|---|
| Selling Units: | Single Item | Single Package Size : | 43X30X35 Cm |
| Single Gross Weight: | 12.000 Kg | Package Type: | EXPORTING PACKAGE |
| High Light: | 11kv surge arrester,distribution surge arrester |
||
We have a very professional sales team which can offer you the best service and answer you very professional questions, so you can feel very comfortable before you buy machine from us. As is known to all of us, after-sale service is the most important to all industries. Our company has been trying our best to build a very professional and high-caliber after-sale service team which can solve all problems efficiently in the future.
| Type |
Rated voltage (kV) |
MCOV (kV) |
Residual voltage (KV) |
2000ms square wave impulse current withstand |
4/1OMS high current impulse (kV) |
||
|
Steep current impulse |
switching current impulse |
8/20 ms Lightning current impulse |
|||||
| HY10W-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 100 | 100 |
| HY10W-6 | 6 | 5.1 | 19.5 | 15.4 | 18 | 100 | 100 |
| HY10W-9 | 9 | 7.65 | 28.5 | 23. 1 | 27 | 100 | 100 |
| HY10W-10 | 10 | 8.4 | 36 | 30 | 23 | 250 | 150 |
| HY10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 150 |
| HY10W-12 | 12 | 10.2 | 38.0 | 30.8 | 36 | 200 | 100 |
| HY10W-15 | 15 | 12.7 | 47.5 | 38.5 | 45 | 200 | 100 |
| HY10W-18 | 18 | 15.3 | 57.0 | 46.2 | 54 | 200 | 100 |
| HY10W-21 | 21 | 17.0 | 66.5 | 53.9 | 63 | 200 | 100 |
| HY10W-24 | 24 | 19.2 | 76.0 | 61.6 | 72 | 200 | 100 |
| HY10W-27 | 27 | 21.9 | 85.5 | 69.3 | 81 | 200 | 100 |
| HY10W-30 | 30 | 24.2 | 95.0 | 76.5 | 90 | 200 | 100 |
| HY10W-33 | 33 | 26.8 | 104.5 | 84.7 | 99 | 400 | 100 |
| HY10W - 36 | 36 | 29 | 114.0 | 92.4 | 108 | 400 | 100 |
| HY10W-42 | 42 | 34.1 | 132.3 | 100. 1 | 126 | 400 | 100 |
| HY10W-48 | 48 | 39 | 152.0 | 126.0 | 150 | 400 | 100 |
| HY10W-54 | 54 | 43 | 171.0 | 139.0 | 162 | 600 | 100 |
| HY10W-60 | 60 | 48 | 208.0 | 160.0 | 180 | 600 | 100 |
| HY10W-66 | 66 | 52.8 | 230.0 | 172.0 | 198 | 600 | 100 |

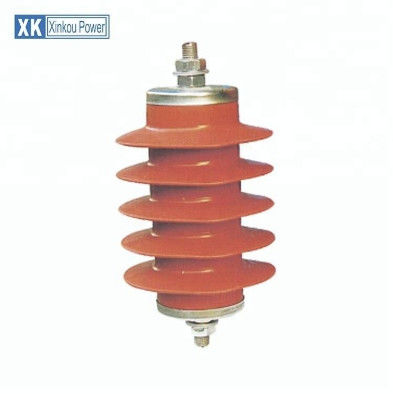

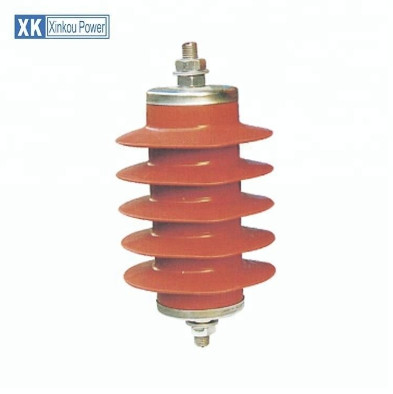

XK 15KV High discharge zinc oxide lightning arrester
