| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | ZN63-12KV/630A |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiation |
| Packaging Details: | EXPORTING PACKING |
| Supply Ability: | 100 Piece/Pieces per Month |

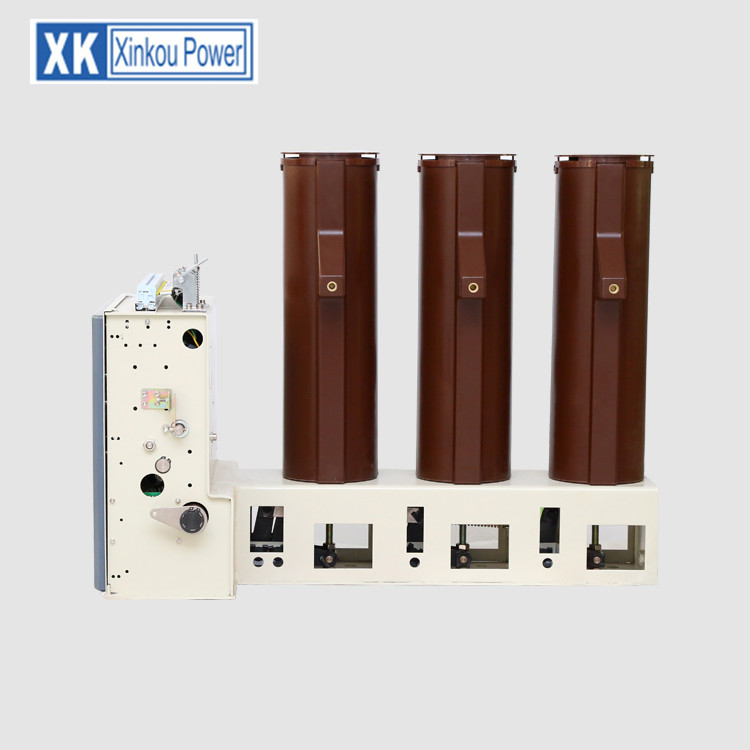

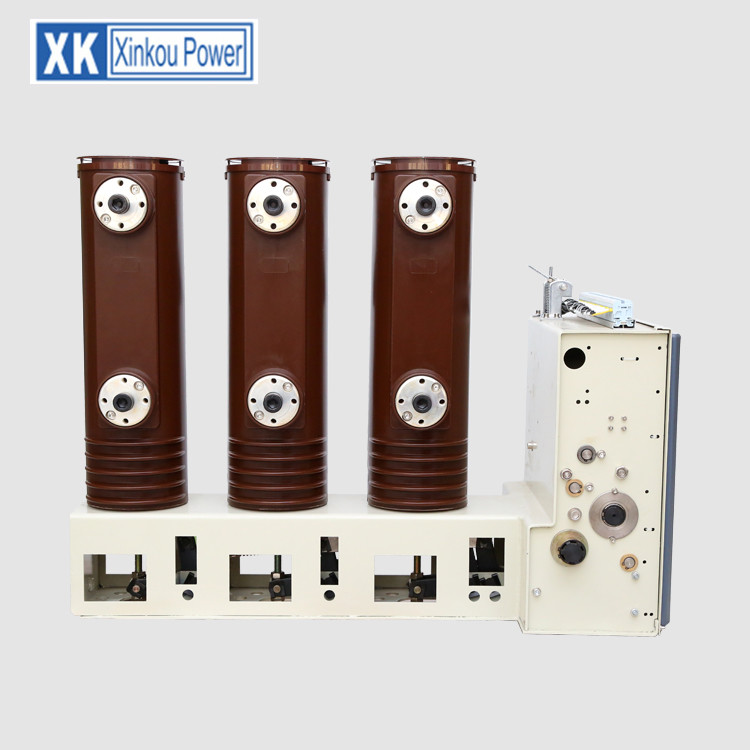

| NAME: | High Voltage Vacuum Circuit Breaker | Standard: | GBJ, JB,IEC |
|---|---|---|---|
| Rated Current: | 630A,1250A, 1600A | Rated Voltage: | 12KV |
| Mechanical Life: | 10000 | ||
| High Light: | vcb circuit breaker,indoor vcb panel |
||
A breaker which used vacuum as an arc extinction medium is called a vacuum circuit breaker. In this circuit breaker, the fixed and moving contact is enclosed in a permanently sealed vacuum interrupter. The arc is extinct as the contacts are separated in high vacuum. It is mainly used for medium voltage ranging from 11 KV to 33 KV.
| Item | Unit | Data | |||
| Rated voltage | KV | 12 | |||
| Maximum working voltage | KV | 12 | |||
| Rated Current | A | 630-1250 | 630-1600 | 630-1600 | |
| Rated short circuit breaking current | KA | 20 | 25 | 31.5 | |
| Rated short-circuit switching current | KA | 50 | 63 | 80 | |
| Rated peak withstand current | KA | 50 | 63 | 80 | |
| 4S rated short-circuit withstand current | KA | 20 | 25 | 31.5 | |
| Rated insulation level | 1min Power frequency withstand voltage | KV | 42(fracture 48) | ||
| lmpulse withstand voltage | KV | 75(fracture 84) | |||
| Rated short-circuit current breaking times | Times | 50 | |||
| Rated Operating Mechanism Closing Voltage(DC) | V | AC,DC 110,220 | |||
| Rated Operating Mechanism Opening Voltage(DC) | V | AC,DC 110,220 | |||
| Contact opening distance | mm | 11±1 | |||
| Overtravel(the length of contact spring compression) | mm | 3.5±0.5 | |||
| Closing/Opening Time Difference Among Three Phase | ms | ≤2 | |||
| Contact closing bounce time | ms | ≤2 | |||
| Average opening speed | m/s | 0.9-1.2 | |||
| Average closing speed | m/s | 0.5-0.8 | |||
| Tripping Time | Maximum operating voltage | S | ≤0.05 | ||
| Minimum operating voltage | S | ≤0.08 | |||
| Closing time | S | 0.1 | |||
| The main circuit resistance of each phase | 630≤50 | 1250≤45 | 1600≤40 | ||
| Allowed Consumpted thickness of Contacts | mm | 3 | |||
