IEC 12KV Permanent Magnetic Vacuum Circuit Breaker Three Phase

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: ZN63-12/630A
Minimum Order Quantity: >=1 Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKING
Supply Ability: 100 Piece/Pieces per Month
Standard: IEC Rated Current: 630A,1250A, 1600A
Rated Voltage: 12KV Mechanical Life: 10000
Usage: KYN28 SWITCH CABINET Port: NINGBO
High Light:

12KV Vacuum Circuit Breaker

,

IEC Vacuum Circuit Breaker

,

Permanent Magnetic Vacuum Circuit Breaker

Hot sale 12KV 50HZ permanent magnetic mechanism three-phase vacuum circuit breaker

Product Description

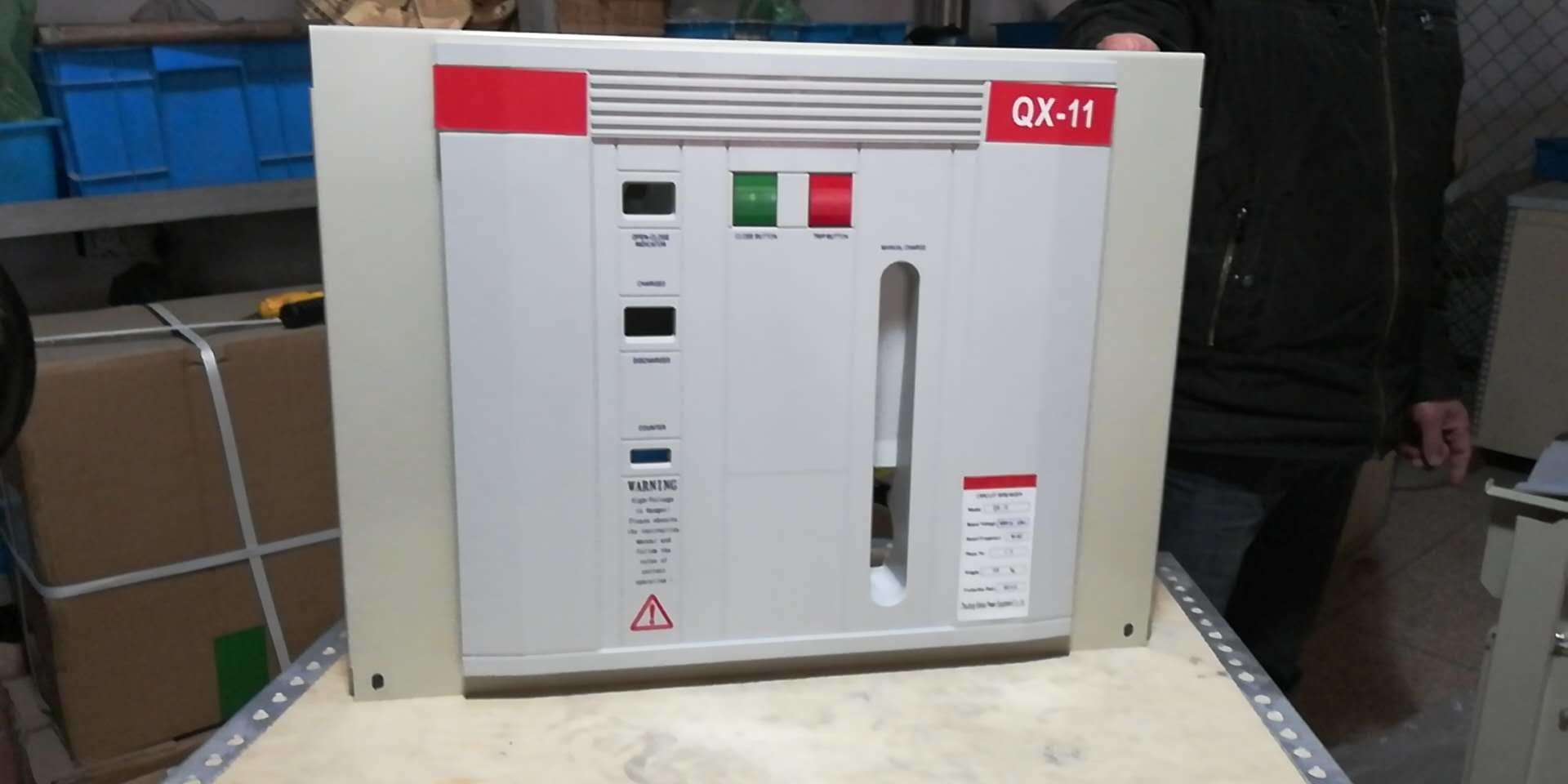

   IEC 12KV Permanent Magnetic Vacuum Circuit Breaker Three Phase 0



Vacuum Arc Stability:

In a 50 Hz ac circuit the current passes through zero value 100 times in a second (i.e., once every 10 ms). It is desirable that the current is interrupted when it is passing through zero value, otherwise overvoltage will be induced due to current chopping. Therefore, for successful arc interruption it is necessary that the arc be stable for half-cycle duration and particularly that it continues to exist at currents approaching zero.

The arc stability is found to depend upon:

(i) The contact material and its vapour pressure and

(ii) Circuit parameters such as voltage, current, capacitance and inductance.

In low current circuits most of the evaporation takes place at discrete points, called the cathode spots, while at higher currents the evaporation takes place from cathode and anode spots. In addition to these sources gas is added to the enclosure of the contacts when it is stripped from other parts of the enclosure because of high temperature and impinging metal vapour.

Vapour pressure and arc stability are found to be interrelated. The higher the vapour pressure at lower temperature, the better is the stability of the arc i.e., the longer the life time of the arc. There are certain metals like Zn, Bi, which provide such characteristics and are better electrode materials for vacuum circuit breakers. Besides the vapour pressure, the thermal conductivity of the metal also affects the current chopping level.

A good heat conducting metal will cool very rapidly and its contact surface temperature will fall. This will reduce the evaporation rate and the arc will be chopped because of insufficient vapour. On the other hand, a bad heat conductor will maintain its temperature and vaporization for a longer time and the arc will be more stable.



Shunting the contacts with different values of capacitance reduces the average life time of the arc. The higher the value of the capacitance, the lower is the average life time of the arc. An inductance in series, on the other hand increases the lifetime of the arc. Similarly, higher the system operating voltage, longer is the duration of the arc. This is because more restoring voltage is available to keep the arc alive.

Item Unit Data
Rated voltage KV 12
Rated frequency HZ 50
Rated insulation level 1min Power frequency withstand voltage KV 42(fracture 48)
Peak Lightning lmpulse Withstand voltage KV 75(fracture 84)
Rated Breaking Current KA 20 25 31.5 40
Rated Current A 630 630 1250 1600 1250 1600
1250 1250 2000 2500 2000 2500
Rated short time withstand current KA
20
25
31.5
40
Rated peak withstand current KA
50
63
80
100
Rated short circuit breaking current KA
50
63
80
100
Rated continous time under short circuit current S 4
Secondary power frequncy withstand voltage V 2000V

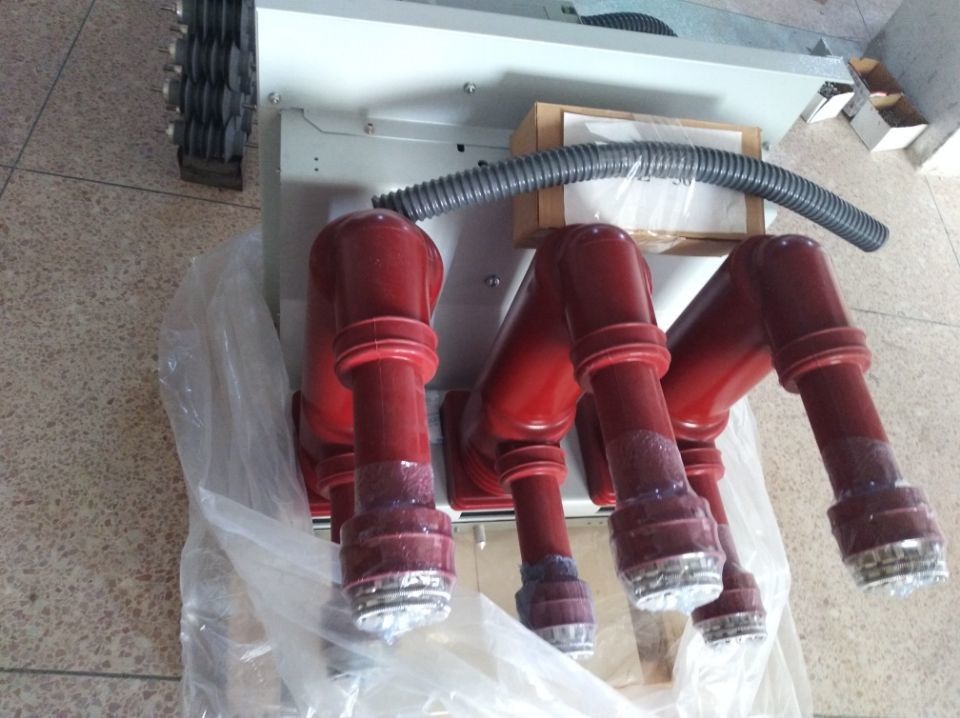

IEC 12KV Permanent Magnetic Vacuum Circuit Breaker Three Phase 1

Company Information

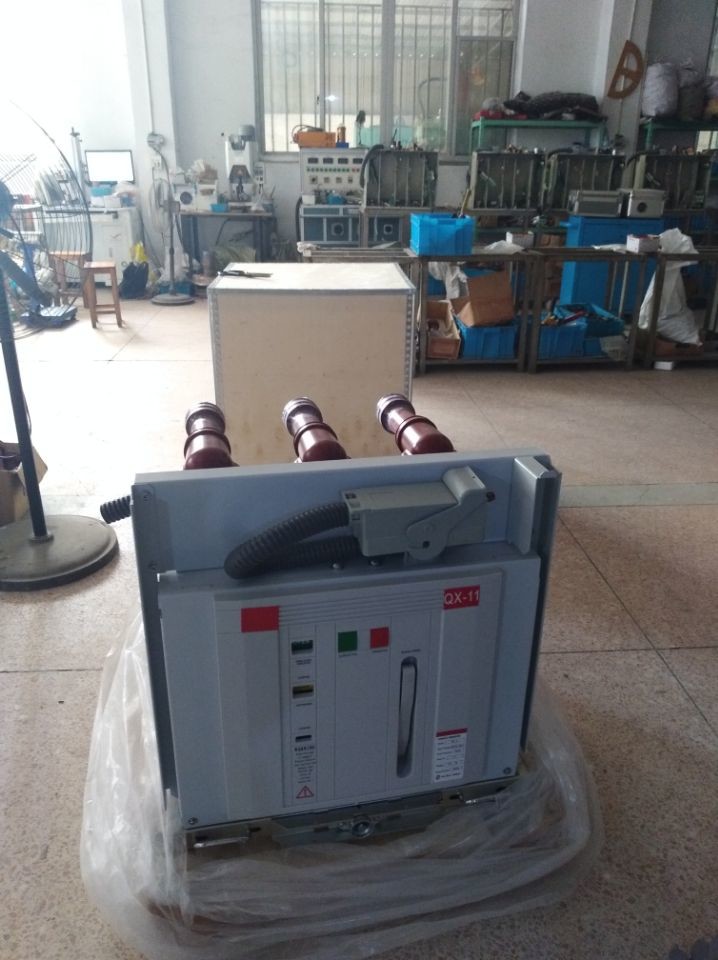

IEC 12KV Permanent Magnetic Vacuum Circuit Breaker Three Phase 2

FAQ

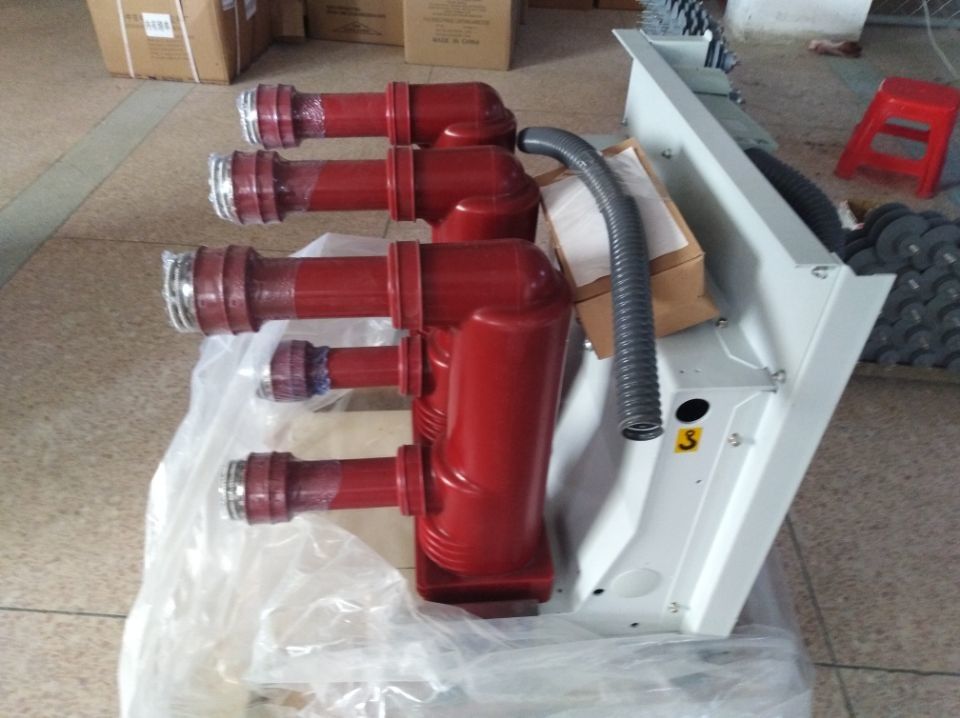

IEC 12KV Permanent Magnetic Vacuum Circuit Breaker Three Phase 3

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
