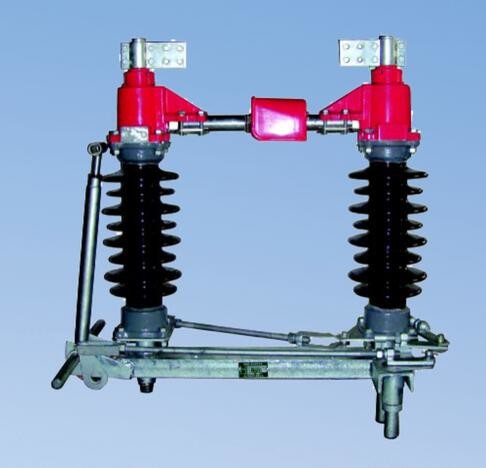

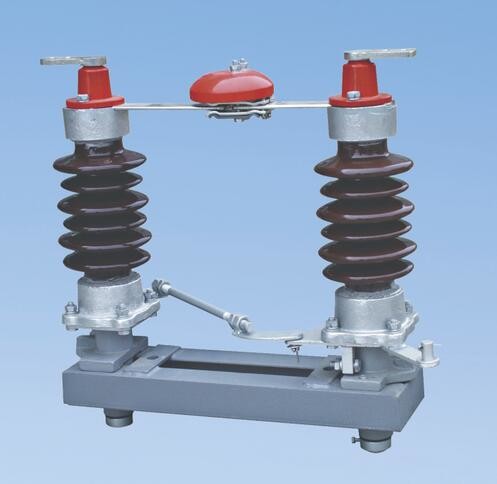

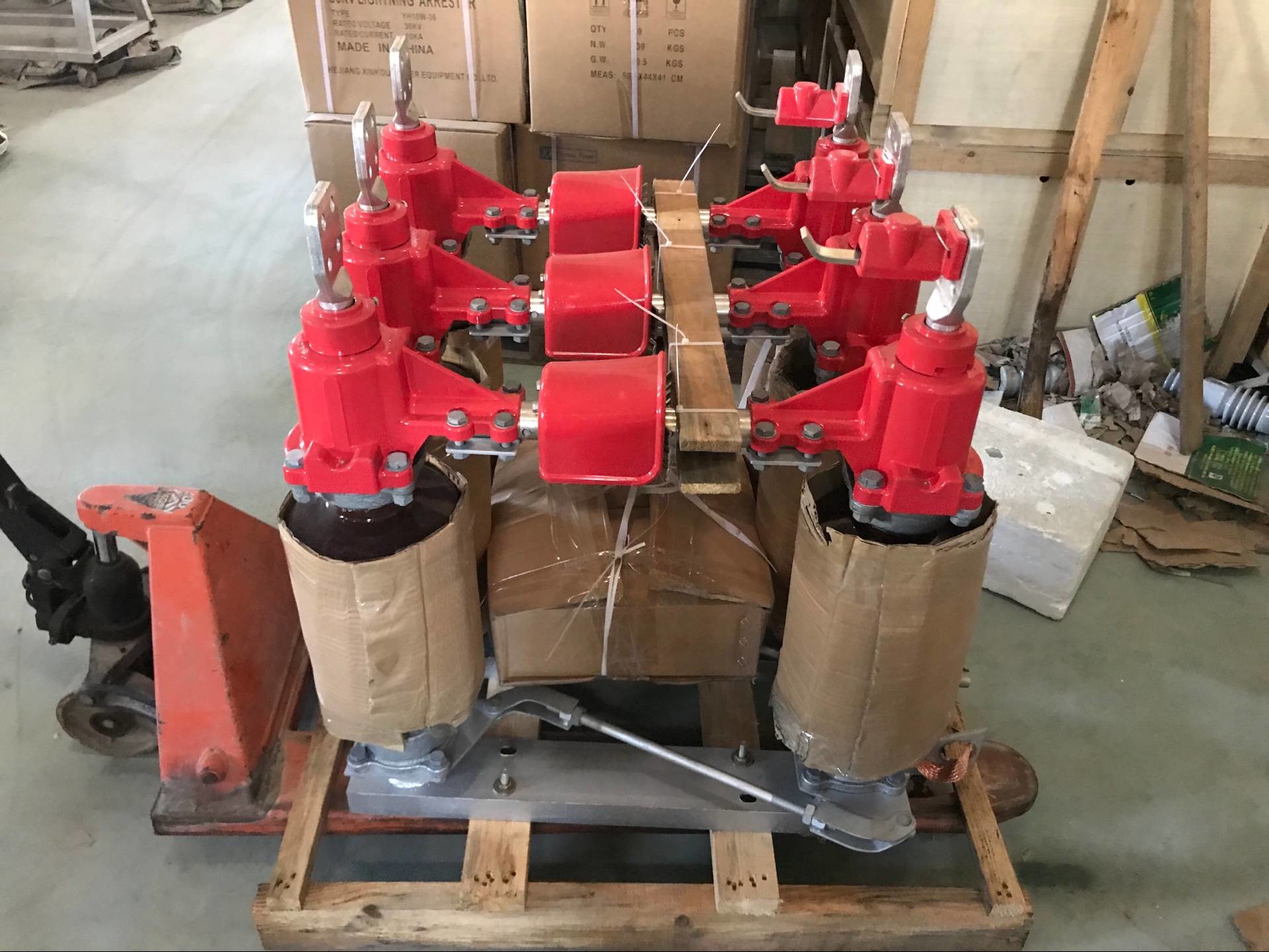

Industrial Electrical High Voltage Disconnect Switch / Outdoor Disconnect Switch

Basic Information
Place of Origin: CHINA
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: GW4
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKING
Supply Ability: 100 Piece/Pieces per Month
Max. Current: 630A,1250A Max. Voltage: 11KV, 12KV
Standard: IEC Rated Current: 630A,1250A, 1600A,2000A
Rated Voltage: 12 KV Mechanical Life: 10000
Port: NINGBO
High Light:

motor operated disconnect switch

,

outdoor disconnect switch

XK Hot sale 40.5KV outdoor H.V. disconnecting switch GW4 isolator switch

Hot sale 40.5KV outlinedoor H.V. disconnecting switch

Product Description



Disconnectors can be classified into various types based upon their constructional features and mounting arrangement. The major types of disconnectors are:

Centre-break disconnectors
Double-break disconnectors
Pantograph disconnectors
Horizontal break knee disconnectors
These are selected based upon the sub-station layout, clearances available and space constrains.



Item Unit Data
Rated voltage KV 40.5/72.5/126
Rated lnsulating level

1min power fequncy
voltage withstand

To earth KV 95/140/230
Fracture KV 115/160/245
lmpulse voltage withstand To earth KV 185/325/550
Fracture KV 215/375/630
Rated frequency HZ 50
Rated current A 630/1250/1600/2000
Rated short time current withstand KA 20/31.5/40/40
Rated peak current withstand KA 50/80/100/100
Rated short circuit cont.current:Mian/earth blade S 4/2
Rated teminal mechanical load Vertical N 750/1000
Horizontal N 500/750
Vertical Force N 750/1000
Creepage distance MM 1013/1256,1813/2248,3150/3906
Mechanical life Times 2000
Manual operating mechanism Model   CS17,CS17G
Voltage of control circuit V AC220 DC110 DC220
Electic operating mechanism Voltage of motor V AC380 DC220 DC220
Voltage of control circuit V AC220 DC110 DC220









Rated volt A A1 H E C D
40.5 1200 1075 1070 1400 240 300
72.5 1600 1285 1295 2200 240 300
126 2000 1660 1695 3000 240 300
