Keywords: | 11 Kv Do Fuse | Standard: | GB1208-2006 |
---|---|---|---|
Rated Voltage: | 11kv | Mechanical Life: | 10000 |
Rated Current: | 100A/200A | Port: | NINGBO |
High Light: | GB1208-2006 11kv Drop Out Fuse,200A 11kv Drop Out Fuse,200A 11 kv do fuse |

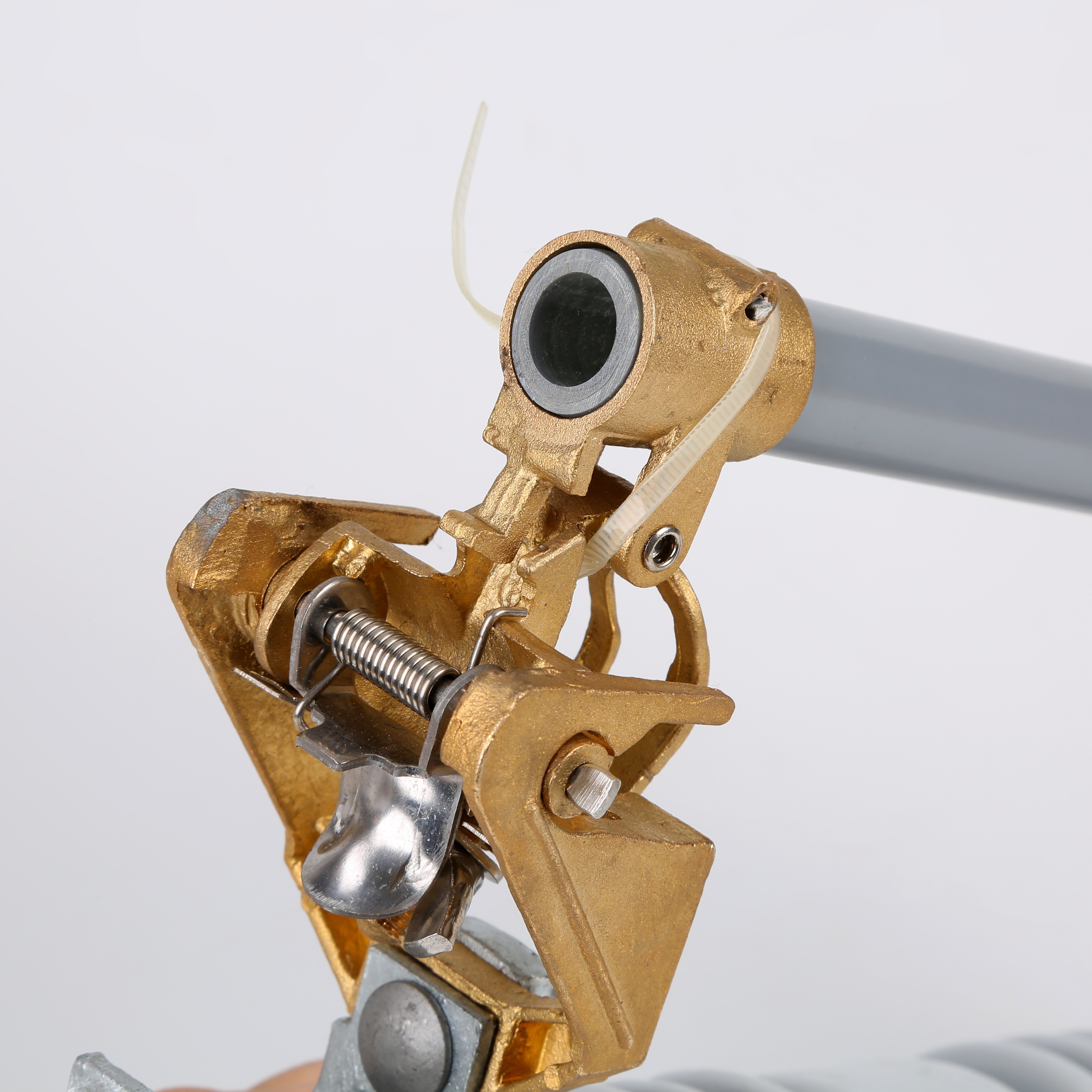

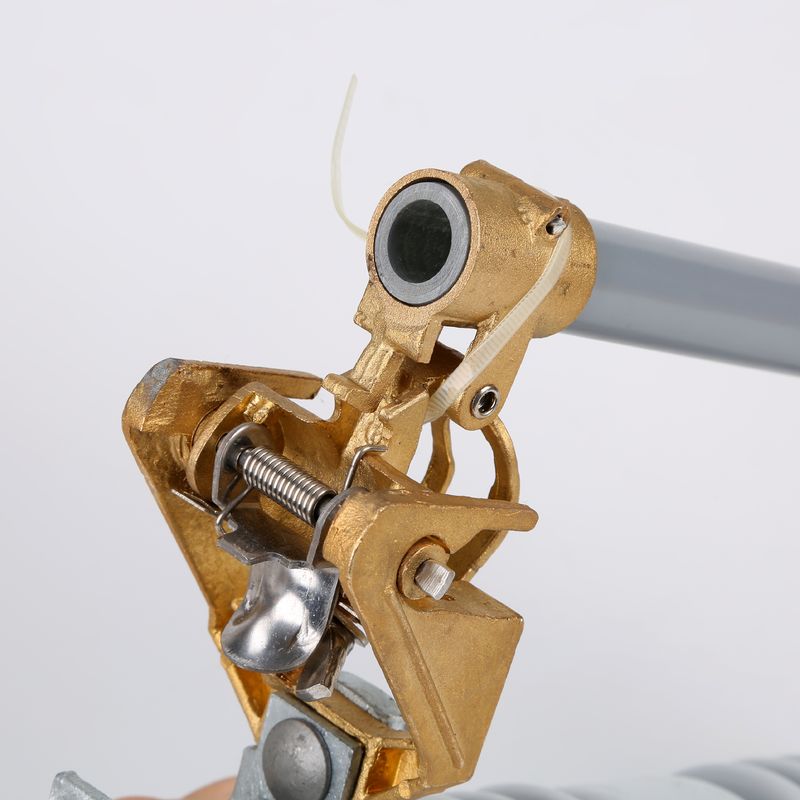

11kv drop out fuse cutout high voltage fuse for microwave oven microwave high voltage fuse
Three types of Drop out fuses for protection in distribution & transmission line are manufactured by us.
Bracket type
Channel mounting type
Single solid core insulator type.
The main characteristics of Drop-out fuses are as under:
Available ratings : 11, 22 & 33kV.
Current rating : 50 to 200Amps.
Vertical mounting type
Confirms IS: IEC
After removing the fuse barrel by an operating pole, fuse wire can be replaced.
Type | 11KV DOFC/100 | 11KV DOFC/200 |
Rated Voltage(kV) | 10-15 | 10-15 |
Rated current(A) | 100 | 200 |
Breaking current(A) | 10000 | 12000 |
Impulse voltage(kV) | 110 | 110 |
Power frequency wihstand voltage(kV) | 42 | 42 |
Creepage distance(mm) | 250 | 250 |
Weight(kg) | 7 | 7 |
Dimensions(CM) | 38.5*34.5*10.5 | 38.5*34.5*10.5 |
INTRODUCTION
Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.
Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.
