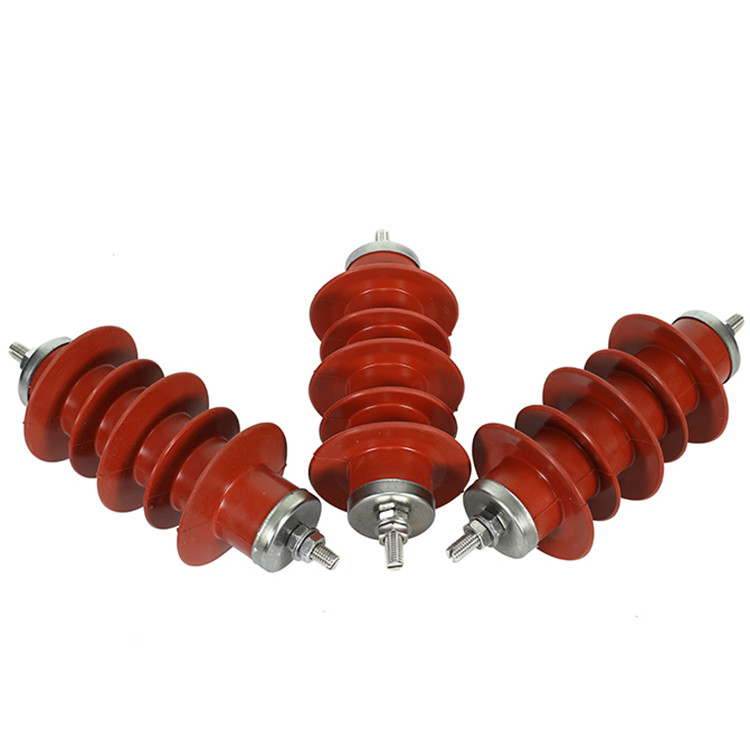

Lightning Arrester Surge Protector / Mov Lightning Arrester With Mounting Bracket

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: HY10W-3269
Minimum Order Quantity: 12 Pieces
Price: Negotiation
Product Name: Lightning Arrester Product Keywords: Zinc Oxide Surge Lightning Arrester
Keywords: 12v Surge Protector Selling Units: Single Item
Single Package Size : 43X30X35 Cm Single Gross Weight: 12.000 Kg
Package Type: EXPORTING PACKAGE
High Light:

metal oxide lightning arrester

,

9kv lightning arrester

12v surge protector arresters with mounting bracket m.o.v bushing surge arrester

Hot Sale zinc oxide varistor


Product Description





 Type

 Rated

 voltage

 (kV)

 MCOV

 (kV)

 Residual voltage (KV)

2000ms square

wave impulse

 current withstand

 4/1OMS high

current impulse

 (kV)



 Steep

 current

 impulse

 switching

 current

 impulse

8/20 ms

 Lightning

 current

 impulse

HY10W-3 3 2.55 9.5 7.7 9 100 100
HY10W-6 6 5.1 19.5 15.4 18 100 100
HY10W-9 9 7.65 28.5 23. 1 27 100 100
HY10W-10 10 8.4 36 30 23 250 150
HY10W-11 11 9.4 40 33 30 250 150
HY10W-12 12 10.2 38.0 30.8 36 200 100
HY10W-15 15 12.7 47.5 38.5 45 200 100
HY10W-18 18 15.3 57.0 46.2 54 200 100
HY10W-21 21 17.0 66.5 53.9 63 200 100
HY10W-24 24 19.2 76.0 61.6 72 200 100
HY10W-27 27 21.9 85.5 69.3 81 200 100
HY10W-30 30 24.2 95.0 76.5 90 200 100
HY10W-33 33 26.8 104.5 84.7 99 400 100
HY10W - 36 36 29 114.0 92.4 108 400 100
HY10W-42 42 34.1 132.3 100. 1 126 400 100
HY10W-48 48 39 152.0 126.0 150 400 100
HY10W-54 54 43 171.0 139.0 162 600 100
HY10W-60 60 48 208.0 160.0 180 600 100
HY10W-66 66 52.8 230.0 172.0 198 600 100



Lightning Arrester Surge Protector / Mov Lightning Arrester With Mounting Bracket 0

12v surge protector arresters with mounting bracket m.o.v bushing surge arrester
