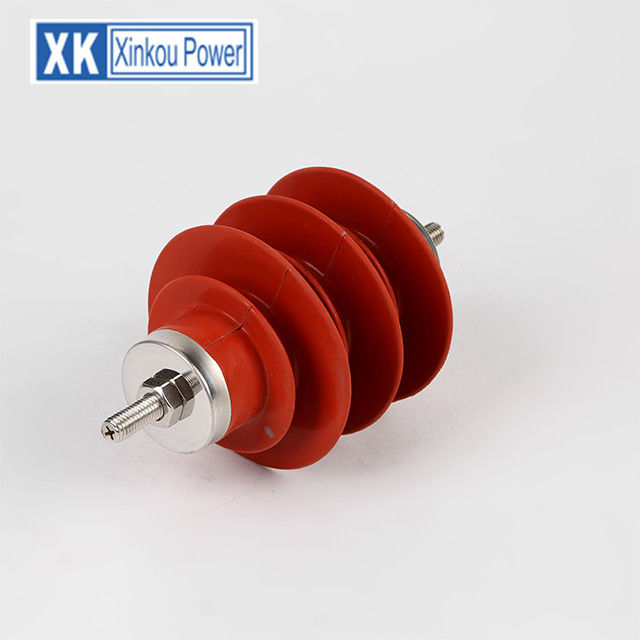

Medium Voltage Metal Oxide Surge Arrester In Transmission Line Gapless

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: 9KV LA
Minimum Order Quantity: 500 - 1499 Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKAGE
Supply Ability: 15000 Piece/Pieces per Month
Product Keywords: Zinc Oxide Surge Lightning Arrester Standard: GB11032-2000
Application: Power Distribution Product Name: Lightning Arrester
Port: NINGBO
High Light:

11kv surge arrester

,

electrical surge arrester

XK Hot Sale zinc oxide 15 kv lightning surge arrester surege

Hot Sale zinc oxide varistor


Product Description


Surge Arrester
Not all surge arresters protect systems from lightning. While lightning current arresters (Class 1) are used to protect against direct lightning surge currents, surge arresters (Class 2) protect equipment from induced surges in electrical wiring. Surge arresters and lightning current arresters from us offer reliable protection against these hazards.







 Type

 Rated

 voltage

 (kV)

 MCOV

 (kV)

 Residual voltage (KV)

2000ms square

wave impulse

 current withstand

 4/1OMS high

current impulse

 (kV)



 Steep

 current

 impulse

 switching

 current

 impulse

8/20 ms

 Lightning

 current

 impulse

HY10W-3 3 2.55 9.5 7.7 9 100 100
HY10W-6 6 5.1 19.5 15.4 18 100 100
HY10W-9 9 7.65 28.5 23. 1 27 100 100
HY10W-10 10 8.4 36 30 23 250 150
HY10W-11 11 9.4 40 33 30 250 150
HY10W-12 12 10.2 38.0 30.8 36 200 100
HY10W-15 15 12.7 47.5 38.5 45 200 100
HY10W-18 18 15.3 57.0 46.2 54 200 100
HY10W-21 21 17.0 66.5 53.9 63 200 100
HY10W-24 24 19.2 76.0 61.6 72 200 100
HY10W-27 27 21.9 85.5 69.3 81 200 100
HY10W-30 30 24.2 95.0 76.5 90 200 100
HY10W-33 33 26.8 104.5 84.7 99 400 100
HY10W - 36 36 29 114.0 92.4 108 400 100
HY10W-42 42 34.1 132.3 100. 1 126 400 100
HY10W-48 48 39 152.0 126.0 150 400 100
HY10W-54 54 43 171.0 139.0 162 600 100
HY10W-60 60 48 208.0 160.0 180 600 100
HY10W-66 66 52.8 230.0 172.0 198 600 100



   Medium Voltage Metal Oxide Surge Arrester In Transmission Line Gapless 0
FAQ

Medium Voltage Metal Oxide Surge Arrester In Transmission Line Gapless 1

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory
