Outdoor Transformer High Voltage Disconnecting Switch 40.5KV 72.5KV 126KV

Basic Information
Place of Origin: CHINA
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: GW5
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKING
Supply Ability: 100 Piece/Pieces per Month
Keywords: 24kv Outdoor Disconnecting Switch Max. Voltage: 126V
Standard: IEC Rated Current: 630A,1250A, 1600A,2000A
Rated Voltage: 72.5KV Mechanical Life: 10000
High Light:

motor operated disconnect switch

,

transformer disconnect switch

XK 40.5KV 72.5KV 126KV outdoor high voltage disconnecting switch

Product Description





Maximum reliability and minimal maintenance

we offers a wide range of reliable and energy efficient disconnectors to meet the requirements of different sites and network conditions. The disconnectors range from 72.5 kV to 550 kV. disconnectors are designed as per IEC standards. Also other standards and regulations (eg, IEEE, GOST, and GB) can be met on request. Accredited testing laboratories carry out type tests on the disconnectors in accordance with the latest regulations. World-class quality of disconnectors is ensured through comprehensive electrical and mechanical routine tests on the poles and operating mechanism of each disconnector.

Applications

Isolation of power equipment from the network
For switching very small currents or where no significant change in voltage occurs across the terminals

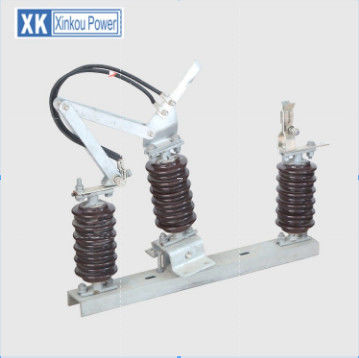

   Outdoor Transformer High Voltage Disconnecting Switch 40.5KV 72.5KV 126KV 0





Item Unit Data
Rated voltage KV 40.5/72.5/126
Rated lnsulating level

1min power fequncy
voltage withstand

To earth KV 95/140/230
Fracture KV 115/160/245
lmpulse voltage withstand To earth KV 185/325/550
Fracture KV 215/375/630
Rated frequency HZ 50
Rated current A 630/1250/1600/2000
Rated short time current withstand KA 20/31.5/40/40
Rated peak current withstand KA 50/80/100/100
Rated short circuit cont.current:Mian/earth blade S 4/2
Rated teminal mechanical load Vertical N 750/1000
Horizontal N 500/750
Vertical Force N 750/1000
Creepage distance MM 1013/1256,1813/2248,3150/3906
Mechanical life Times 2000
Manual operating mechanism Model   CS17,CS17G
Voltage of control circuit V AC220 DC110 DC220
Electic operating mechanism Voltage of motor V AC380 DC220 DC220
Voltage of control circuit V AC220 DC110 DC220

Rated volt A A1 H E C D
40.5 1200 1075 1070 1400 240 300
72.5 1600 1285 1295 2200 240 300
126 2000 1660 1695 3000 240 300

Outdoor Transformer High Voltage Disconnecting Switch 40.5KV 72.5KV 126KV 1
