Outdoor Vcb Panel / 33kv Outdoor Vcb High Performance ISO9001 Certificate

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: ZW7A-40.5
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKING
Supply Ability: 100 Piece/Pieces per Month
Standard: IEC Rated Current: 1250A, 1600A
Rated Voltage: 33kv Mechanical Life: 10000
Port: NINGBO
High Light:

vcb circuit breaker

,

outdoor vcb breaker

33kv outdoor high voltage vacuum circuit breaker

Product Description

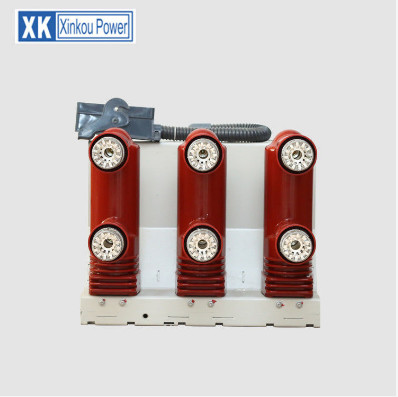

  Outdoor Vcb Panel / 33kv Outdoor Vcb High Performance ISO9001 Certificate 0

Item Unit Data
Rated frequency Hz 50,60
Power frequency with stand voltage 1min(wet)(dry) phase to ground/fracture KV
80 95/95
Lightning impulse with stand voltage KV 185
Rated short circuit breaking current KA 25/31.5
Rated short circuit witch ingcurrent KA 63/80
Rated peak with stand current KA 63/80
4S short time with stand current KA 25/31.5
Rated short circuit breaking times times
30
Control voltage of mechanism V AC/DC 220
Second ary circuit power frquency with stand voltage 1min KV 2
Contact opening distance mm 18±1
Contact over-travelling distance mm 4±0.5
Opening speed m/s 1.4-1.8
Closing speed m/s 0.4-0.8
Contact closing bounce time ms ≤5
Middled is tance between phases mm 700±2
Closing/Opening time difference between three phases ms ≤2
The circuit esistance of each phase Ω <80
Closing time ms ≤100
Opening time ms ≤50
Weight KG 500

Outdoor Vcb Panel / 33kv Outdoor Vcb High Performance ISO9001 Certificate 1







Vacuum circuit breakers are often used in high voltage electrical systems to perform the same function as breakers in a home’s electrical panel. The main function of a vacuum circuit breaker is to cut off power to electrical outlets in case of a short circuit or electrical malfunction to allow manual disconnection of circuits so that they can be repaired. A notable feature of vacuum circuit breakers is that they contain evacuated spaces.



Breaker Basics
To understand how vacuum circuit breakers work, it is important to first understand how normal circuit breakers work. Basic circuit breakers are made of two metal contacts linked together by a spring-loaded mechanism that acts as trip.

The spring-loaded trip mechanism contains a mechanical heat sensor that monitors levels of electricity passing through electrical outlets. The mechanical heat sensor trips off the breaker when temperature levels increase due to overloading electrical conductors.

A magnetic sensor on the spring loaded trip mechanism trips off the breaker in case of a short circuit. The trip mechanism helps to control overload and short circuits by pulling the contacts apart to stop the flow of electricity in the circuit.

Arcing Problem
Circuit breakers often arc between the contacts for a few microseconds when they trip off pulling the electrical contacts apart. The arcing of the circuit breaker may ionize air and make it conduct electricity or provide a path for the electricity to go past the breaker. This is one of the main reasons why high voltage systems use vacuum circuit breakers because they cannot be ionized providing a path for electricity to go past the breaker. Although vacuum circuit breakers also experience arcing, electricity cannot go past the breaker before the contacts pull away from each other.

Vacuum Power
As the name suggests, vacuum circuit breakers contain a vacuum between the contacts. The vacuum is just an empty space that does not contain any solid, liquid, or gas. A vacuum is one of the best insulators available. It does not provide room for arcing and electricity cannot pass through a vacuum. Therefore, a vacuum is a suitable arc-extinguishing medium. Some high voltage breakers use a blast of high-pressure air to blow arcs apart. Others are filled with special oil that prevents the arcing. A considerable drawback of the air blast breakers is that they are highly complicated. On the other hand, oil-filled breakers are flammable and are highly toxic in case the oil leaks.

Applications
Vacuum circuit breakers, air blast breakers, and oil-filled breakers all perform exceptionally well in transmission lines because these electrical systems do not trip very often. In addition, the three types of breakers require minimal maintenance when used in transmission line applications. However, vacuum circuit breakers perform better than the other two types of breakers in handling line spikes and surges. In addition, vacuum breakers perform much better in high voltage applications that require frequent connection and disconnection of electrical systems.
