Power Line Distribution Zinc Oxide Lightning Arrester System Support

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: HY5W-5440
Minimum Order Quantity: 12 Pieces
Price: Negotiation
Product Name: Lightning Arrester Product Keywords: Zinc Oxide Surge Lightning Arrester
Keywords: 12KV Surge Protector Selling Units: Single Item
Single Package Size : 43X30X35 Cm Single Gross Weight: 12.000 Kg
Package Type: EXPORTING PACKAGE
High Light:

11kv surge arrester

,

distribution surge arrester

XK zinc-oxide lightning surge arrester

Hot Sale zinc oxide varistor


Product Description

Lightning and Electrical Surges
When a powerful surge or a lightning strikes a particular electrical system, it damages the whole system and any electrical devices connected to the system. Electrical devices work at a certain voltage range. When these devices receive a voltage way higher than the specified voltage sufficient for their operation, they blow up or get damaged. However, electrical systems that are protected by a surge arrester do not get damaged, because the arrester ensures that the high voltage does not get into the electrical system.





 Type

 Rated

 voltage

 (kV)

 MCOV

 (kV)

 Residual voltage (KV)

2000ms square

wave impulse

 current withstand

 4/1OMS high

current impulse

 (kV)



 Steep

 current

 impulse

 switching

 current

 impulse

8/20 ms

 Lightning

 current

 impulse

HY10W-3 3 2.55 9.5 7.7 9 100 100
HY10W-6 6 5.1 19.5 15.4 18 100 100
HY10W-9 9 7.65 28.5 23. 1 27 100 100
HY10W-10 10 8.4 36 30 23 250 150
HY10W-11 11 9.4 40 33 30 250 150
HY10W-12 12 10.2 38.0 30.8 36 200 100
HY10W-15 15 12.7 47.5 38.5 45 200 100
HY10W-18 18 15.3 57.0 46.2 54 200 100
HY10W-21 21 17.0 66.5 53.9 63 200 100
HY10W-24 24 19.2 76.0 61.6 72 200 100
HY10W-27 27 21.9 85.5 69.3 81 200 100
HY10W-30 30 24.2 95.0 76.5 90 200 100
HY10W-33 33 26.8 104.5 84.7 99 400 100
HY10W - 36 36 29 114.0 92.4 108 400 100
HY10W-42 42 34.1 132.3 100. 1 126 400 100
HY10W-48 48 39 152.0 126.0 150 400 100
HY10W-54 54 43 171.0 139.0 162 600 100
HY10W-60 60 48 208.0 160.0 180 600 100
HY10W-66 66 52.8 230.0 172.0 198 600 100

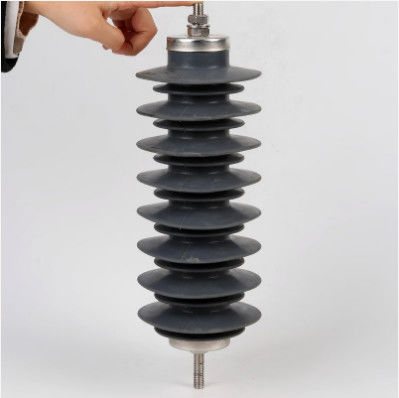

Power Line Distribution Zinc Oxide Lightning Arrester System Support 0

XK zinc-oxide lightning surge arrester

Related Products






FAQ

Power Line Distribution Zinc Oxide Lightning Arrester System Support 1

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory
