| Place of Origin: | china |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | FN12 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiation |
| Packaging Details: | EXPORTING PACKING |
| Supply Ability: | 100 Piece/Pieces per Month |
| Max. Current: | 1250A | Max. Voltage: | 12KV |
|---|---|---|---|
| Standard: | IEC | Rated Current: | 630A,1250A |
| Rated Voltage: | 12KV | Mechanical Life: | 10000 |
| Keywords: | 12kv Indoor Load Break Switch | Port: | NINGBO |
| High Light: | load break isolator,high voltage isolator switch |
||

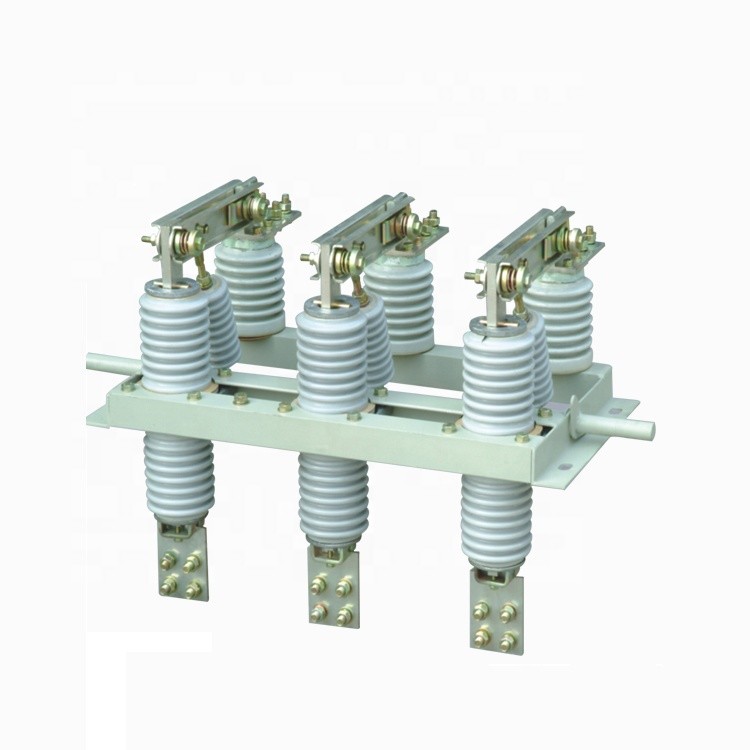

The three-phase load break switch is installed on one sectional galvanized steel base, joint together with one drive axis to ensure closing and opening of three poles synchronously. The switch opens or closes under rated load current, without requiring any secondary protection device.
Load break switch switches the current by mechanically moving their contacts with an appropriate speed in order to make (close) or break (open) the current. It is exposed to mechanical, thermal and dielectric stresses during switching operation. Hence, for investigating and in detail exploring the interrupting capabilities of load break switch, they need to undergo various test duties according to IEC . The essential parameters that are taken into consideration for analysing the behaviour of the load break switch during breaking tests are the current levels and the transient recovery voltage (TRV).
| ltem | Unit | Data | |
| Rated voltage | KV | FN12-12D/630 | FN12-12(R)D/125 |
| Rated frequency | HZ | 12 | |
| Rated current | A | 50 | |
| 1min power frequency withstand voltage | KV | 42 to ground and phases fracture 48 | |
| Lightning impulse withstand voltage | KV | 75 to ground and phases fracture 85 | |
| Rated thermal stable current | KA |
630
|
100
|
| Rated dynamic stable current | KA |
50
|
|
| Rated switching current(peak) | KA |
50
|
50
|
| Rated short-circuit current(expected) | KV |
31.5
|
|
| Maximum breaking current threshold | HZ | Fuse characteratic curve accorting | |
| Minimum breaking current | A | Fuse characteratic curve accorting | |
| Rated transfer current | KV |
50
|
1.5
|
| Maximum breaking current | KV | 1.8 | |
| Breaking OFF-load transformer capacity | KV/A | 1250 | |
| Rated cable charging current | A | 10 | |
| Rated active load current breaking times | Times | 10000 | |
| Opening time when striker strikes | S | <0.06 | |
| Earth switch thermal current switch | KA | 20(2S) | |
| Thermal stable current of earth switch | KA | 50 | 50 |
| Motor operating power supply voltage | V | AC/DC 110/220 | |
| ltem | Unit | Data | |
| FN12-10D/630 | FN12-10(R)D/125 | ||
| The total traveling distance of moving contact | mm | 200+8-2 | |
| Phase center distance (Before energy storage) | mm | 210±15 | |
| Moving contact overtravel distance | mm | 40±2 | |
| Auxiliary contact opening distance | mm | >150 | |
| Opening/Closing time difference among three phase | ms | <3 | |
| Opening speed | m/s | >2.8 | >2.8 |
| Closing speed | m/s | >3.8 | |
| Distance between metal flexible door and torch | mm | >125 | |
| Fracture distance of earth switch | mm | >150 | |
| Main circuit resistance | Ω | <120 | <300 |
| Maximum operating torque | NM | >160 | |
INTRODUCTION
Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.
Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.
