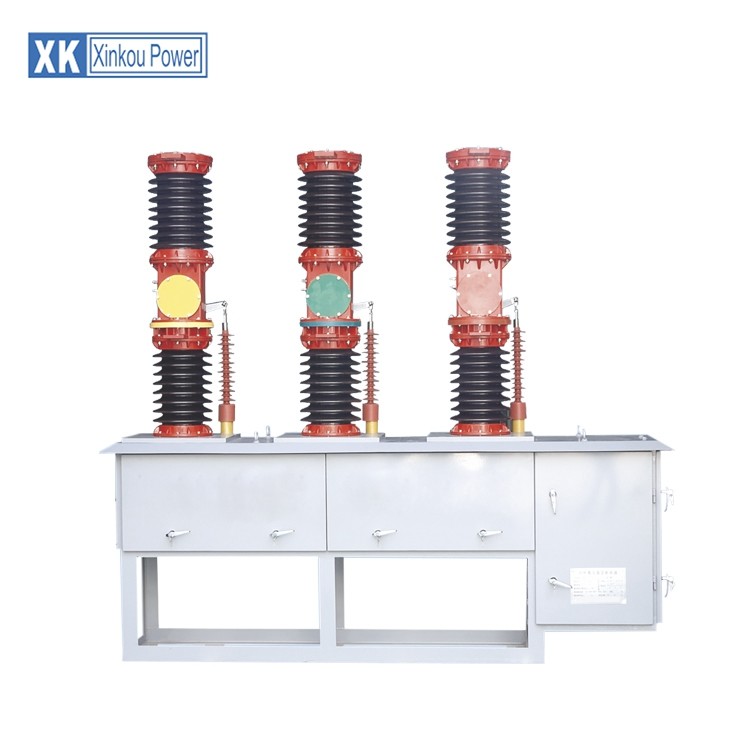

Vcb Outdoor High Voltage Vacuum Circuit Breaker In Substation 40.5KV

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: ZW7-40.5
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKING
Supply Ability: 100 Piece/Pieces per Month
Standard: IEC Rated Current: 1250A,1600A
Rated Voltage: 40.5KV Mechanical Life: 10000
Port: NINGBO
High Light:

vcb circuit breaker

,

indoor vcb panel

Hot sale 40.5KV outdoor high voltage three-phase vacuum circuit breaker

Product Description

  Vcb Outdoor High Voltage Vacuum Circuit Breaker In Substation 40.5KV 0



Vacuum Breakdown:

The major insulating media are atmospheric air, oil, paper and porcelain. These can withstand appreciable voltage but they are very small as compared to the withstand voltage of a gap in vacuum.

In the vacuum arc the neutral atoms, ions and electrons do not come from the medium in which the arc is drawn but they are obtained from the electrodes themselves by evaporating its surface material. Because of the large mean free path for the electrons, the dielectric strength of the vacuum is a thousand times more than when the gas is employed for arc interruption.

In the vacuum of range from 10–4 to 10–6 torr, the breakdown strength is independent of the gas density, but varies with gap length only. The actual value of breakdown voltage for a given gap depends upon the condition of electrode surfaces. Highly polished and thoroughly degassed electrodes have shown particularly high breakdown voltages. Contacts get roughened after use and thus the dielectric strength decreases which can be improved by applying successive high voltage impulse sparks.

This does not alter the arc roughened surfaces but removes the loosely adhering metal particles from the electrodes deposited there by the vapour blast during arcing. It has been found that for a vacuum of 10–6 torr some of the metals like silver, bismuth, copper etc. attain their maximum breakdown strength when the gap is slightly less than 3 mm. This property permits the use of short gaps in vacuum switches which results in simplifying the operating mechanism and increasing the speed of operation over conventional switches.

Item Unit Data
Rated short circuit breaking current KA
20
25
Rated short circuit current(peak)
50
63
Rated short(thermal stable)current
20
25
Rated peak withstand(dynamic stable)current
50
63
Rated short circuit duration S 4
Rated insulation level(1min) 1min power frequancy withstand voltage Dry KV 95
Wet 80
Lightning impluse withstand voltage 185
Rated operating sequence Times 20
Rated short-circuit current breaking times ms ≤80
Rated operating voltage A AC110,220,DC110,220
Contact opeaning distance mm 20
Contact over-travelling distance   5±1
Bounce time   ≤5
DC resistance per phase circuit   ≤120
Circuit breaker dimensions(L×W×H)   2460×2400×500
Total weight with mechanism kg 1100

Vcb Outdoor High Voltage Vacuum Circuit Breaker In Substation 40.5KV 1



Company Information



INTRODUCTION



Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.



Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.



SERVICE



We have a very professional sales team which can offer you the best service and answer you very professional questions, so you can feel very comfortable before you buy machine from us. As is known to all of us, after-sale service is the most important to all industries. Our company has been trying our best to build a very professional and high-caliber after-sale service team which can solve all problems efficiently in the future.

FAQ

Vcb Outdoor High Voltage Vacuum Circuit Breaker In Substation 40.5KV 2

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
