NAME: | Drop Out Fuse Cutout | Standard: | GB1208-2006 |
---|---|---|---|
Rated Voltage: | 24kv | Mechanical Life: | 10000 |
Rated Current: | 100A/200A | Port: | NINGBO |
High Light: | 11 kv do fuse,300 amp cut out |

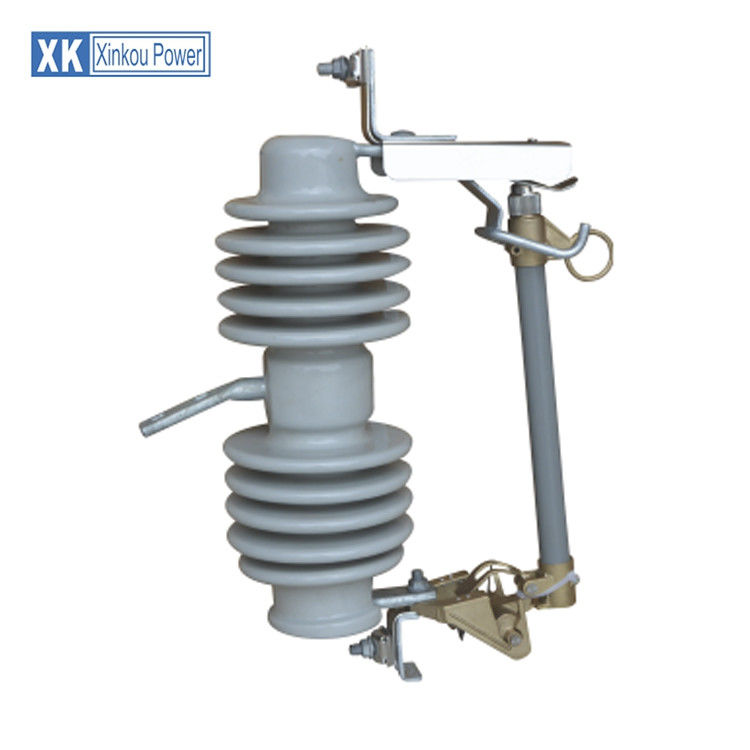

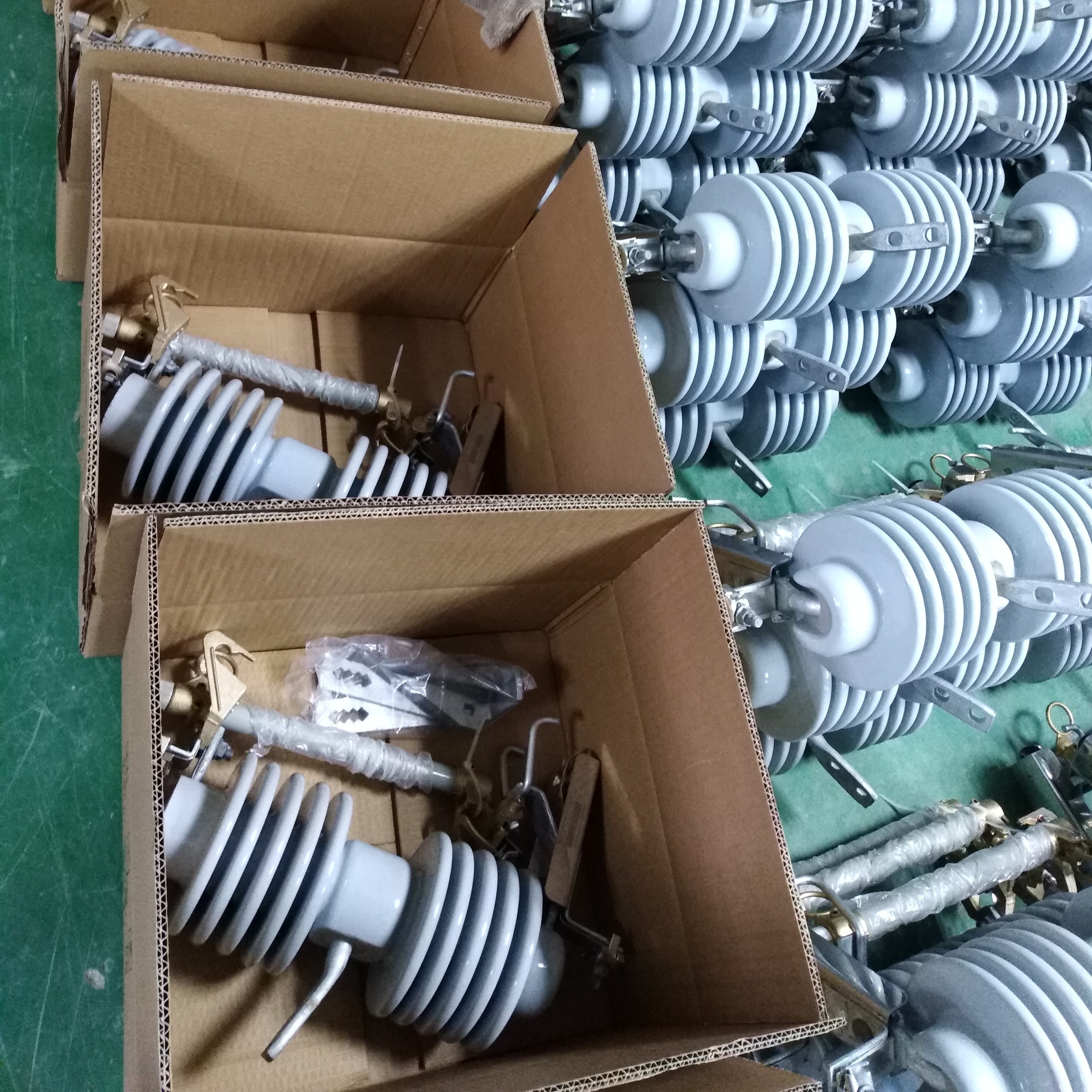

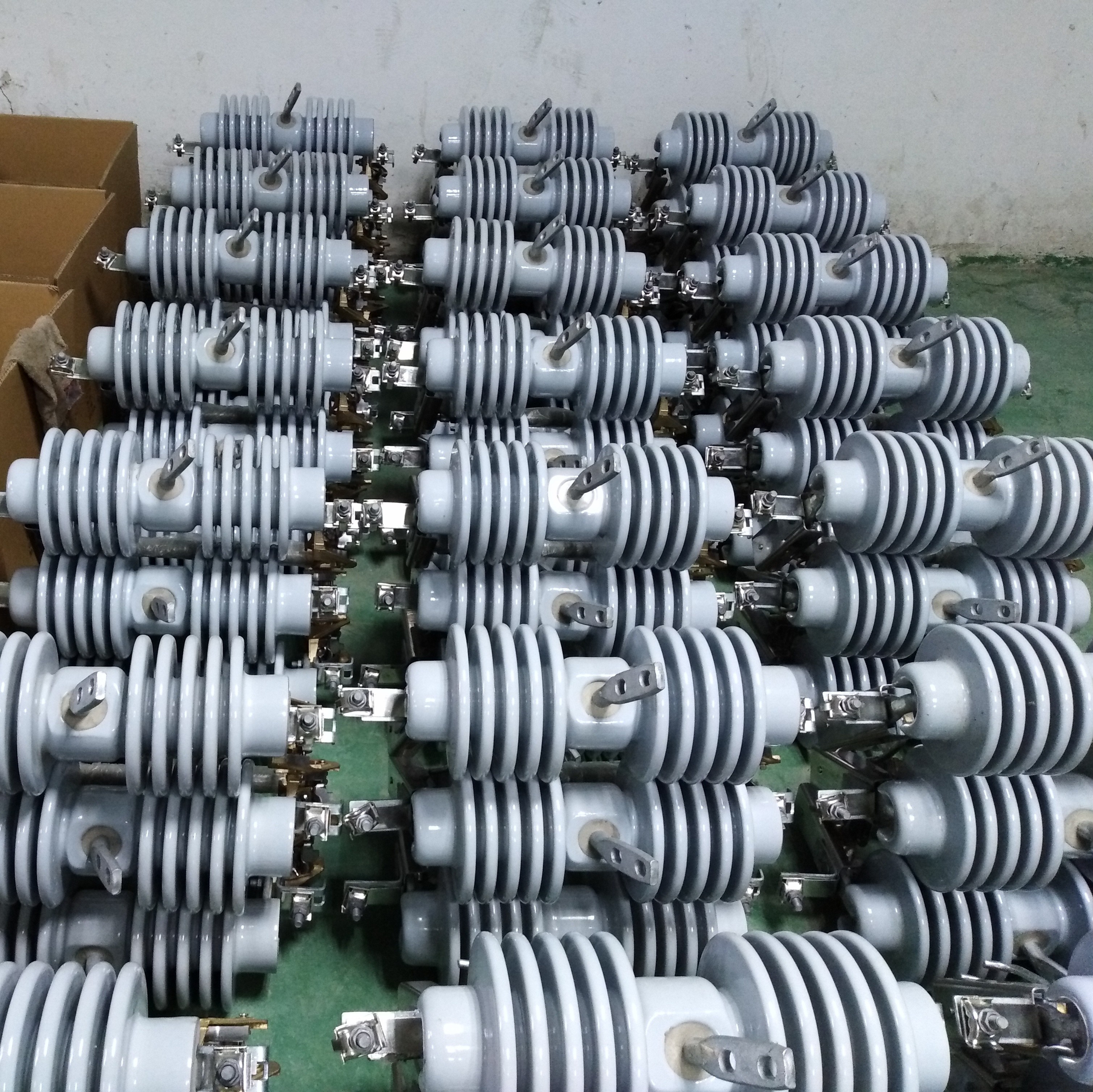

XK hot selling 24KV high voltage cutout fuse switch

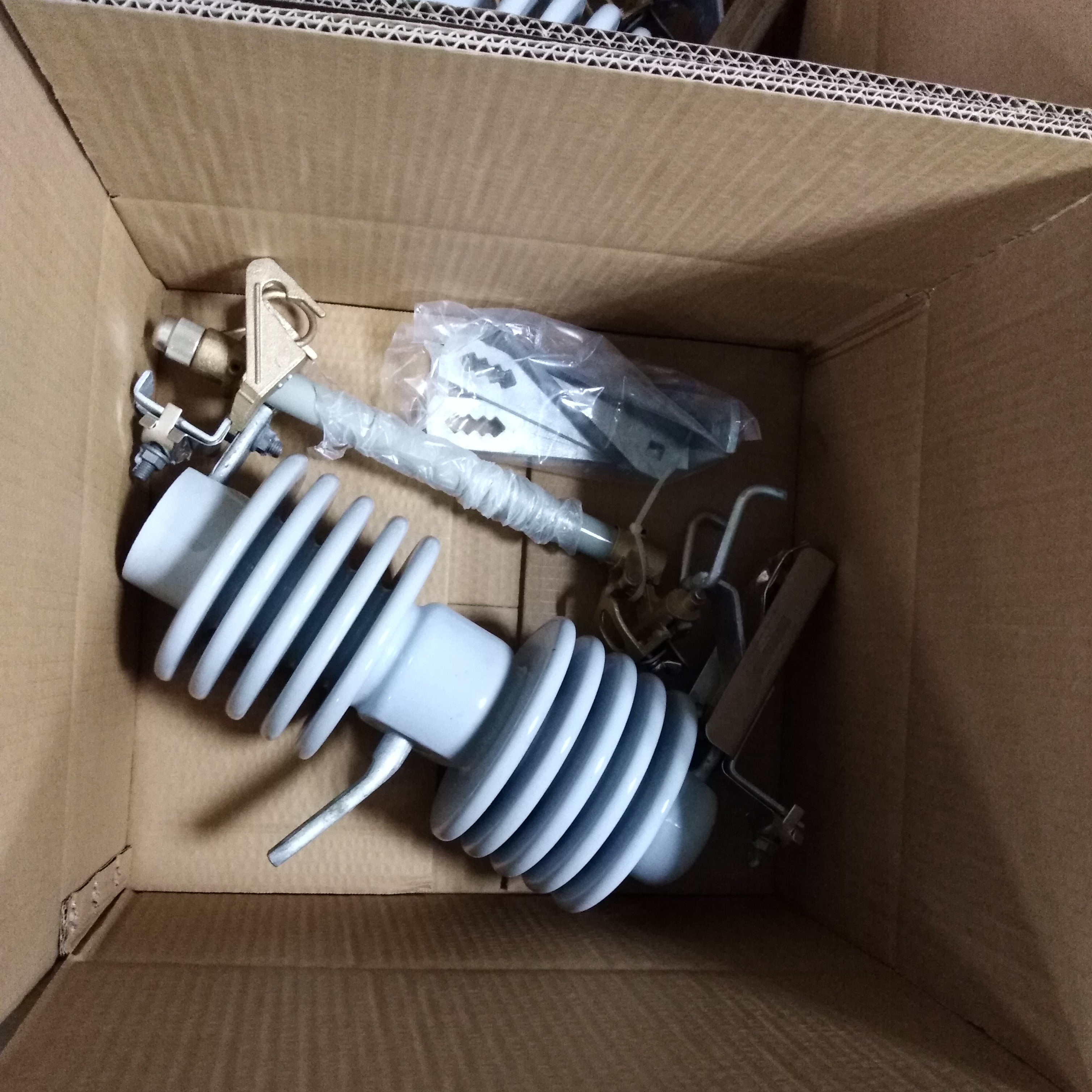

Drop-out fuse insulated bearing, static and dynamic contact, fuse tube composed of three parts. The static contact at both endsof the insulated bearing fuse also oxygen tube from the inner arc tube and the outer layer of phenolic paper tube or glass fiber
cloth tube composition.
Pull the load drop fuse elastic auxiliary contact and interrupter cover for the division and the load current. Drop-out fuse in
normal operation, the fuse tube to form a closed position with the fuse tension. When a system failure, the fault current to thefuse to fuse rapidly, in parallel into the arc, the arc tube arc bumning, decomposition of large amounts of gas within the tubeformed at high pressure and strong vertical blowing along the pipeline, electric household quickly pulled long extinguished.
Fuse blows, the lower part of the static contact to lose the tension and the next turn, so that the tightening of agency to releasethe fuse tube, fuse tube drop to the formation of the apparent breaking position. Opened the moving contact when the need topull the load, with insulating rod, take the inititive at this time, the static contact is still contact, insulating rod to pull the
contacts, auxiliary contacts separate arcing between his early, arc in the arc chute slit was stretched, the interrupter cover gasin the current zero, the arc will extinguish.
Drop-out fuse is applicable to the frequency of 50HZ, rated voltage of 35KV and below the power system, installed in thehigh pressure side of the distribution transformer or distribution of the trunk road. The main function of place to protect the
performance of less demanding, it can be used in conjunction with isolation switch, instead of the automatic air switch; can alsobe used in conjunction with the load switch, instead of the high cost of the circuit breaker. Also has short circuit protection,overload and circuit isolation.
Type | PD-24 | PD-24 |
Rated Voltage(kV) | 24 | 24 |
Rated current(A) | 100 | 200 |
Breaking current(A) | 10000 | 12,000 |
Impulse voltage(kV) | 150 | 150 |
Power frequency wihstand voltage(kV) | 65 | 65 |
Creepage distance(mm) | 540 | 540 |
Weight(kg) | 4.5 | 4.5 |
Dimensions(CM) | 51X34X11.5 | 51X34X11.5 |
