| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | PD-12/100 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiation |
| Packaging Details: | EXPORTING PACKAGE |
| Supply Ability: | 100 Piece/Pieces per Month |

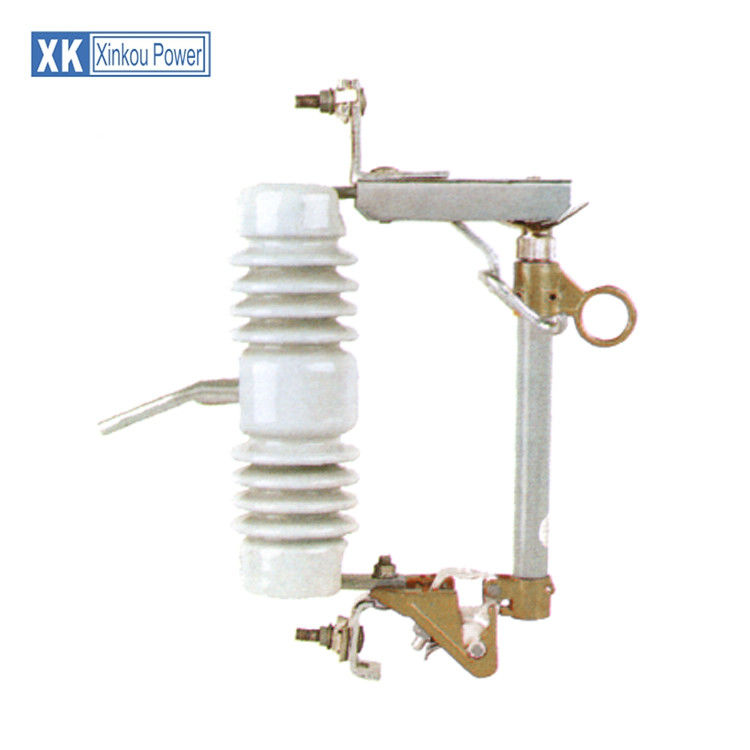

| Name: | S&C Fuse Cutout | Usage: | High Voltage |
|---|---|---|---|
| Breaking Capacity: | High | Safety Standards: | IEC |
| Standard: | GB1208-2006 | Rated Voltage: | 10-15KV |
| Rated Current: | 100A/200A | Product Keywords: | 11kv Drop Out Fuses |
| High Light: | 11 kv do fuse,300 amp cut out |
||
A fuse is a simple and highly effective way to protect a device from dangerous levels of current:
Current flowing through a conductor’s nonzero resistance leads to power dissipation.
Power is dissipated in the form of heat.
Heat raises the temperature of the conductor.
If the combination of current amplitude and duration is sufficient to raise the temperature above the fuse’s melting point, the fuse becomes an open circuit and current flow ceases.
Though the fundamental operation of a fuse is not complicated, there are subtle points to keep in mind. The rest of this article will help you to understand some important details related to the behavior and use of fuses.
| Type | PD-12/100 | PD-12/200 |
| Rated Voltage(kV) | 10-15 | 10-15 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12,000 |
| Impulse voltage(kV) | 110 | 110 |
| Power frequency wihstand voltage(kV) | 42 | 42 |
| Creepage distance(mm) | 250 | 250 |
| Weight(kg) | 7 | 7 |
| Dimensions(CM) | 38.5X34.5X10.5 | 38.5X34.5X10.5 |
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5.Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
