| Place of Origin: | CHINA |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | PD-24 |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | carton |
| Supply Ability: | 10000 pcs/month |
| Name: | 11kv Dropout Fuse Manufacturer | Rated Voltage (kV): | 10-15 |
|---|---|---|---|
| Rated Current (A): | 100,200 | Creepage Distance (mm): | 340 |
| Impulse Voltage (kV): | 170 | Power-frequency Withstand Voltage(kV): | 70 |
| High Light: | 300 amp cut out,cut out fuse holder |
||

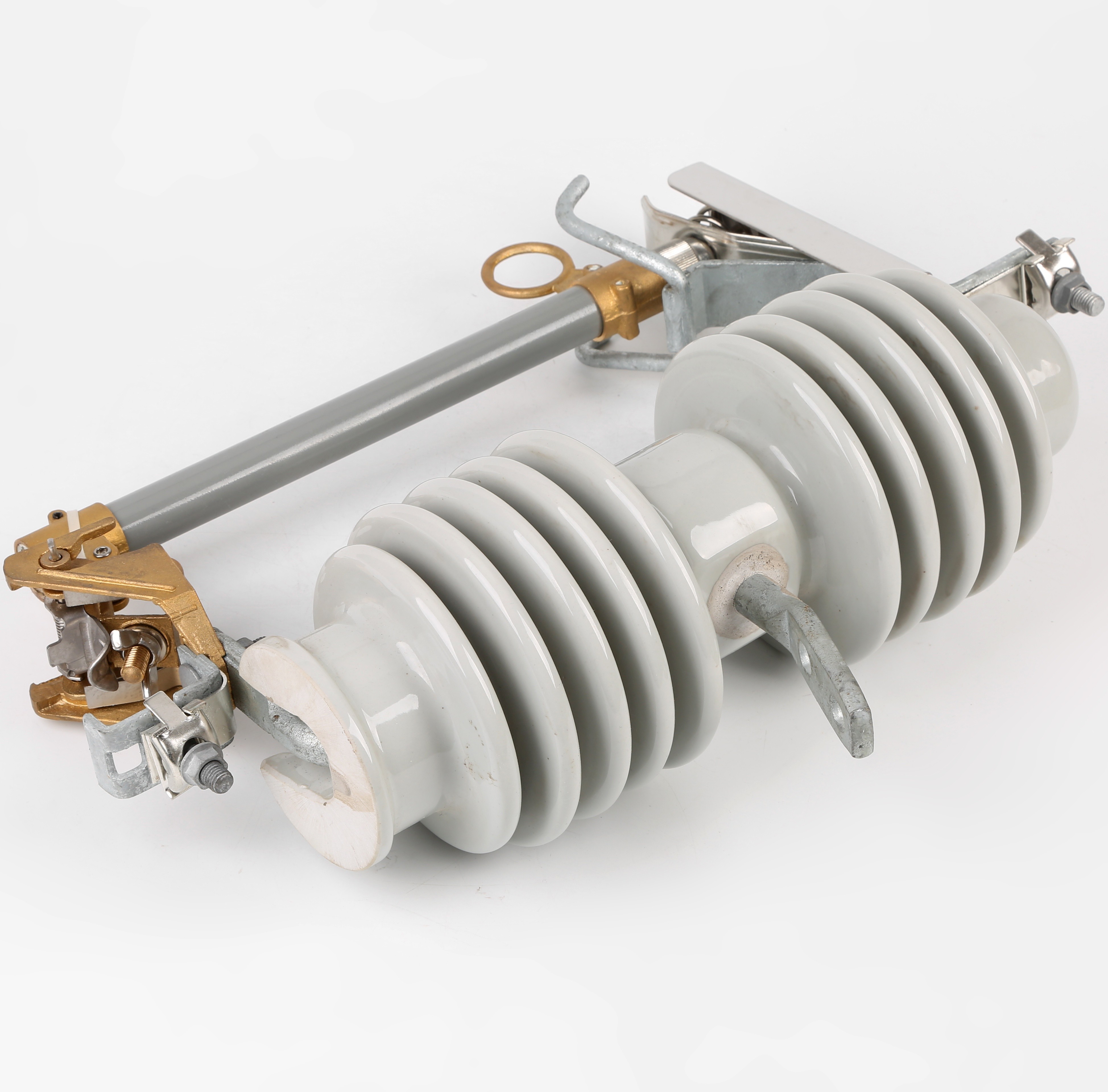

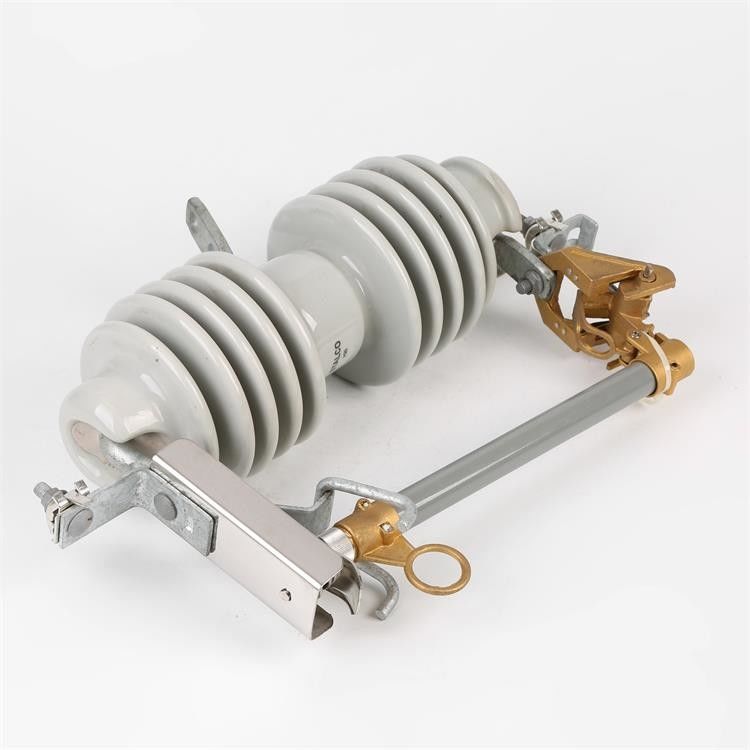

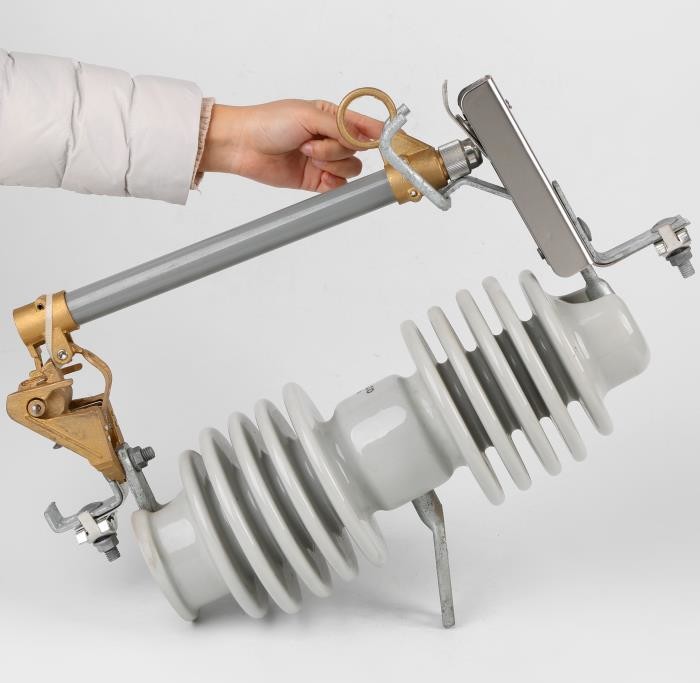

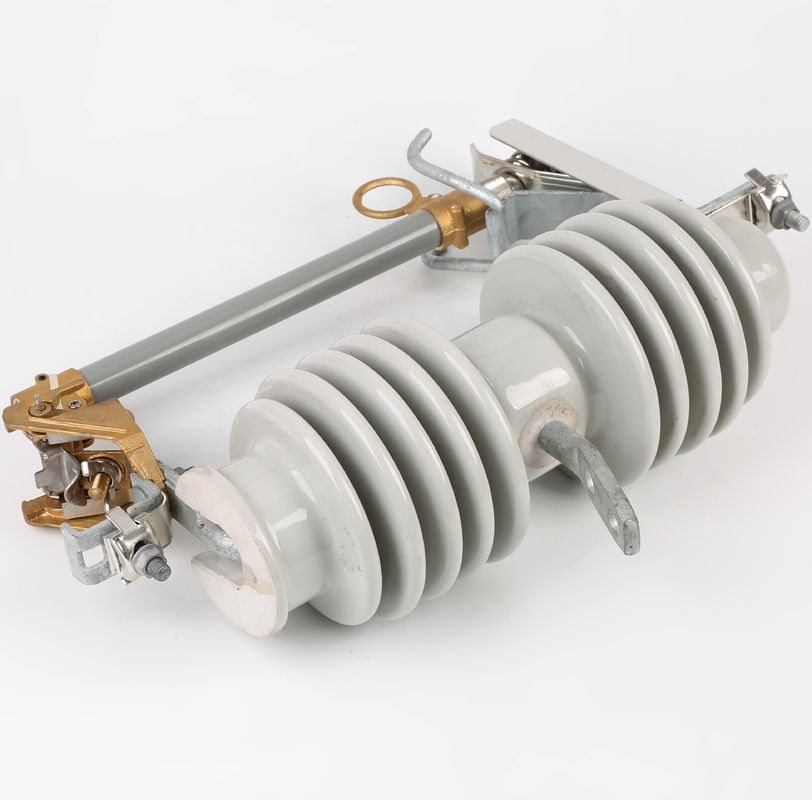

Porcelain drop out fuse in 11KV
General
1. Made of high quality material, it has long service life. The ferrules is made of pure copper strip. The fusion tube is made of high strength china. The extinguishing medium is made of pure quartz sand.
2. Easy installation and maintenance. The terminal of fusant contacting with the end-plate (or the connecting plate) use the technology of spot welding.
3. Safe indication. The fuse with the indicator can be show the fusing when the indicator pop-up.
4. Durable and reliable
Technical Parameters
| Type |
Rated voltage (kV) |
Rated current (A) |
Breaking current (A) |
Impulse voltage (kV) |
Power-frequency withstand voltage(kV) |
Creepage distance (mm) |
| PD-24/100 | 10-15 | 100 | 10000 | 170 | 70 | 340 |
| PD-24/200 | 10-15 | 200 | 12000 | 170 | 70 | 340 |
