400A Drop Out Fuse Cutout

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: PD11-400
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: EXPORTING PACKING
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Name: Polymer Fuse Cutout Breaking Capacity: High
Safety Standards: IEC Usage: High Voltage
Standard: GBJ, JB,IEC Rated Current: 400A
Rated Voltage: 11KV Mechanical Life: 10000
High Light:

400A Drop Out Fuse Cutout

,

11KV Drop Out Fuse Cutout

,

poloymer fuse cut out

High Voltage 400A 11KV Drop Out Fuse Cutout in poloymer material

Product Description





How a Fuse Is Tripped: Heat, Not Current
A fuse is not tripped directly by current; rather, the current creates heat, and heat trips the fuse. This is actually a rather important distinction because it means that fuse operation is influenced by ambient temperature and by the temporal characteristics of the current.

The specified current rating of a fuse is relevant only to a specific ambient temperature (usually, or maybe always, 25°C), and consequently you need to adjust your fuse selection if you’re designing a device that will operate outdoors in, say, Antarctica or Death Valley.





Type Unit PD-12/100 PD-12/200
Rated voltage KV 10—15 10—15
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 110 110
Power frequency withstand volatage KV 42 42
Creepage distance MM 250 250
Weight KG 7 7
Dimensions CM 38.5×34.5×10.5 38.5×34.5×10.5

Type Unit PD-15 PD-15
Rated voltage KV 15-27 15-27
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 125 125
Power frequency withstand volatage KV 45 45
Creepage distance MM 355 355
Weight KG 8.8 8.8
Dimensions CM 51.5×34×12 51.5×34×12

Type Unit PD-24 PD-24
Rated voltage KV 24-27 24-27
Rated current A 100 200
Breaking current A 8000 10000
lmpulse voltage KV 150 150
Power frequency withstand volatage KV 65 65
Creepage distance MM 505 505
Weight KG 12 12

Type Unit PD-11 PD-11
Rated voltage KV 24 24
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 150 150
Power frequency withstand volatage KV 65 65
Creepage distance MM 540 540
Weight KG 4.5 4.5
Dimensions CM 51×34×11.5 51×34×11.5

Type Unit PD-12 PD-12
Rated voltage KV 15 15
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 110 110
Power frequency withstand volatage KV 45 45
Creepage distance MM 245 245
Weight KG 3.8 3.8
Dimensions CM 45×34×11.5 45×34×11.5

Type Unit PD-13 PD-13
Rated voltage KV 33 33
Rated current A 100 200
Breaking current A 6000 8000
lmpulse voltage KV 170 170
Power frequency withstand volatage KV 70 70
Creepage distance MM 660 660
Weight KG 15 15
Dimensions CM 56×38×11.5 56×38×14.5

Type Unit PD-36/100 PD-36/200
Rated voltage KV 36 36
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 170 170
Power frequency withstand volatage KV 70 70
Creepage distance MM 720 720
Weight KG 5 5
Dimensions CM 61×34×11.5 61×34×11.5

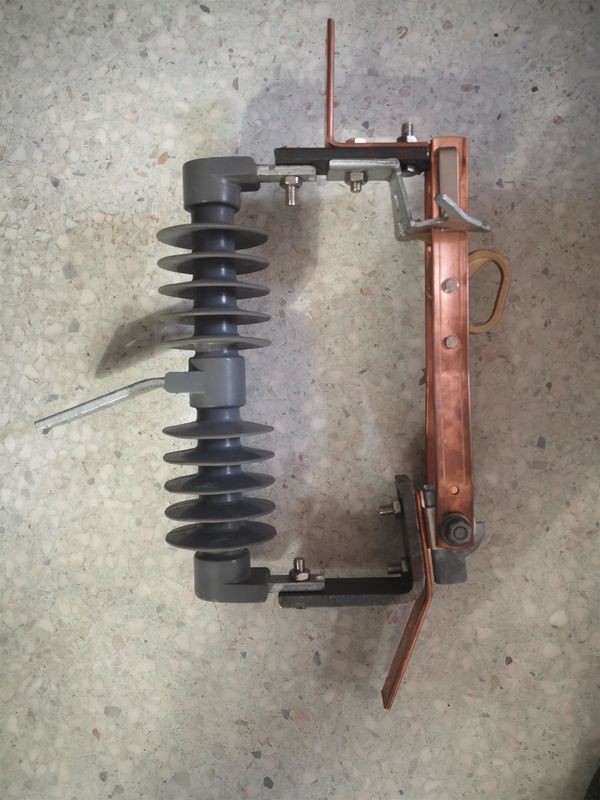

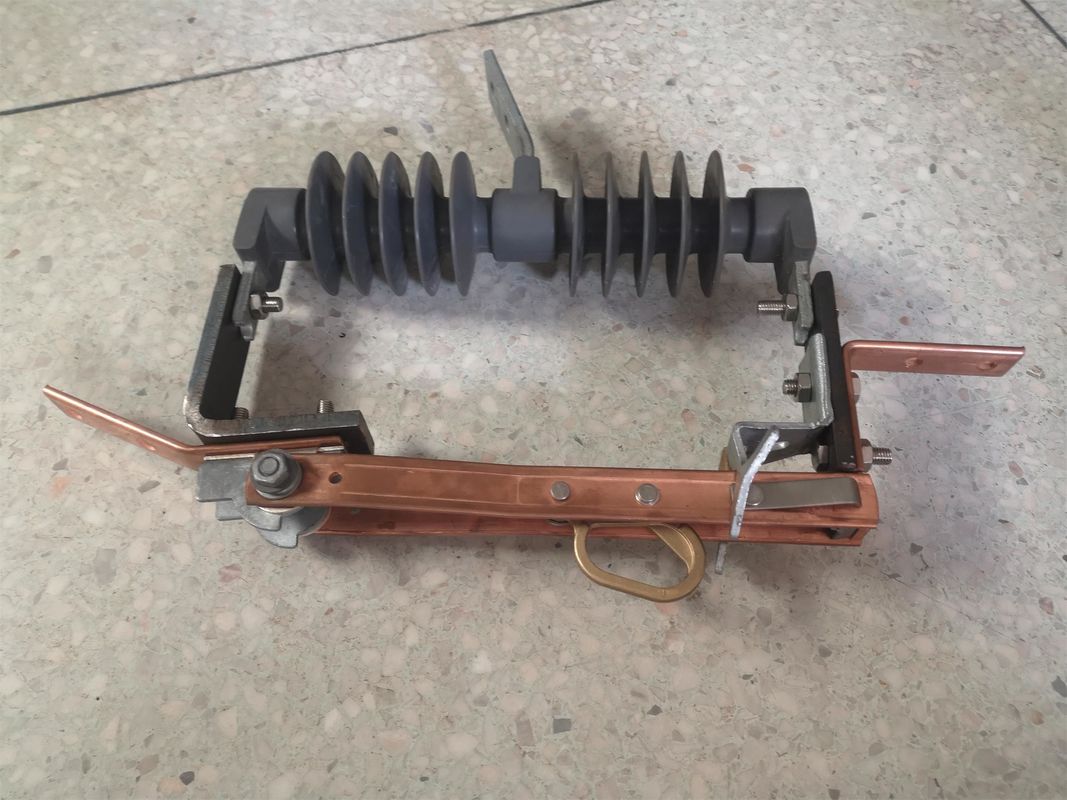

400A Drop Out Fuse Cutout 0400A Drop Out Fuse Cutout 1
