Arc Extinquishing Chamber 27kv Porcelain Fuse Cut Out

Basic Information
Place of Origin: CHINA
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: RW24F-100A
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: carton
Supply Ability: 10000 pcs/month
Name: 100 Amp Cut Out Rated Voltage (kV): 24-27KV
Impulse Voltage (kV): 150 Power-frequency Withstand Voltage(kV): 65
Creepage Distance (mm): 540 Rated Current (A): 100,200
High Light:

27kv Porcelain Fuse Cut Out

,

100Amp Porcelain Fuse Cut Out

,

IEC Porcelain Fuse Cut Out

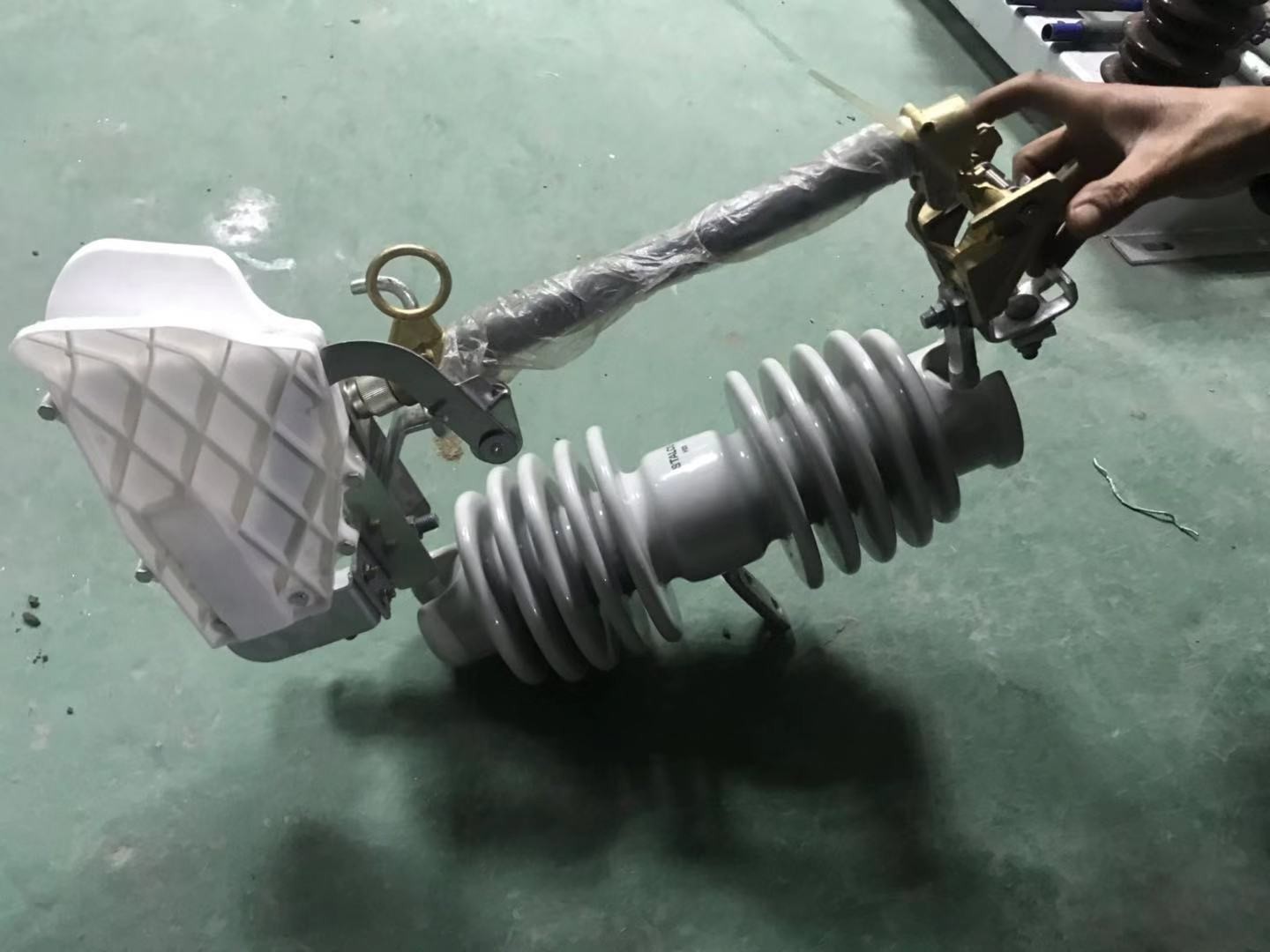

IEC standard high voltage 24kv 27kv Porcelain fuse cut out with arc-extinquishing chamber



Porcelain drop out fuse in 11KV

On blowing of fuse element, the fuse carrier hangs down vertically from the bottom contact. This is advantageous locating the fault as hanging fuse carrier is noticeable from distance and this save times which otherwise would be taken in investigation.
Lift out the fuse carrier by means of the insulated operating rod, rewire the fuse element and swing it up the carrier and thus remake the circuit.

General
1. Made of high quality material, it has long service life. The ferrules is made of pure copper strip. The fusion tube is made of high strength china. The extinguishing medium is made of pure quartz sand.
2. Easy installation and maintenance. The terminal of fusant contacting with the end-plate (or the connecting plate) use the technology of spot welding.
3. Safe indication. The fuse with the indicator can be show the fusing when the indicator pop-up.
4. Durable and reliable



Technical Parameters

TYPE RATED VOLTAGE RATED CURRENT BREAKING CURRENT IMPULSE VOLTAGE power frequency
withstand voltage(KV)
CREEPAGE
RW12-12F/100 12kV 100A 6.3kA 110kV 42kV 220mm
RW12-12F/200 12kV 200A 8kA 110kV 42kV 220mm
RW12-15F/100 15kV 100A 6.3kA 125kV 45kV 320mm
RW12-15F/200 15kV 200A 8kA 125kV 45kV 320mm
RW12-24F/100 24kV 100A 6.3kA 150kV 65kV 520mm
RW12-24F/200 24kV 200A 8kA 150kV 65kV 520mm
RW12-33F/100 33kV 100A 6.3kA 170kV 70kV 660mm
RW12-33F/200 33kV 200A 8kA 170kV 70kV 660mm
RW12-36F/100 36kV 100A 6.3kA 170kV 70kV 720mm
RW12-36F/200 36kV 200A 8kA 170kV 70kV 720mm





Packaging & Delivery
Packaging Details
In carton and export standard packing
QTY: 3 pcs
N.W: 15.9 kgs
G.W: 17.2 kgs
MEAS: 42*32.5*34.5 cm
Port
Ningbo or Shanghai
Lead Time :
Quantity(Pieces) 1 - 300 301 - 900 >900
Est. Time(days) 10 12 To be negotiated
