| Place of Origin: | CHINA |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Model Number: | PD-11 |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiation |
| Packaging Details: | carton |
| Supply Ability: | 10000 pcs/month |
| Name: | 11kv Dropout Fuse Manufacturer | Rated Voltage (kV): | 10-15 |
|---|---|---|---|
| Impulse Voltage (kV): | 170 | Power-frequency Withstand Voltage(kV): | 70 |
| Creepage Distance (mm): | 340 | Rated Current (A): | 100,200 |
| High Light: | 11 kv do fuse,300 amp cut out |
||

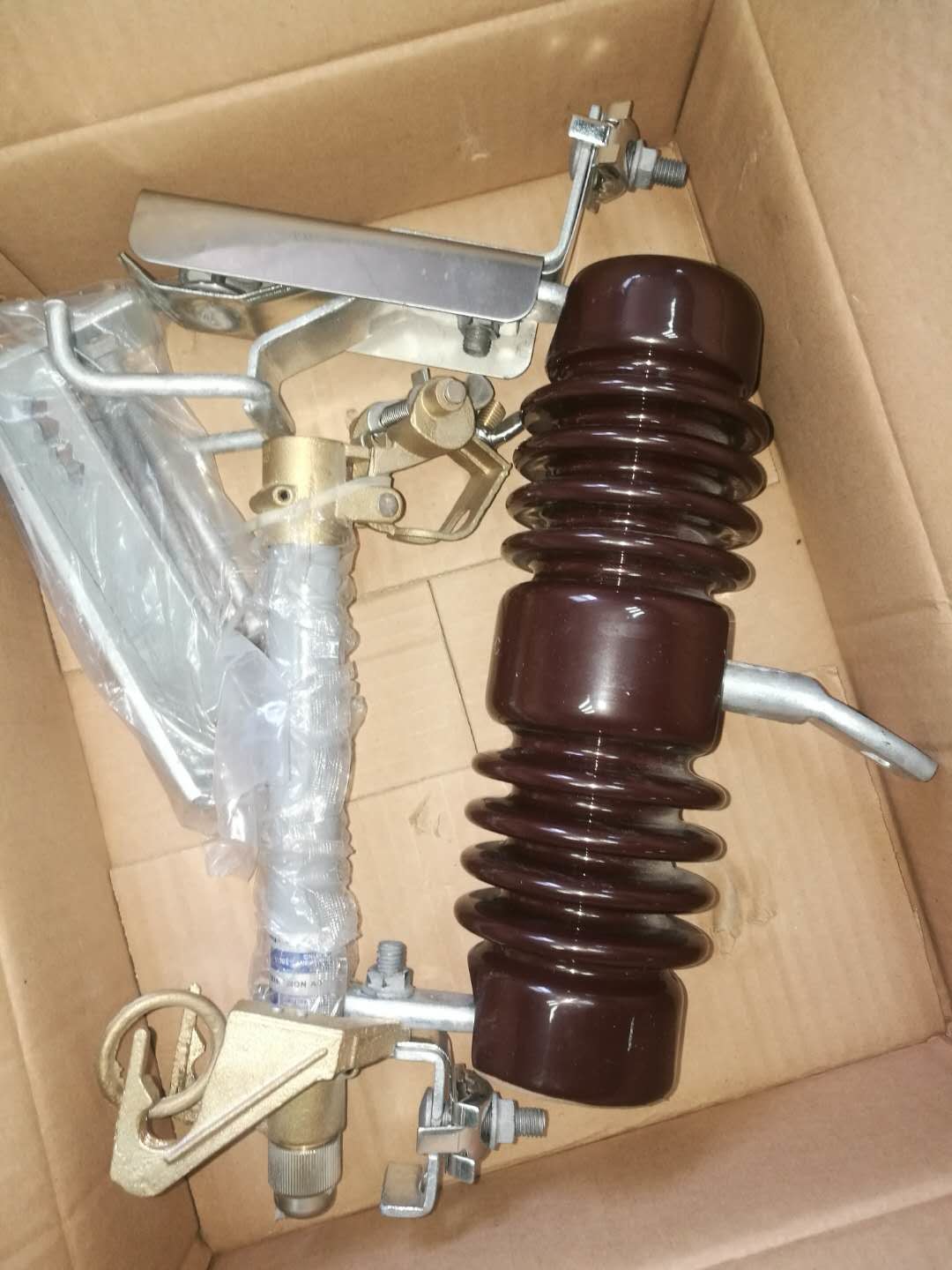

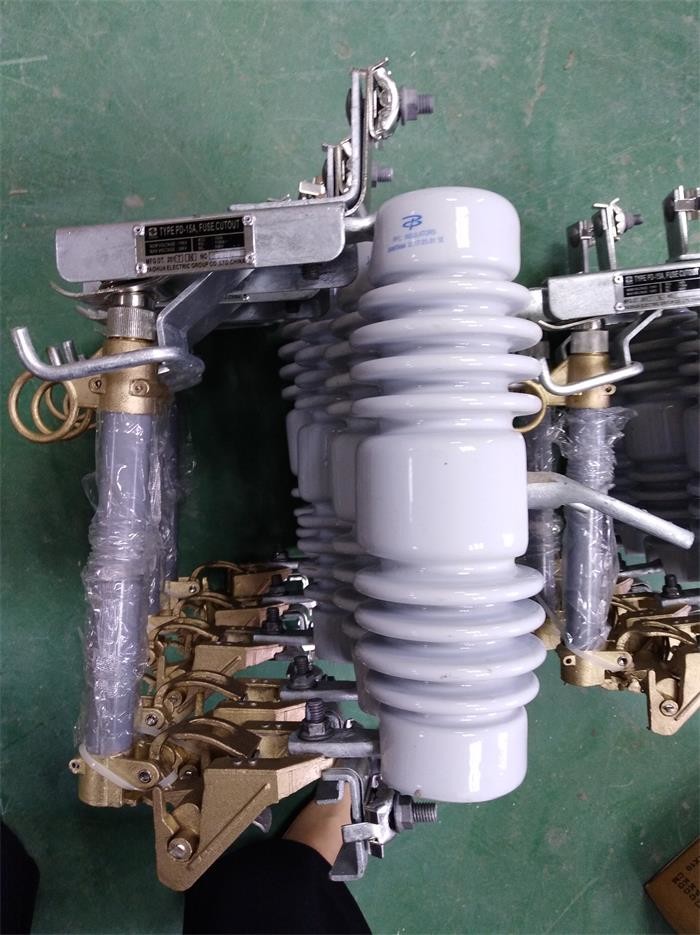

Porcelain drop out fuse in 11KV
drop-fuse structure and working principle
drop-out High voltage fuse mounting plate is fixed in the middle of the support insulator. Support the insulator has the upper and lower terminals for the connection wire. Upper and lower terminals attached to the upper and lower static contact. The fuse tube is made of phenolic paper tube or laminated glass cloth tube, lined with arc-extinguishing tube; both ends are equipped with upper and lower moving contact, after the fuse penetrates the fuse tube, using the tension of the fuse, , Move the contact taut so that the fuse remains closed.
When operating. Insert the lower moving contact of the fuse tube into the lower terminal with the high voltage insulated rod and make it come into contact with the lower stationary contact, then insert the pull hook of the high voltage insulated rod into the operating ring of the fuse tube to drive the fuse tube The upper moving contact pushed into the terminal, contact with the static contact, the circuit connected.
After the fuse is blown The upper and lower movable contact of the fuse tube loses the tension and loosens, the movable contact slides downward under the action of the spring, the fuse tube falls by its own weight, the fuse is in the disconnected state, and the obvious fracture occurs
When a line or device fails. The fault current causes the fuse to fuse quickly and create an arc. Arc extinguishing tube produces a lot of gas under the action of the electric arc, so that the tube to form a great pressure, the gas jet out at high speed, this powerful air flow, the arc quickly elongated and extinguished.
General
1. Made of high quality material, it has long service life. The ferrules is made of pure copper strip. The fusion tube is made of high strength china. The extinguishing medium is made of pure quartz sand.
2. Easy installation and maintenance. The terminal of fusant contacting with the end-plate (or the connecting plate) use the technology of spot welding.
3. Safe indication. The fuse with the indicator can be show the fusing when the indicator pop-up.
4. Durable and reliable
Technical Parameters
| Type |
Rated voltage (kV) |
Rated current (A) |
Breaking current (A) |
Impulse voltage (kV) |
Power-frequency withstand voltage(kV) |
Creepage distance (mm) |
| PD-12/100 | 10-15 | 100 | 10000 | 170 | 70 | 340 |
| PD-12/200 | 10-15 | 200 | 12000 | 170 | 70 | 340 |
Product Description
