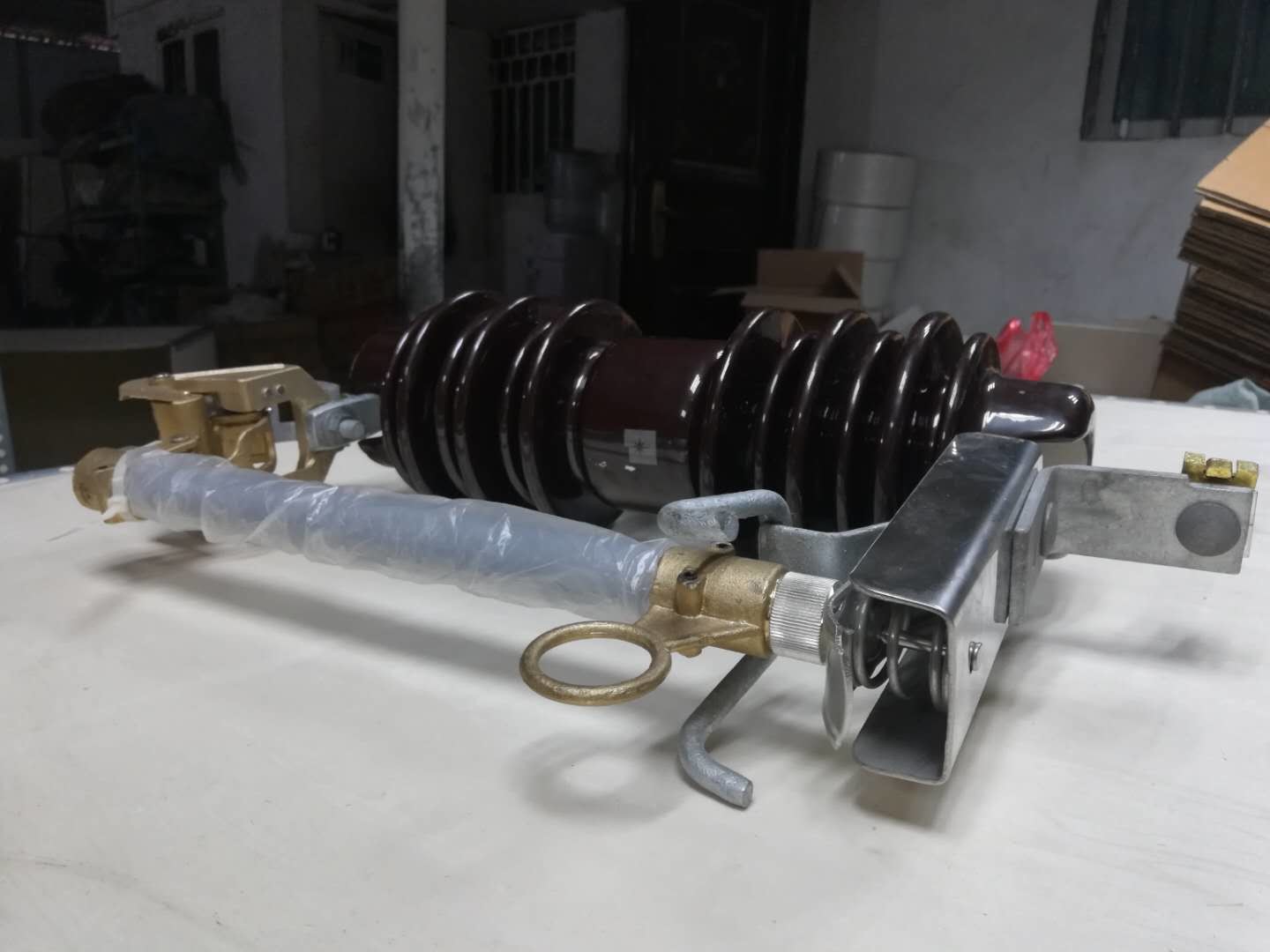

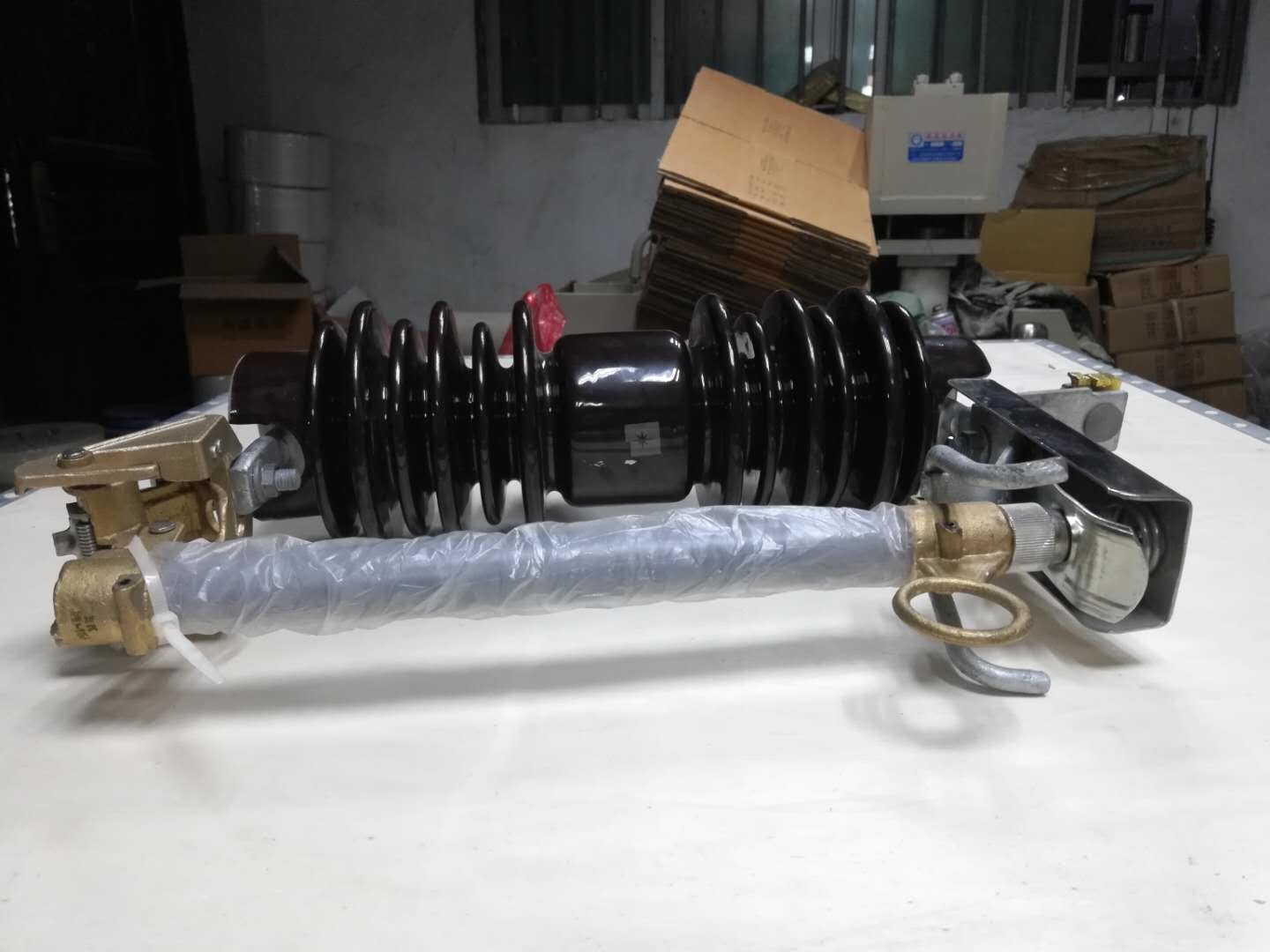

Vertical Mounting Drop Out 36kV Porcelain Fuse Cutout

Basic Information
Place of Origin: china
Brand Name: XK
Certification: ISO, TYPE TEST REPORT
Model Number: 27KV DOFC
Minimum Order Quantity: 300 - 999 Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKAGE
Supply Ability: 100 Piece/Pieces per Month
Keywords: 27kv Do Fuse Standard: IEC GB
Rated Voltage: 27kv Mechanical Life: 10000
Rated Current: 100A/200A Port: NINGBO
High Light:

36kV Porcelain Fuse Cutout

,

Drop Out Porcelain Fuse Cutout

,

IEC Drop Out Fuse Cutout

27kv drop out fuse cutout high voltage fuse



Product Description

Drop out fuses for protection in distribution & transmission line are manufactured by us.


Drop out fuse cutout and load witching fuse cutout are outdoor high voltage protective device, to be conntected with incoming feeder of distrubution, transformer or distribution lines. It mainly protect transformer or lines from short circuit and overload and on/off loading current.



The main characteristics of Drop-out fuses are as under:
Available ratings : 11,12, 15,17,18,20,24,27,33 & 36kV.
Current rating : 100A,200A.
Vertical mounting type
Confirms IS: IEC
After removing the fuse barrel by an operating pole, fuse wire can be replaced.





Type PD 27-100A PD 27-200A
Rated Voltage(kV) 27 27
Rated current(A) 100 200
Breaking current(A) 10000 12000
Impulse voltage(kV) 150 150
Power frequency wihstand voltage(kV) 65 65
Creepage distance 540 540
Packing Dimensions(CM) 45*39*15 45*39*15

11kv drop out fuseVertical Mounting Drop Out 36kV Porcelain Fuse Cutout 0 cutout high voltage fuse for microwave oven microwave high voltage fus

FAQ

Vertical Mounting Drop Out 36kV Porcelain Fuse Cutout 1

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
