| Place of Origin: | CHINA |
|---|---|
| Brand Name: | XK |
| Certification: | ISO9001 / GB / IEC |
| Minimum Order Quantity: | 300 - 999 Pieces |
| Price: | Negotiation |
| Packaging Details: | EXPORTING PACKAGE |
| Supply Ability: | 100 Piece/Pieces per Month |
| Usage: | High Voltage | Breaking Capacity: | High |
|---|---|---|---|
| Safety Standards: | IEC | Standard: | IEC282 |
| Fuse Cutout Attachment: | Fuse Tube And Fuse Link | Fuse Tube Material: | Fiber Glass |
| OEM Production: | Accept | Port: | NINGBO |
| High Light: | main cut out fuse,100 amp cut out fuse |
||

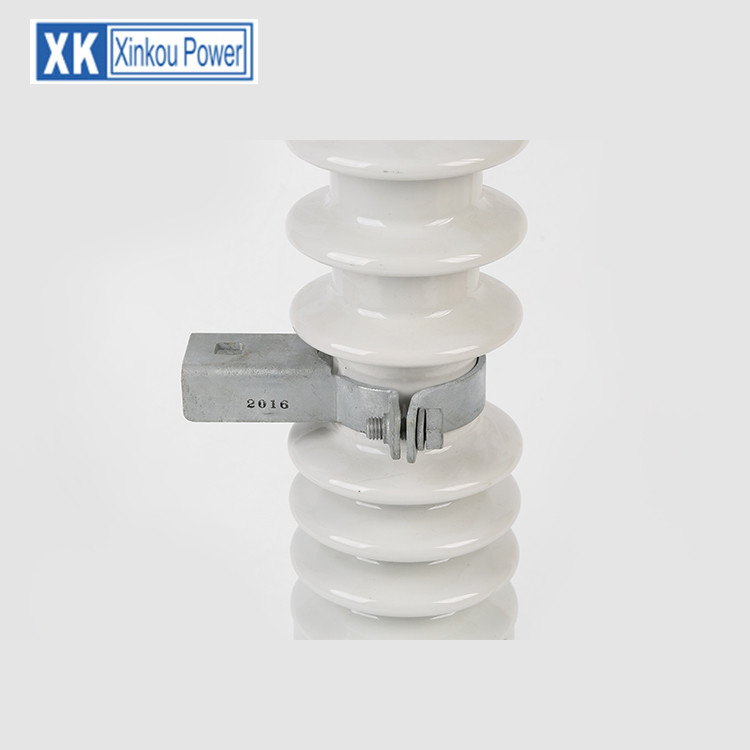

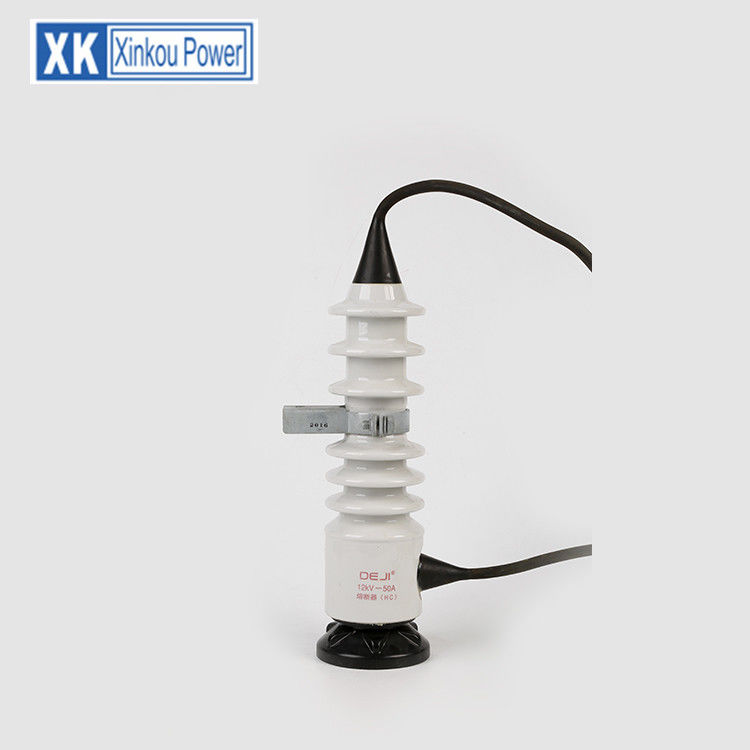

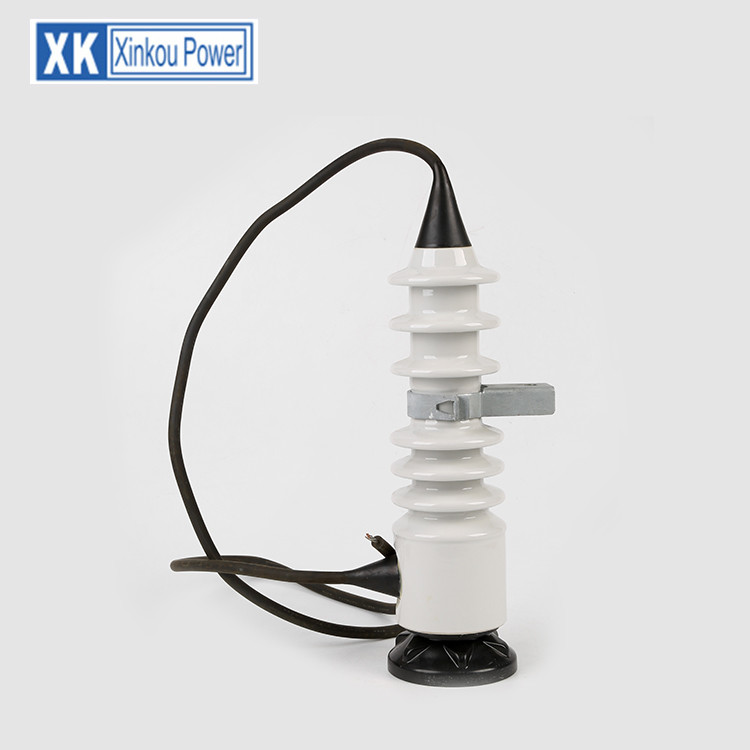

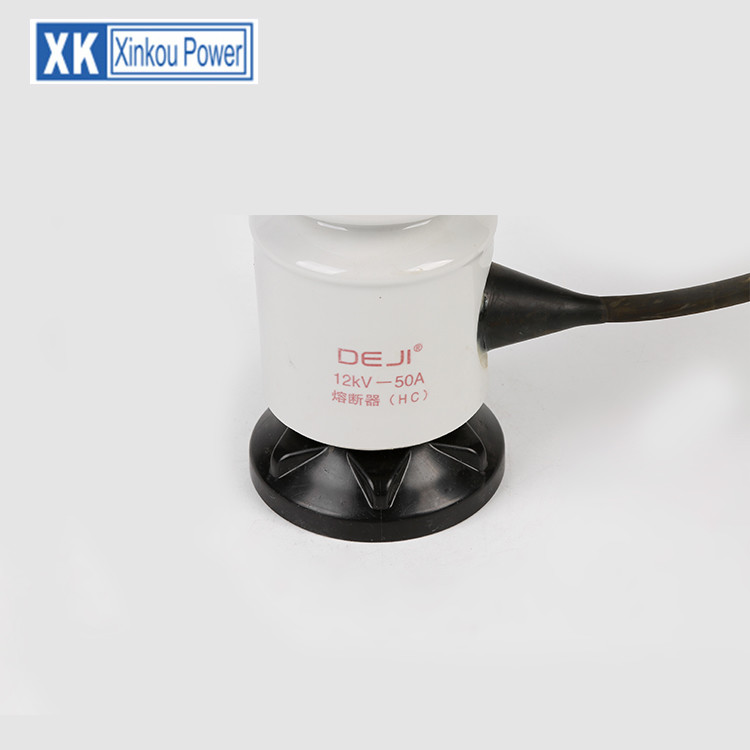

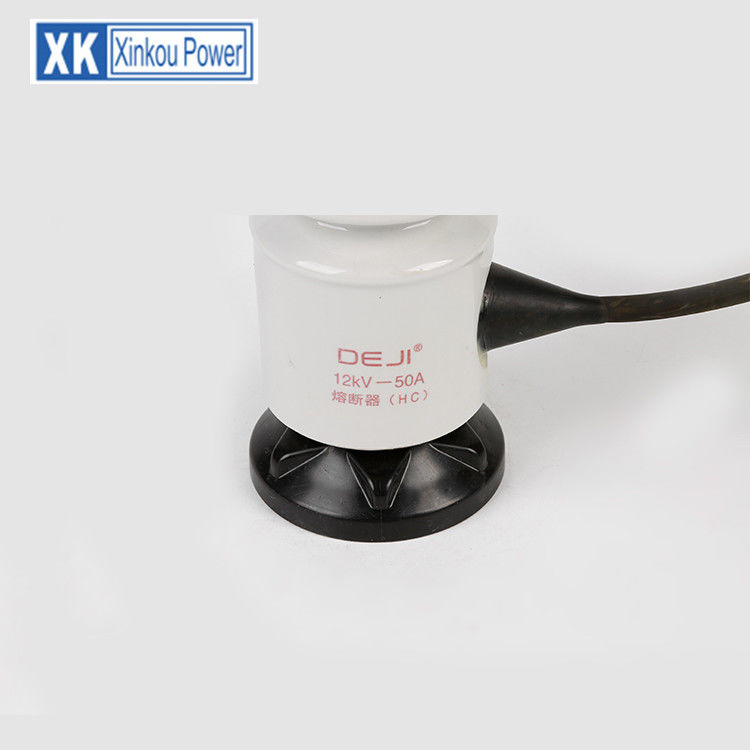

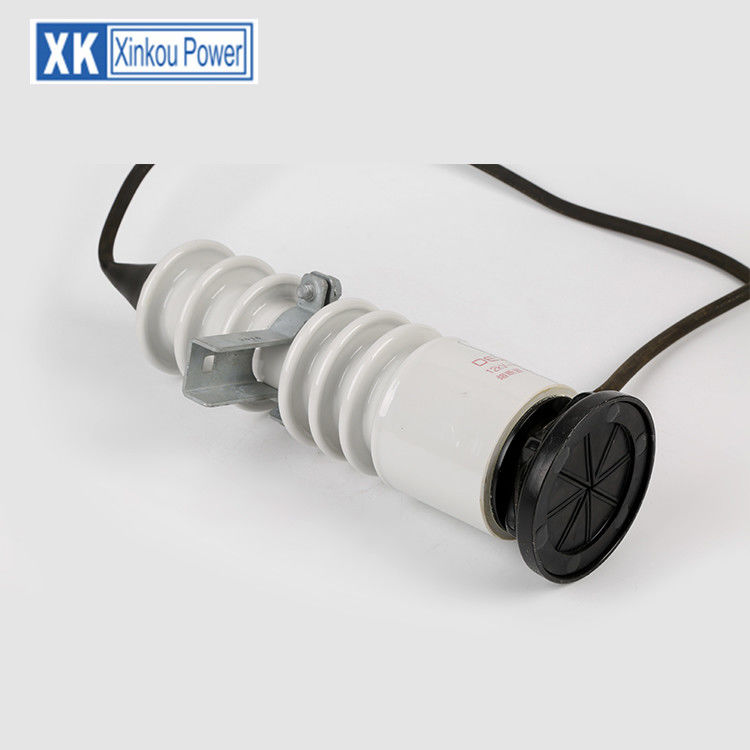

XK hot protected cut-out enclosed type fuse
The fuseholder includes a current limiting fuse mounted within a fuse body and a lower contact and hinge assembly. The fuse body has contact assemblies mounted on each end thereof. The lower contact assembly on the fuse body is mounted on a hinge which is rotatably supported on an interchangeable cutout mounting. The current limiting fuse includes a fuse element spirally wound around a spider which extends the length of the fuse body. The fuse element includes a high current fusible element and a low current fuse element. The fusible element includes a plurality of spaced reduced areas and is supported on the spider by support surfaces which are located between adjacent reduced areas of the fusible element. An auxiliary wire also extends the length of the fuse body about the spider. The hinge includes a hinge member rotatably mounted on the interchangeable cutout mounting, a connective member supporting the contact assemblies and fuse body with current limiting fuse, and a latch for latching the hinge member to the connective member in a contracted position. The latch is connected to a trigger wire attached to the lower end of the auxiliary wire to maintain the hinge and connective members in their contracted position. Upon the melting of the trigger wire due to a current overload, the trigger wire releases the latch thereby allowing the connective member to move to an extended position with respect to the hinge member such that the current limiting fuse drops out of the interchangeable cutout mounting.
| Parameter | Unit | |
| Rated Voltage | 12 | KV |
| Rated frequency | 50 | HZ |
| Fuse Base rated current | 100 | A |
| Fuse rated current | 6,10,15,20,25,30,40,50,65,75,80,100 | A |
| Rated breaking current | 12.5 | KA |
| Mechanical stability | 500 | Times |
| Insulation class | B | Class |
INTRODUCTION
Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise specializing in developping, design, manufacture, sales, import and export of low voltage and high voltage electrical products.
Company main products: indoor and outdoor high voltage vacuum circuit breaker, load break switches, disconnecting switches, drop out fuse cutour, lightning arrester, etc. All products comply with the requirements of GB, IEC, ANSI and other international standard.
SERVICE
We have a very professional sales team which can offer you the best service and answer you very professional questions, so you can feel very comfortable before you buy machine from us. As is known to all of us, after-sale service is the most important to all industries. Our company has been trying our best to build a very professional and high-caliber after-sale service team which can solve all problems efficiently in the future.
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
