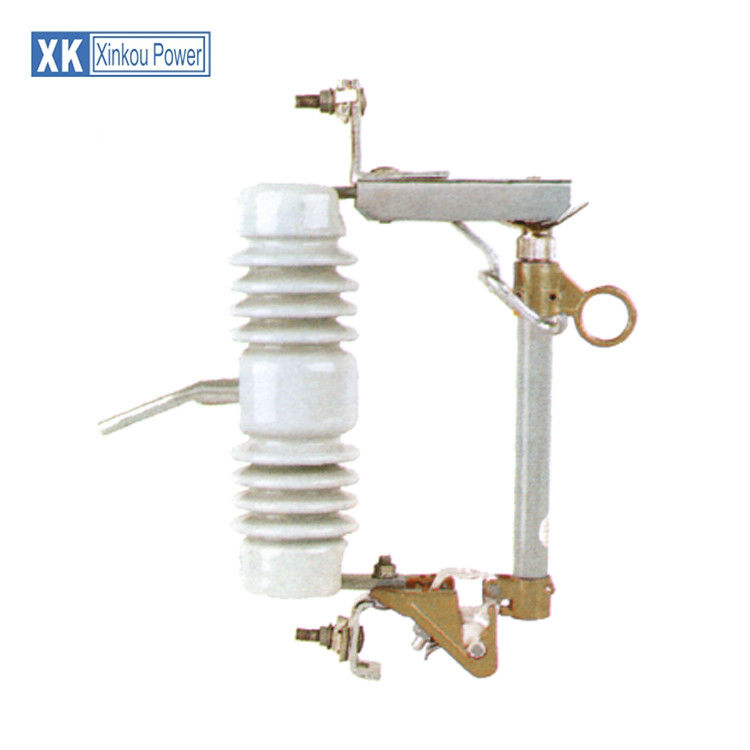

Safety 33kv Drop Out Fuse 10 - 15KV Range Rated Voltage Can Be Available

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: PD-12/100
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKAGE
Supply Ability: 100 Piece/Pieces per Month
Product Keywords: Expulsion Drop Out Fuse Safety Standards: IEC
Standard: GB1208-2006 Rated Voltage: 10-15KV
Rated Current: 100A/200A Port: NINGBO
High Light:

fuse link cut out

,

fused cutout switch

Best selling 33kv dropout fuse with good price


Product Description


How do they work?
A current surge from a customer circuit or a transformer will cause the fuse inside the tube to expand and melt. Once the fuse reaches maximum current capacity it breaks and this energy is thrown out of the bottom of the tube and disconnects the transformer from the line by the tube dropping out of the upper contact and swinging down on the hinge. The physical indication that the fuse has been extinguished and needs to be replaced is seen when the tube swings open and remains in a downward orientation.

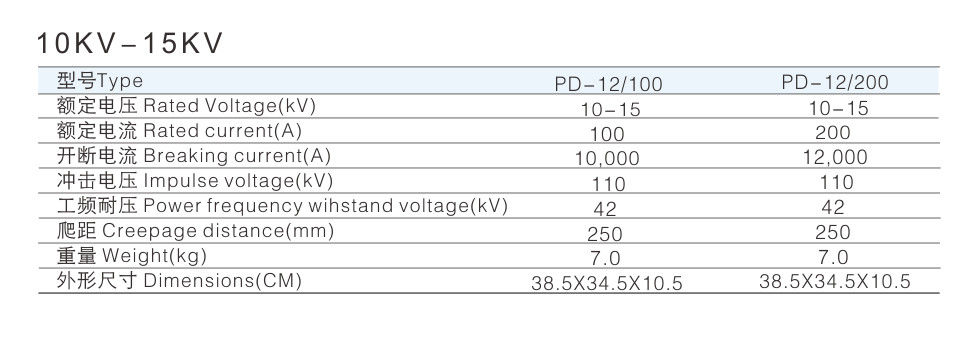

Type PD-12/100 PD-12/200
 Rated Voltage(kV) 10-15 10-15
 Rated current(A) 100 200
 Breaking current(A) 10000 12,000
Impulse voltage(kV) 110 110
 Power frequency wihstand voltage(kV) 42 42
 Creepage distance(mm) 250 250
 Weight(kg) 7 7
Dimensions(CM) 38.5X34.5X10.5 38.5X34.5X10.5



Safety 33kv Drop Out Fuse 10 - 15KV Range Rated Voltage Can Be Available 0



Company Information

Safety 33kv Drop Out Fuse 10 - 15KV Range Rated Voltage Can Be Available 1


FAQ

Safety 33kv Drop Out Fuse 10 - 15KV Range Rated Voltage Can Be Available 2

Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
