High Voltage 33kv Drop Out Fuse Fuse For Transformer 10000 Mechanical Life

Basic Information
Place of Origin: Zhejiang, China
Brand Name: XK
Certification: ISO9001 / GB / IEC
Model Number: 33KV DOFC-2073
Minimum Order Quantity: 99 - 299 Pieces
Price: Negotiation
Packaging Details: EXPORTING PACKING
Supply Ability: 3000 Piece/Pieces per Month
Keywords: 33 Kv Dropout Fuse Cut Out Safety Standards: IEC
Standard: GBJ, JB,IEC Rated Current: 100A,200A
Rated Voltage: 33-36KV Mechanical Life: 10000
Port: NINGBO
High Light:

fuse link cut out

,

fused cutout switch

33 kv dropout fuse cut out high voltage fuse for transformer

High quality H.V. DOFC series safety high-voltage fuse

Product Description

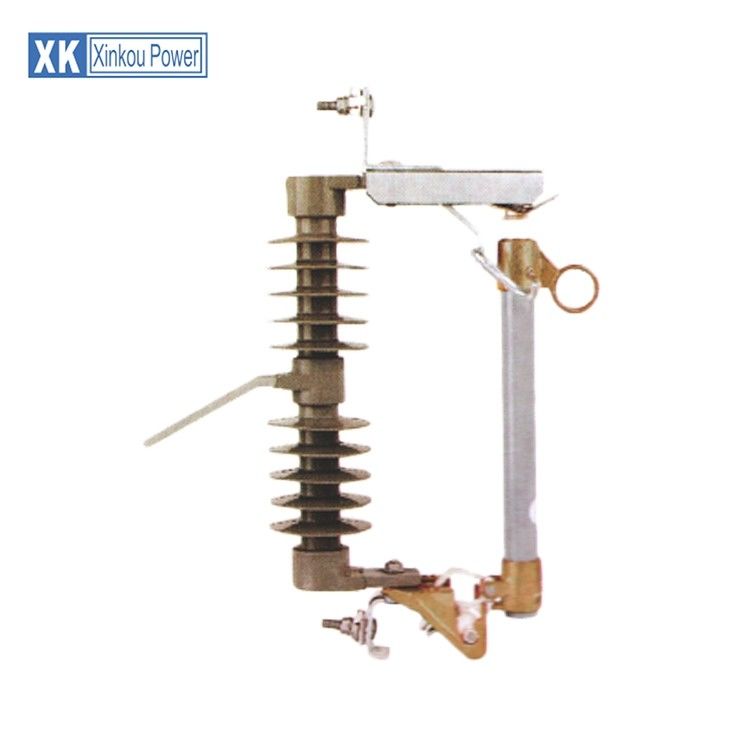

   High Voltage 33kv Drop Out Fuse Fuse For Transformer 10000 Mechanical Life 0




We have concentrated our endeavors to fabricate premium quality range of Drop Out Fuses. These are available in different specifications based on the requirements of our clients. We are recognized as a reputed Drop Out Fuse Manufacturer and Supplier of the industry. The High Voltage Dropout Fuses are widely used for fault protection in distribution system, rural electrification, and various industrial units that have medium voltage connections both as primary & secondary back-ups. These Drop Out Fuses should operate before connected equipment i.e. transformer gets damaged. Further, the product range is upgraded/updated time to time in sync with the technological advancements.





Type Unit PD-12/100 PD-12/200
Rated voltage KV 10—15 10—15
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 110 110
Power frequency withstand volatage KV 42 42
Creepage distance MM 250 250
Weight KG 7 7
Dimensions CM 38.5×34.5×10.5 38.5×34.5×10.5

33 kv dropout fuse cut out high voltage fuse for transformer


Type Unit PD-15 PD-15
Rated voltage KV 15-27 15-27
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 125 125
Power frequency withstand volatage KV 45 45
Creepage distance MM 355 355
Weight KG 8.8 8.8
Dimensions CM 51.5×34×12 51.5×34×12

33 kv dropout fuse cut out high voltage fuse for transformer


Type Unit PD-24 PD-24
Rated voltage KV 24-27 24-27
Rated current A 100 200
Breaking current A 8000 10000
lmpulse voltage KV 150 150
Power frequency withstand volatage KV 65 65
Creepage distance MM 505 505
Weight KG 12 12

33 kv dropout fuse cut out high voltage fuse for transformer


Type Unit PD-11 PD-11
Rated voltage KV 24 24
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 150 150
Power frequency withstand volatage KV 65 65
Creepage distance MM 540 540
Weight KG 4.5 4.5
Dimensions CM 51×34×11.5 51×34×11.5

33 kv dropout fuse cut out high voltage fuse for transformer


Type Unit PD-12 PD-12
Rated voltage KV 15 15
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 110 110
Power frequency withstand volatage KV 45 45
Creepage distance MM 245 245
Weight KG 3.8 3.8
Dimensions CM 45×34×11.5 45×34×11.5

33 kv dropout fuse cut out high voltage fuse for transformer


Type Unit PD-13 PD-13
Rated voltage KV 33 33
Rated current A 100 200
Breaking current A 6000 8000
lmpulse voltage KV 170 170
Power frequency withstand volatage KV 70 70
Creepage distance MM 660 660
Weight KG 15 15
Dimensions CM 56×38×11.5 56×38×14.5

33 kv dropout fuse cut out high voltage fuse for transformer


Type Unit PD-36/100 PD-36/200
Rated voltage KV 36 36
Rated current A 100 200
Breaking current A 10000 12000
lmpulse voltage KV 170 170
Power frequency withstand volatage KV 70 70
Creepage distance MM 720 720
Weight KG 5 5
Dimensions CM 61×34×11.5 61×34×11.5

33 kv dropout fuse cut out high voltage fuse for transformer

High Voltage 33kv Drop Out Fuse Fuse For Transformer 10000 Mechanical Life 1High Voltage 33kv Drop Out Fuse Fuse For Transformer 10000 Mechanical Life 2
